Double-sided magnetic knife stand
An arched black walnut slab, 300mm wide and 420mm tall, glued up from two boards with the grain running across, tenoned upright into a heavy walnut foot, with rows of rare-earth magnets hidden 3mm under both faces. It holds a dozen knives of any length on two sides in a 340 x 200mm footprint at the end of an island, with no slots to trap crumbs or dull an edge, and the blades never knock together in a drawer.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 340 x 200 x 452 mm13 3/8" x 7 7/8" x 17 13/16"
- Parts to cut
- 2
- Build steps
- 7
- Boards
- 2
- Solid wood
- 3.2 bd ft
- Weight
- 4.9 kg11 lb
Materials
- Black walnut
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Neodymium bar magnets 40 x 12 x 6mm
Cut list
The first 2 of 2 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Knife slab | 440 x 300 x 4017 5/16" x 11 13/16" x 1 9/16" | Black walnut |
| B | 1 | Foot | 340 x 200 x 3213 3/8" x 7 7/8" x 1 1/4" | Black walnut |
Open this design in Crava to see the full cut list and plans - all 2 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 7 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

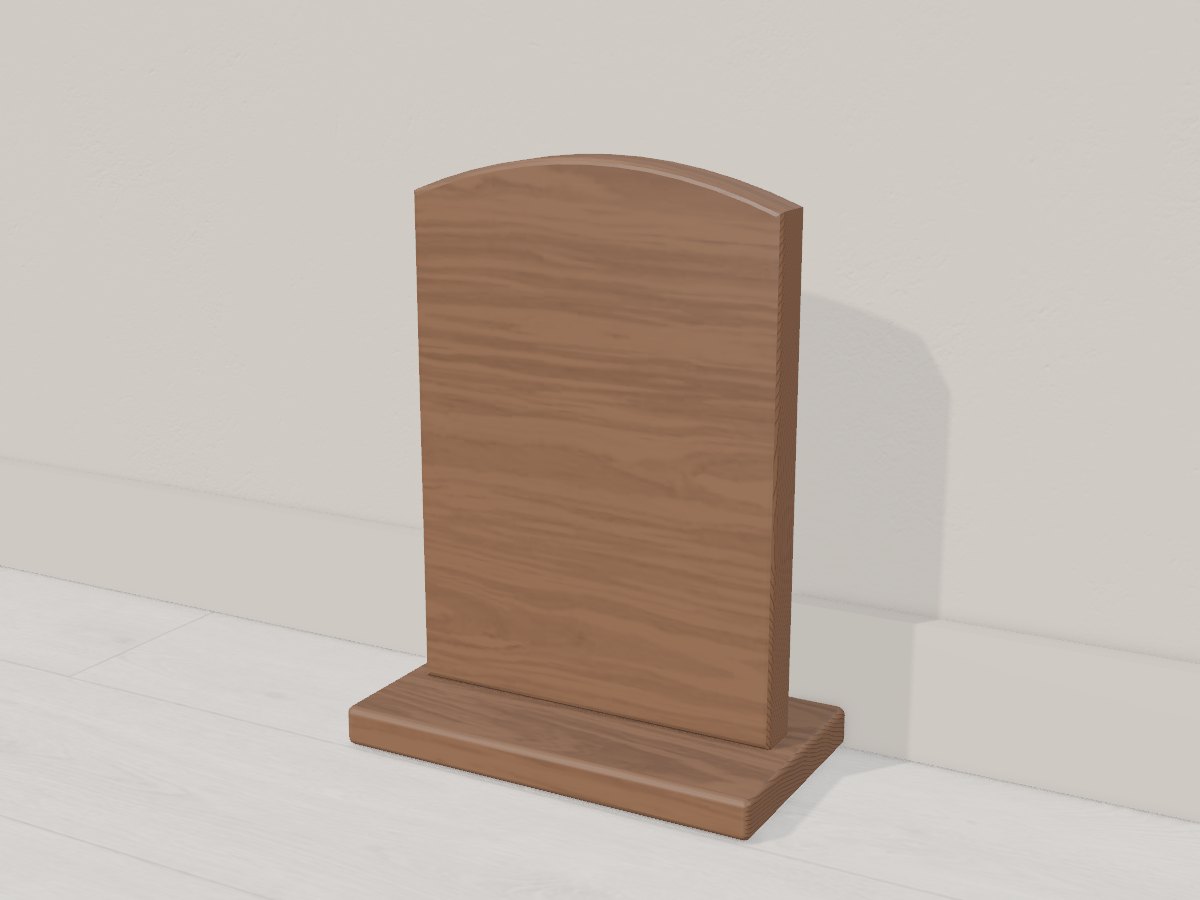

The 3D model
