Three-tier cherry spice step
A three-step cherry riser for the back of a cupboard, 400mm wide and 225mm deep, each tread 40mm higher and 75mm further back than the one before, with a low lip along every front edge. Thirty small jars stand in three rows where every label can be read at a glance, so the cumin stops hiding behind the paprika; the treads and risers sit in housings in stepped sides, so it never racks.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 400 x 225 x 134 mm15 3/4" x 8 7/8" x 5 1/4"
- Parts to cut
- 8
- Build steps
- 11
- Boards
- 2
- Solid wood
- 1 bd ft
- Weight
- 1.1 kg2 lb
Materials
- Cherry
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 4 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tread | 396 x 75 x 1215 9/16" x 2 15/16" x 1/2" | Cherry |
| B | 3 | Riser and jar lip | 396 x 54 x 1015 9/16" x 2 1/8" x 3/8" | Cherry |
| C | 1 | Tread | 396 x 65 x 1215 9/16" x 2 9/16" x 1/2" | Cherry |
| +2 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 8 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 11 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

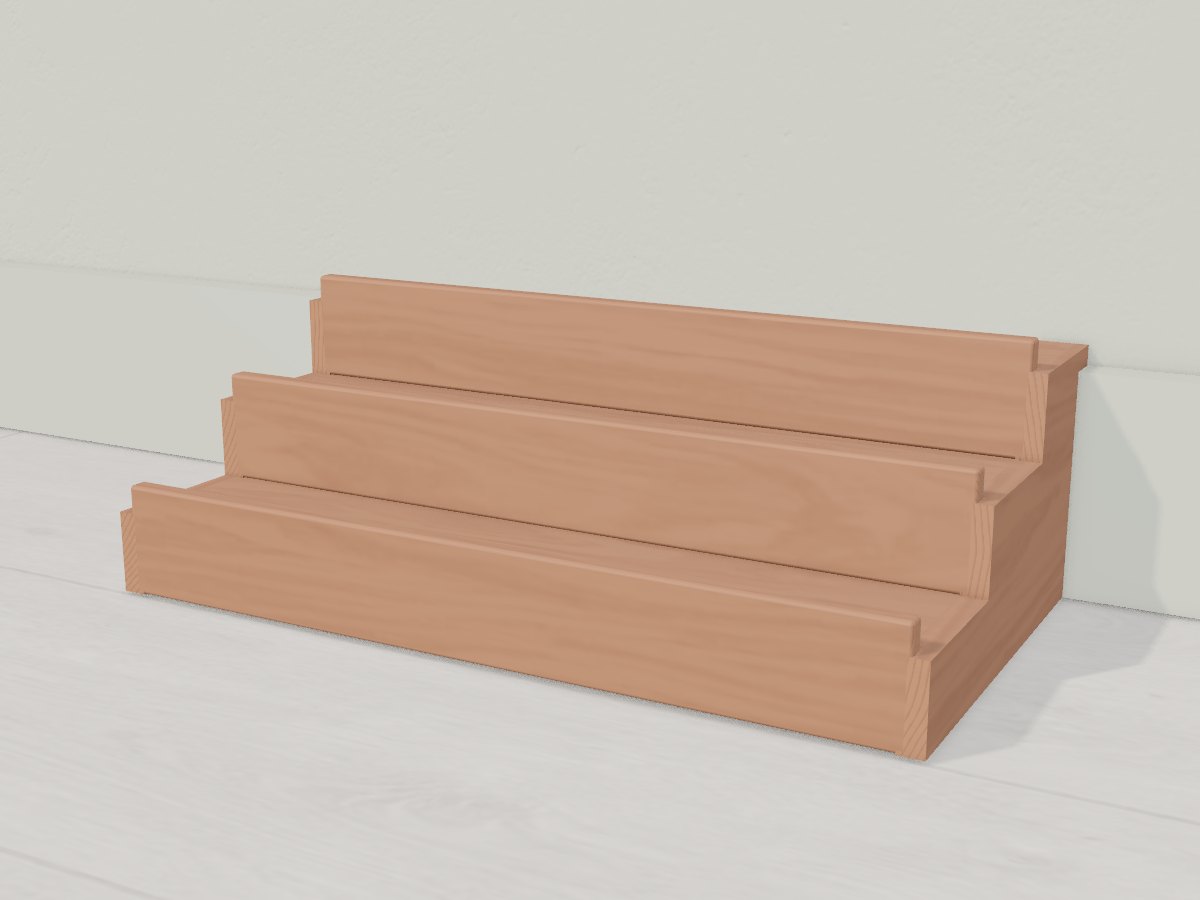

The 3D model
