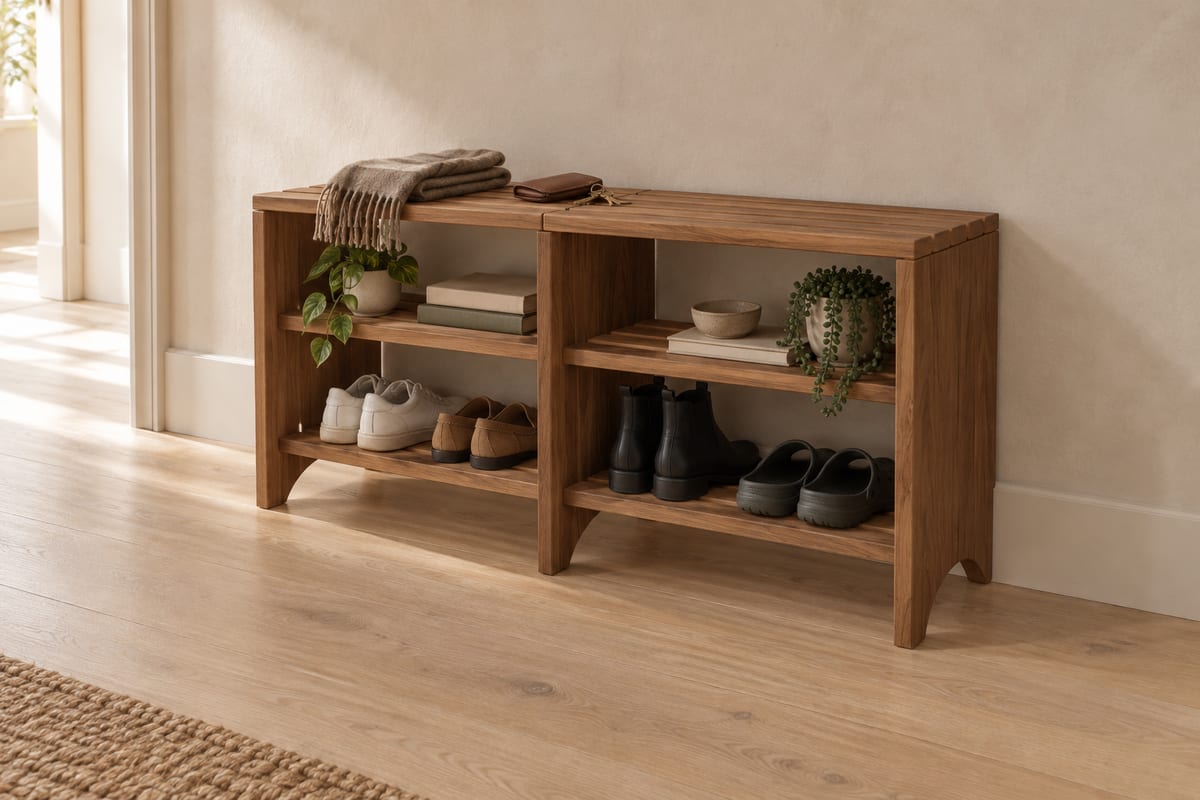

Walnut slatted shoe bench
A slatted entry bench only 300mm deep, so it fits a hallway that is barely wider than the front door swing: a seat for pulling boots on over two airy racks that hold eight pairs of shoes and let them dry. Oiled walnut slats are tenoned into arched end boards, and a middle partition keeps the seat stiff enough for two adults.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1000 x 300 x 460 mm39 3/8" x 11 13/16" x 18 1/8"
- Parts to cut
- 31
- Build steps
- 12
- Boards
- 5
- Solid wood
- 10.7 bd ft
- Weight
- 14.7 kg32 lb
Materials
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 6 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 10 | Seat slat | 500 x 52 x 2519 11/16" x 2 1/16" x 1" | Black walnut |
| B | 2 | Rail | 494 x 60 x 2219 7/16" x 2 3/8" x 7/8" | Black walnut |
| C | 8 | Shoe rack 1 slat | 488 x 52 x 2019 3/16" x 2 1/16" x 13/16" | Black walnut |
| +11 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 31 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 12 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

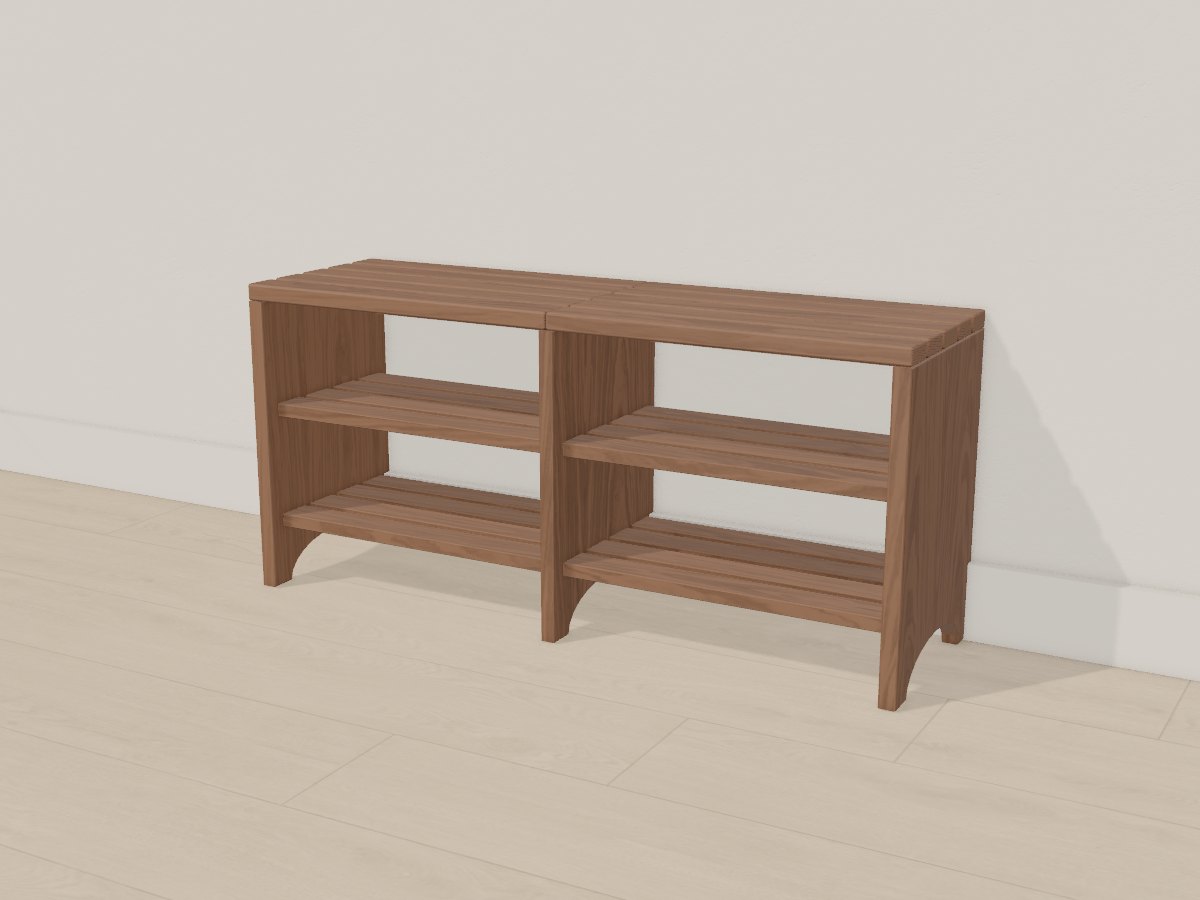

The 3D model
