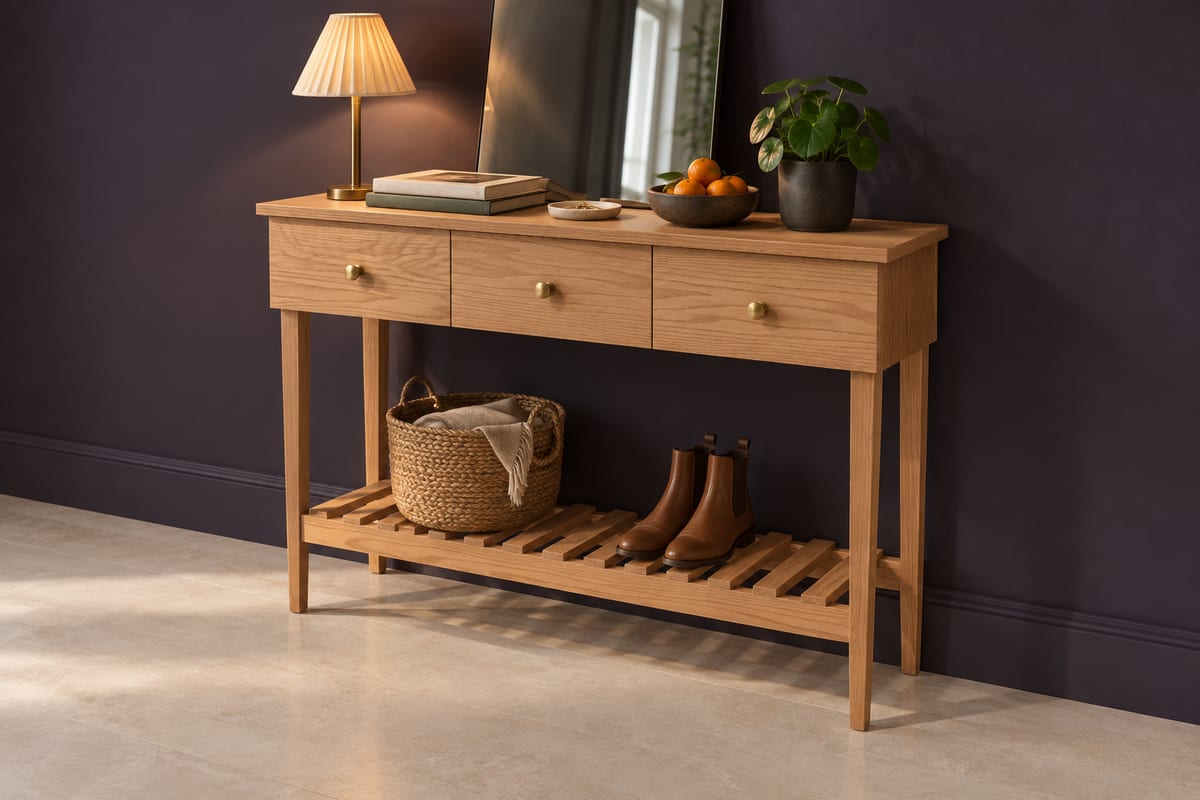

Cherry three-drawer hall console
A narrow hall console in oiled cherry, only 330mm deep: a row of three drawers with brass knobs on slender tapered legs, and a slatted shelf low between them for a basket or a pair of boots. The cherry deepens to a warm red-brown over the years.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1240 x 361 x 815 mm48 13/16" x 14 3/16" x 32 1/16"
- Parts to cut
- 51
- Build steps
- 32
- Boards
- 7
- Sheets
- 2
- Solid wood
- 18.4 bd ft
- Weight
- 36.1 kg80 lb
Materials
- Cherry
- Birch plywood
Finish
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Drill
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 6 x Side-mount drawer slide, 250mm
- 3 x Round knob, 30mm, brushed brass
Cut list
The first 3 of 28 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Console 1 - Drawer 1 box | 326.5 x 130 x 1212 7/8" x 5 1/8" x 1/2" | Birch plywood |
| B | 1 | Console 1 - Drawer 1 bottom | 326.5 x 238 x 612 7/8" x 9 3/8" x 1/4" | Birch plywood |
| C | 2 | Console 2 - Drawer 1 box | 326.5 x 130 x 1212 7/8" x 5 1/8" x 1/2" | Birch plywood |
| +46 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 51 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 32 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

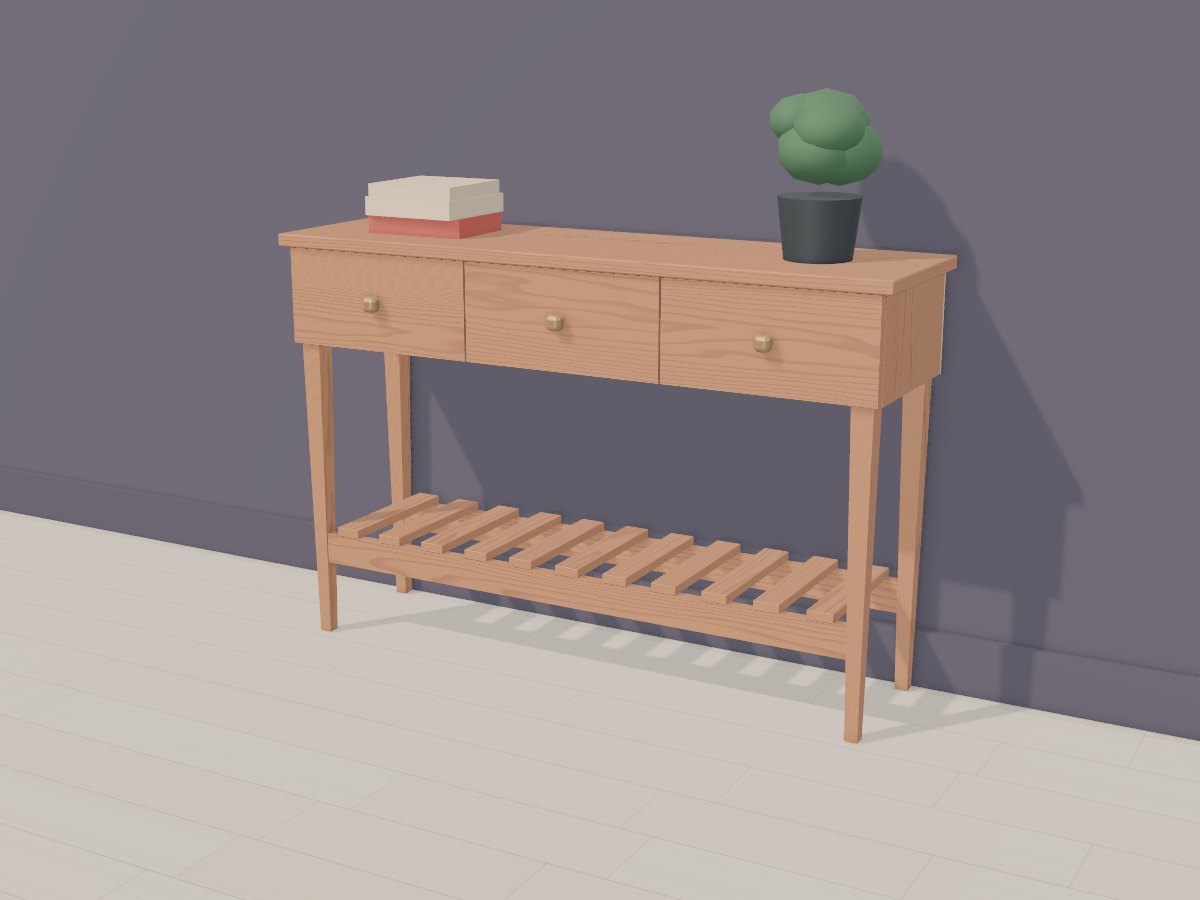

The 3D model
