Slim walnut shoe cabinet

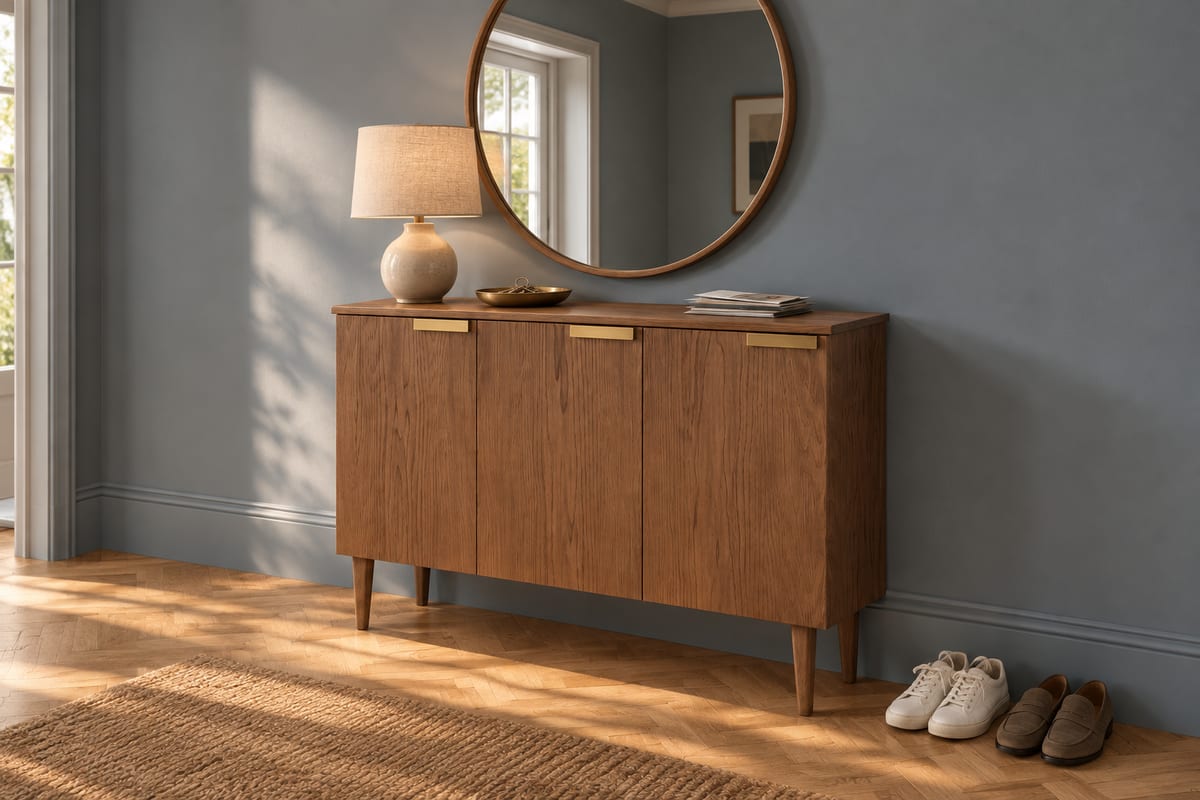

A shallow black walnut shoe cabinet for a narrow entry: three book-matched slab doors with brass edge pulls on slim tapered legs, two shelves behind each door, and a round walnut-backed mirror standing on the top.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1230 x 309 x 1612 mm48 7/16" x 12 3/16" x 63 7/16"
- Parts to cut
- 31
- Build steps
- 27
- Boards
- 10
- Sheets
- 2
- Solid wood
- 31.5 bd ft
- Weight
- 55.8 kg123 lb
Materials
- Black walnut
- Birch plywood
Finish
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 1 x Round mirror glass, 6mm
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 6 x Concealed cabinet hinge, full overlay
- 3 x Edge pull, 150mm, brushed brass
Cut list
The first 3 of 22 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Shoes 1 - Back | 620 x 400 x 624 7/16" x 15 3/4" x 1/4" | Birch plywood |
| B | 1 | Shoes 2 - Back | 620 x 400 x 624 7/16" x 15 3/4" x 1/4" | Birch plywood |
| C | 1 | Shoes 3 - Back | 620 x 400 x 624 7/16" x 15 3/4" x 1/4" | Birch plywood |
| +28 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 31 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 27 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

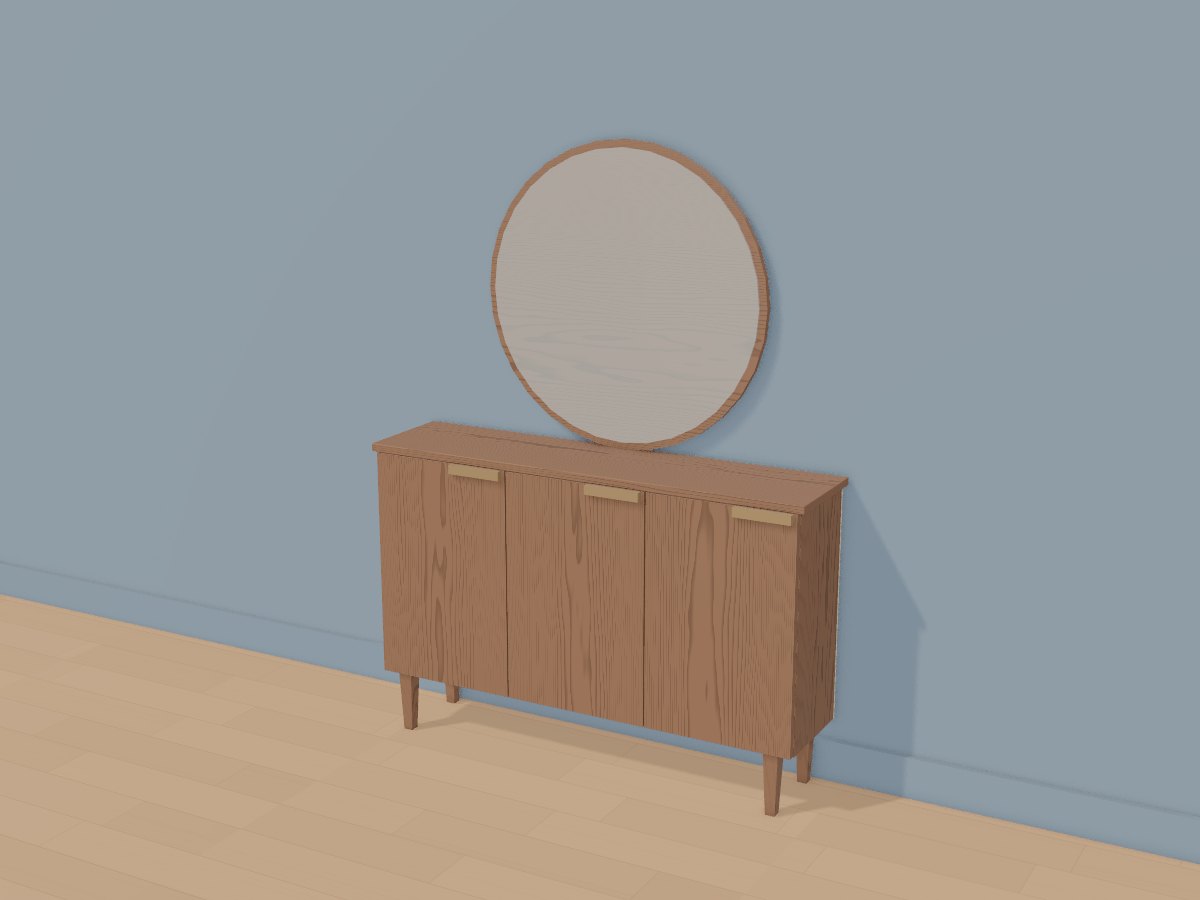

The 3D model
