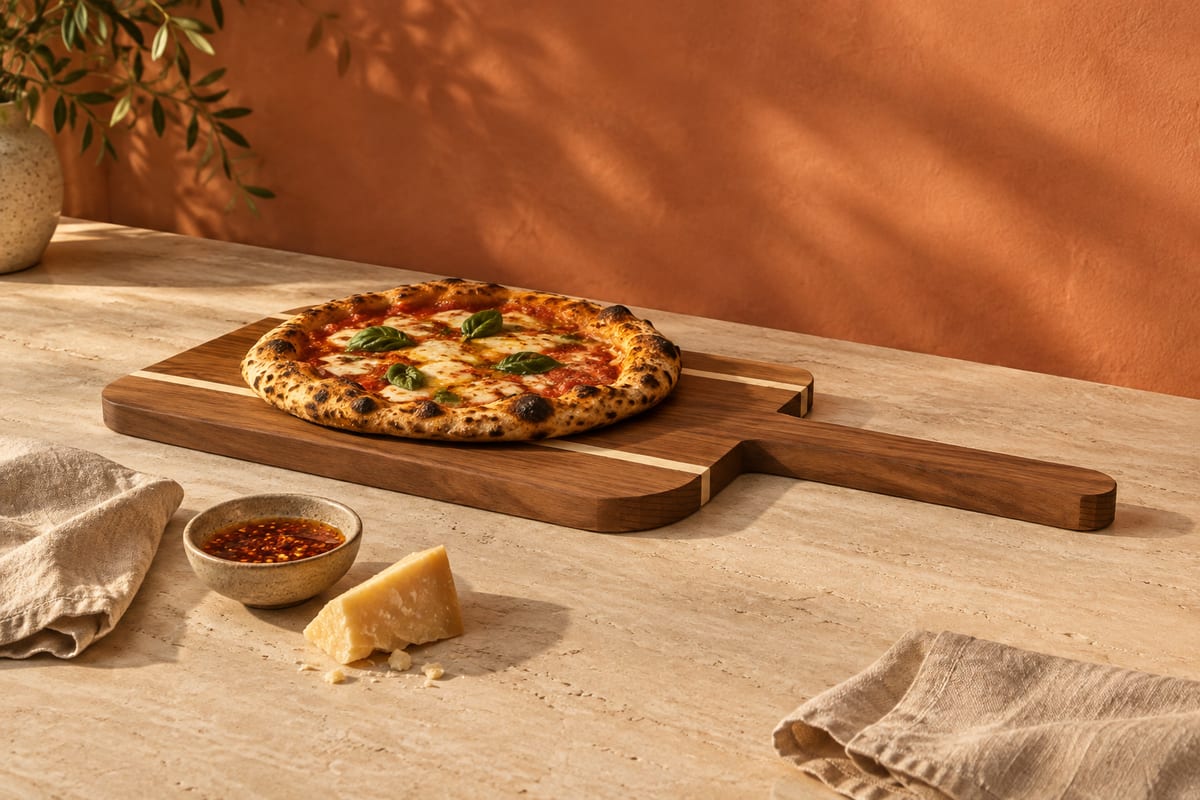

Pinstriped walnut serving paddle
A 560mm walnut serving paddle glued up from seven strips, two maple pinstripes running the length of its 380 x 250mm head and the centre strip carrying on into a long rounded handle. Thin and flat at 16mm, it slides under a pizza or a loaf like a peel, goes straight to the table as the serving board, and its handle hangs over the table edge so the board itself takes no more room than the food on it.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 560 x 250 x 16 mm22 1/16" x 9 13/16" x 5/8"
- Parts to cut
- 7
- Build steps
- 12
- Boards
- 2
- Solid wood
- 0.7 bd ft
- Weight
- 1 kg2 lb
Materials
- Black walnut
- Hard maple
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 4 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Strip and handle | 560 x 50 x 1622 1/16" x 1 15/16" x 5/8" | Black walnut |
| B | 2 | Walnut strip | 380 x 50 x 1614 15/16" x 1 15/16" x 5/8" | Black walnut |
| C | 2 | Walnut strip | 380 x 40 x 1614 15/16" x 1 9/16" x 5/8" | Black walnut |
| +2 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 7 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 12 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

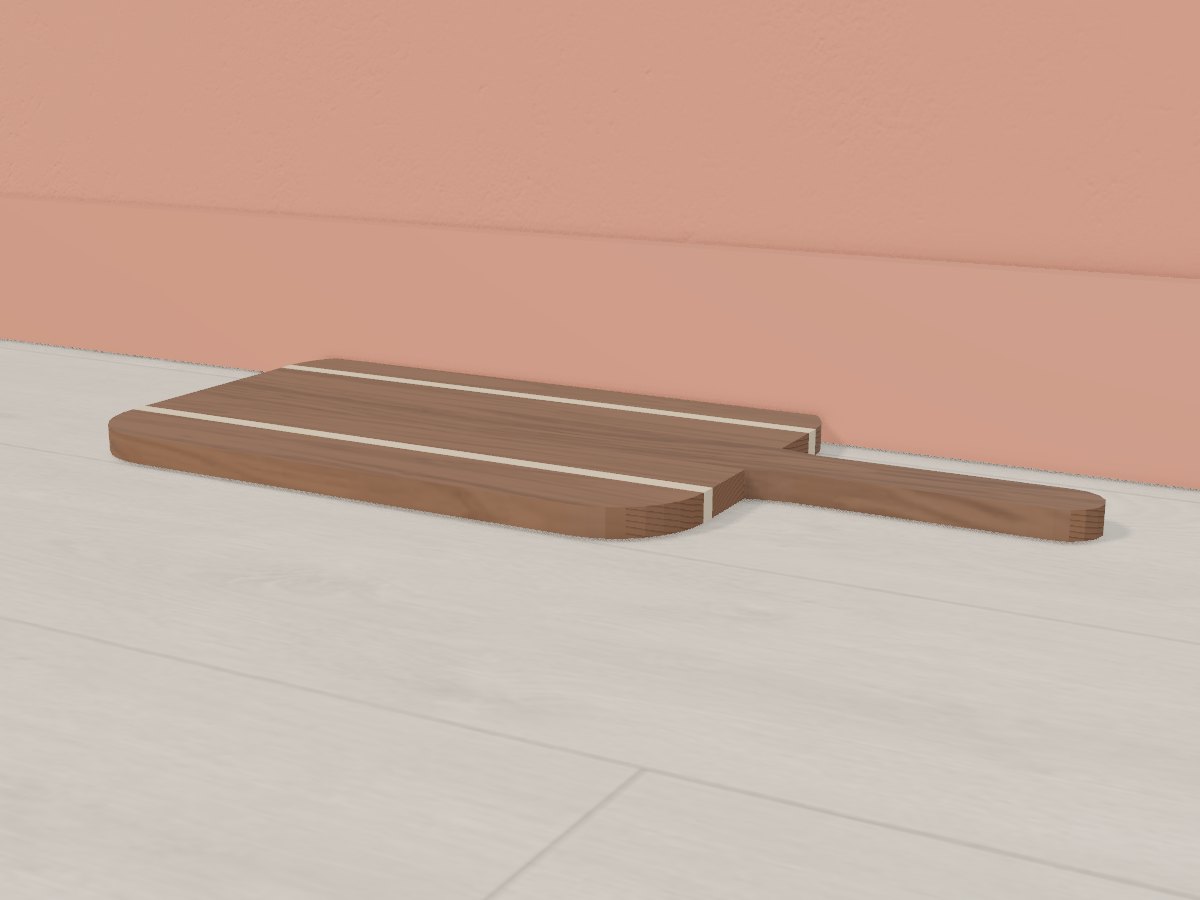

The 3D model
