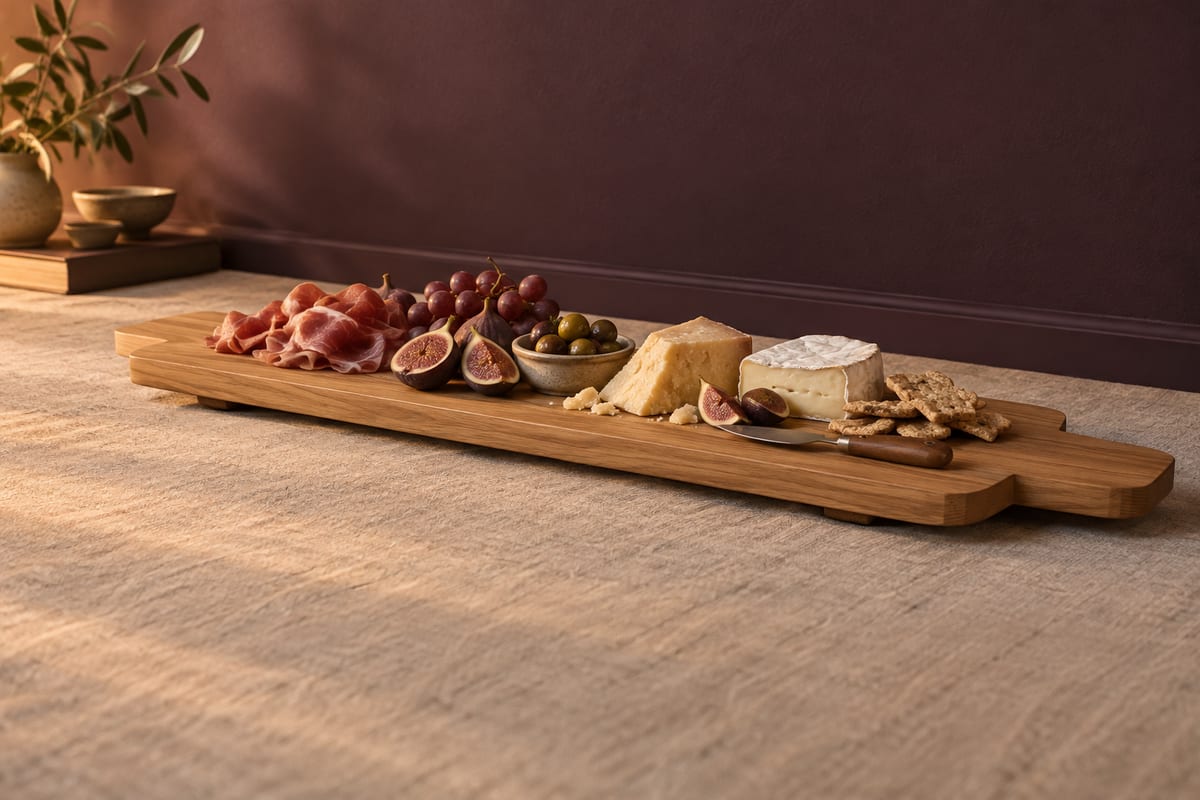

Long cherry charcuterie plank
A metre-long cherry grazing plank, 300mm wide and 22mm thick, with a rounded tab handle shaped into each end and two battens let into sliding dovetails underneath. The battens keep a long, thin board flat for years - glued only at their centres, they let the cherry move across its width without cupping or cracking - and lift it 15mm so fingers get under the tabs to carry a full spread down the middle of the table.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1000 x 300 x 37 mm39 3/8" x 11 13/16" x 1 7/16"
- Parts to cut
- 4
- Build steps
- 7
- Boards
- 2
- Solid wood
- 3 bd ft
- Weight
- 3.5 kg8 lb
Materials
- Cherry
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Router
- Table saw
- Clamps
- Sandpaper
- Brush
Cut list
The first 2 of 2 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Board | 1000 x 150 x 2239 3/8" x 5 7/8" x 7/8" | Cherry |
| B | 2 | Sliding-dovetail batten | 250 x 35 x 239 13/16" x 1 3/8" x 7/8" | Cherry |
Open this design in Crava to see the full cut list and plans - all 4 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 7 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

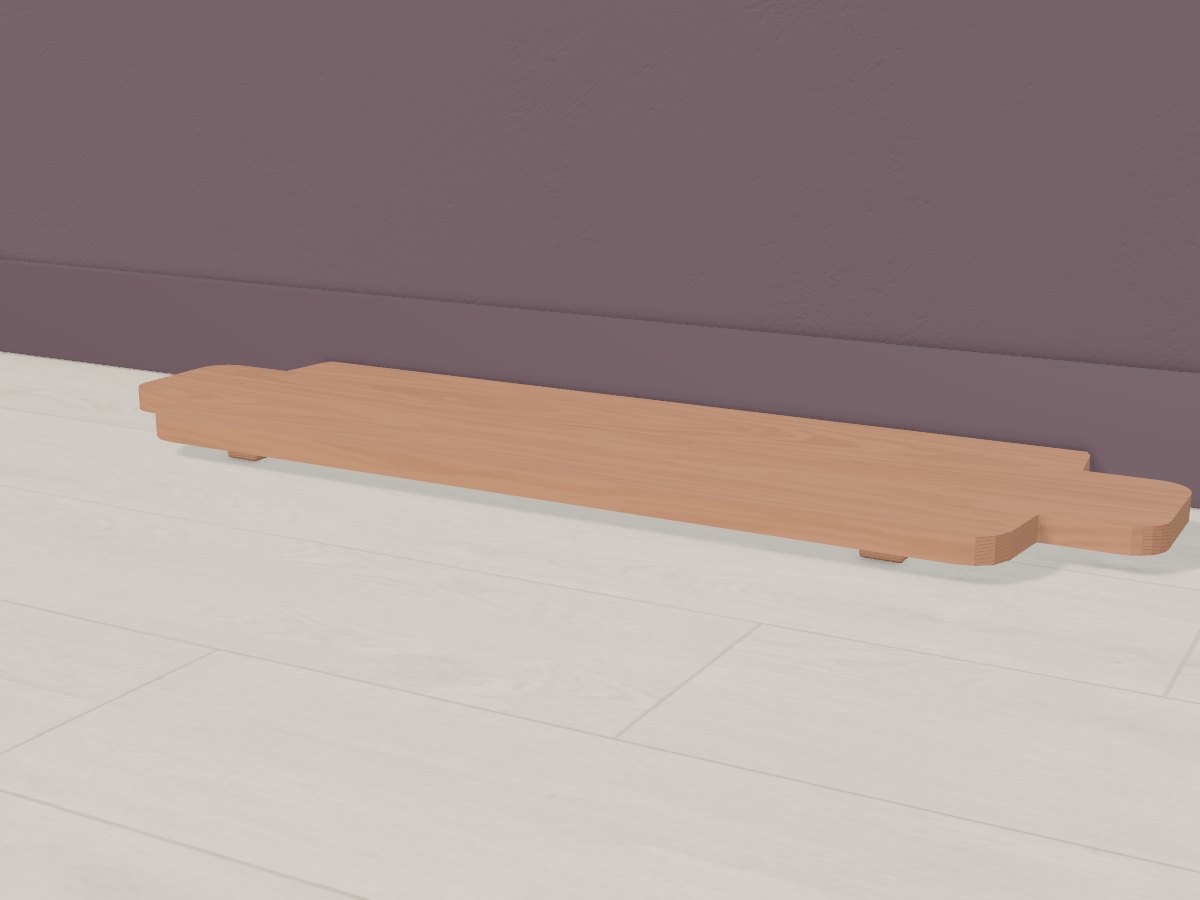

The 3D model
