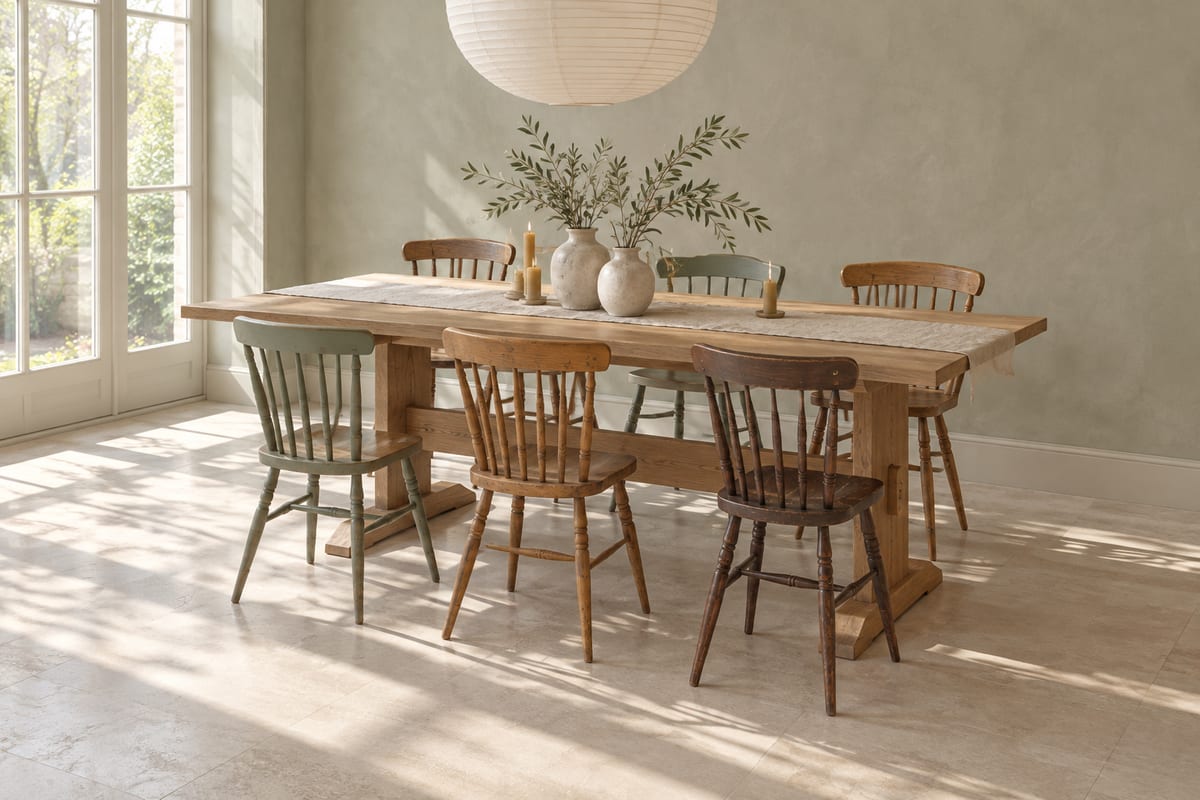

Smoked oak trestle table
A 2200mm trestle dining table in smoked white oak: wide board uprights on chamfered feet and top bearers, tied by a single deep stretcher, every joint draw-bored with oak pegs instead of glued, under a 38mm top with nothing at the corners to knock a knee on, so eight sit easily.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2200 x 950 x 750 mm86 5/8" x 37 3/8" x 29 1/2"
- Parts to cut
- 8
- Build steps
- 12
- Boards
- 8
- Solid wood
- 47 bd ft
- Weight
- 81.3 kg179 lb
Materials
- White oak
Finish
- Stain - smoked oak, hardwax oil over, matte
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Top | 2200 x 950 x 3886 5/8" x 37 3/8" x 1 1/2" | White oak |
| B | 1 | Stretcher | 1427 x 120 x 4056 3/16" x 4 3/4" x 1 9/16" | White oak |
| C | 2 | Foot | 760 x 75 x 7029 15/16" x 2 15/16" x 2 3/4" | White oak |
| +4 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 8 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 12 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

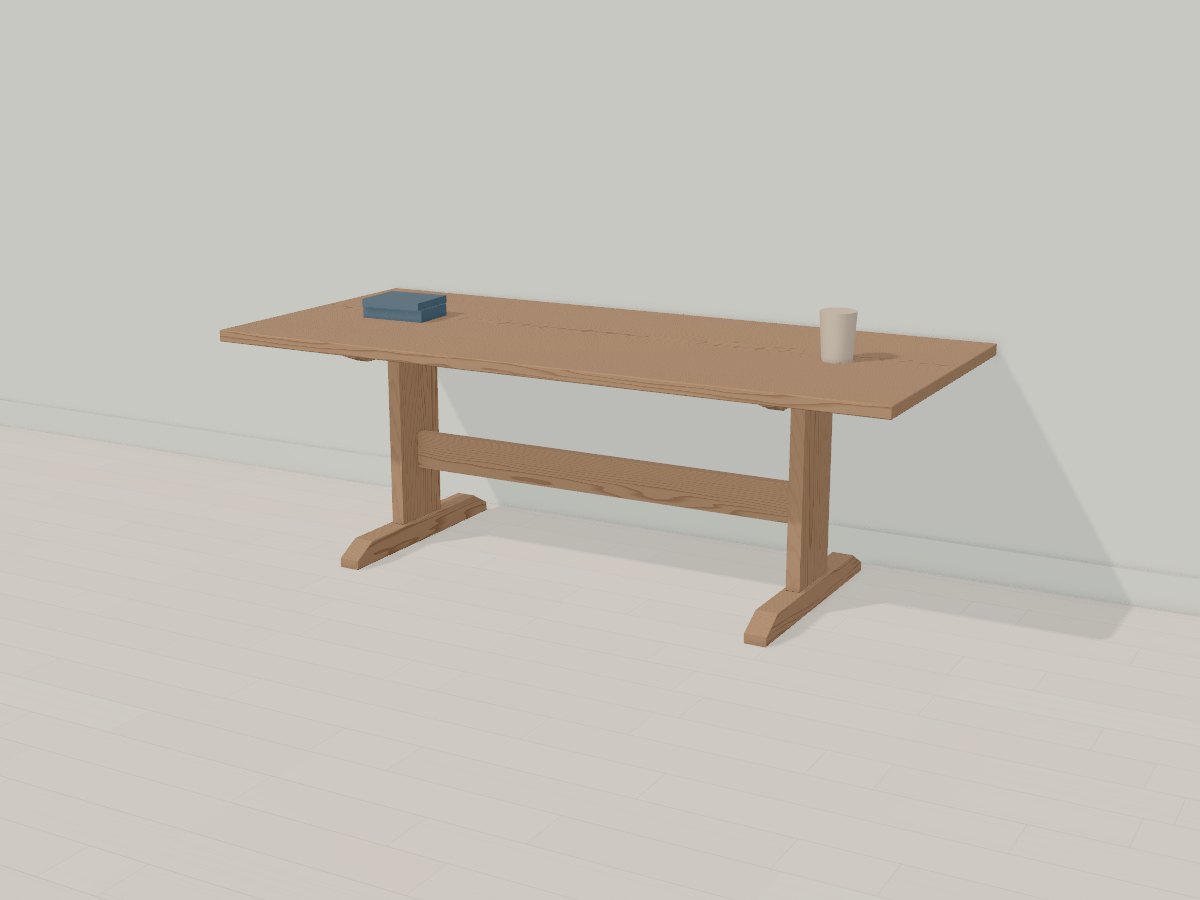

The 3D model
