Walnut mug tree with maple pegs

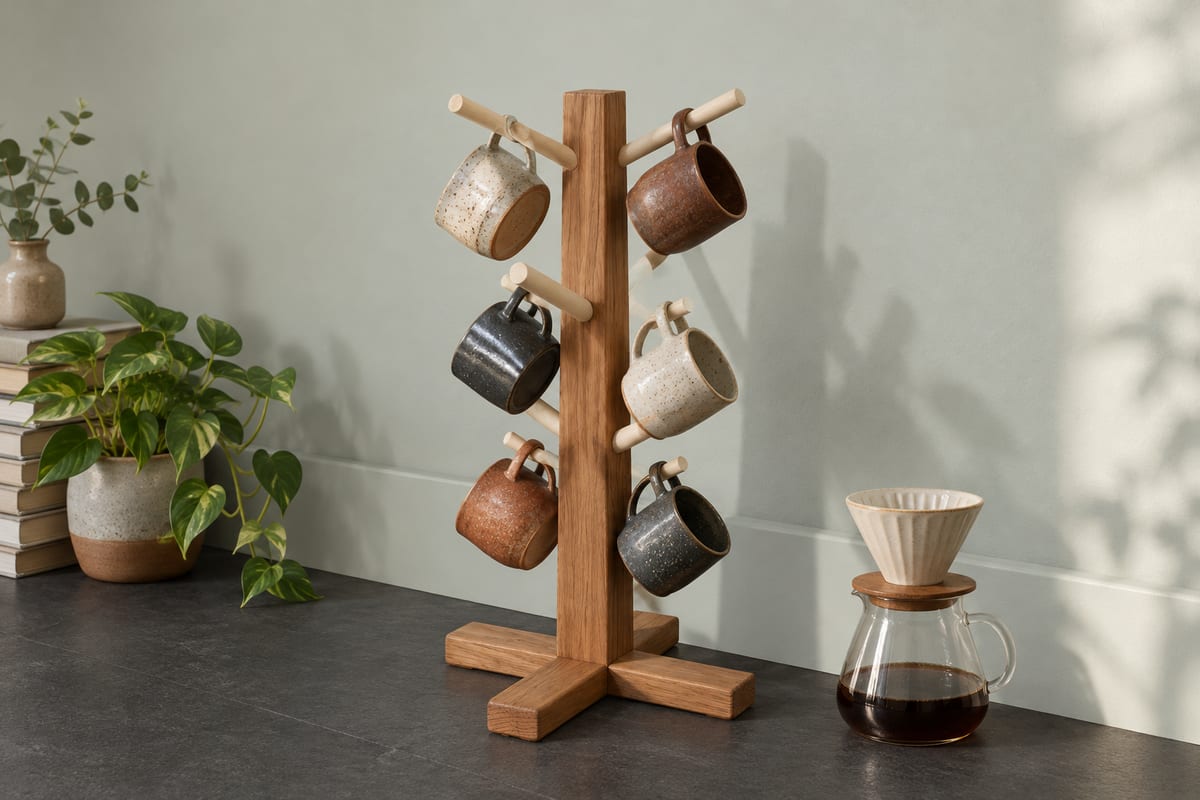

A tapered walnut post tenoned into a half-lapped cross foot, with six hard maple pegs glued in at 28 degrees, two to a level and each level turned a quarter so the mugs never clash. Six mugs hang in a 230mm square of counter instead of a shelf of cupboard, handles out and ready, and they drip-dry upside down after washing.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 230 x 230 x 406 mm9 1/16" x 9 1/16" x 16"
- Parts to cut
- 9
- Build steps
- 13
- Boards
- 3
- Solid wood
- 0.6 bd ft
- Weight
- 0.7 kg2 lb
Materials
- Hard maple
- Black walnut
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Cut list
The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Tapered post | 416 x 42 x 4216 3/8" x 1 5/8" x 1 5/8" | Black walnut |
| B | 1 | Foot, across | 230 x 40 x 249 1/16" x 1 9/16" x 15/16" | Black walnut |
| C | 1 | Foot, to | 230 x 40 x 249 1/16" x 1 9/16" x 15/16" | Black walnut |
| +6 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 9 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 13 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

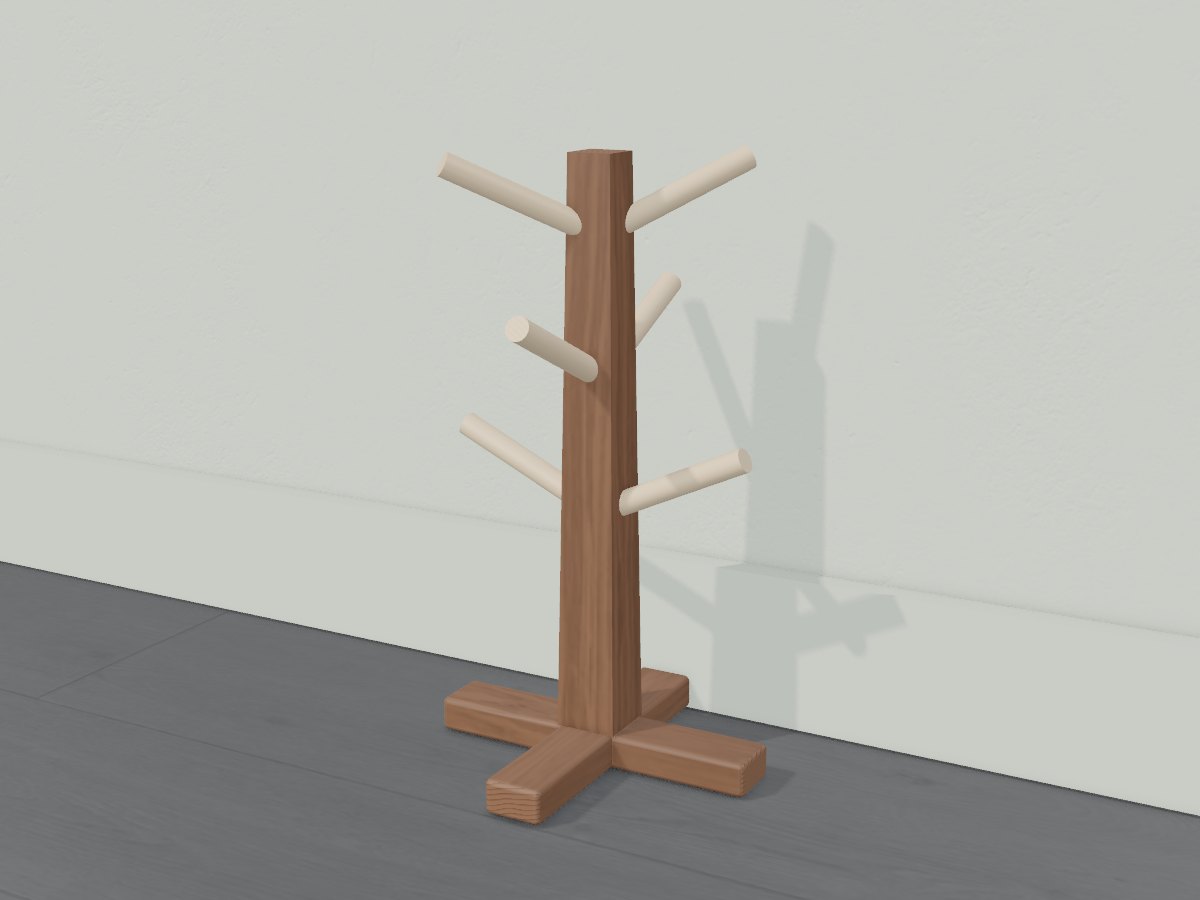

The 3D model
