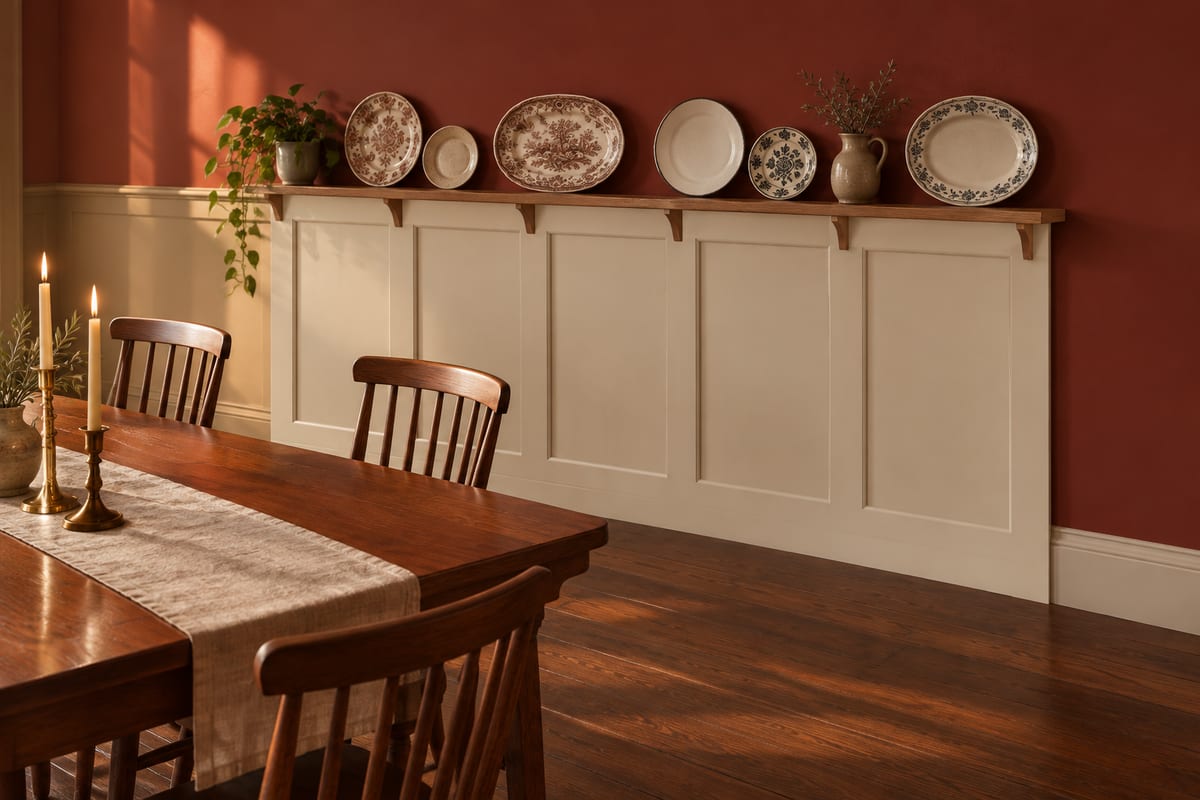

Oat Craftsman wainscot with cherry plate ledge
A tall Craftsman wainscot for a dining room: wide flat stiles, a deep base rail and a frieze rail in oat-coloured paint on an MDF ground, topped at 1.47m by an oiled cherry plate ledge with a stop bead, carried on six cove-cut cherry corbels. Serving platters and the good plates live on the wall instead of in a cupboard, and the wainscot takes every chair-back knock below.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3600 x 150 x 1480 mm141 3/4" x 5 7/8" x 58 1/4"
- Parts to cut
- 23
- Build steps
- 18
- Boards
- 3
- Sheets
- 4
- Solid wood
- 7.8 bd ft
- Weight
- 71.7 kg158 lb
Materials
- MDF
- Cherry
Finish
- Paint - oat, satin
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 7 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Plate ledge | 1800 x 150 x 2870 7/8" x 5 7/8" x 1 1/8" | Cherry |
| B | 2 | Plate stop bead | 1800 x 12 x 1270 7/8" x 1/2" x 1/2" | Cherry |
| C | 6 | Corbel | 140 x 115 x 285 1/2" x 4 1/2" x 1 1/8" | Cherry |
| +13 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 23 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 18 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

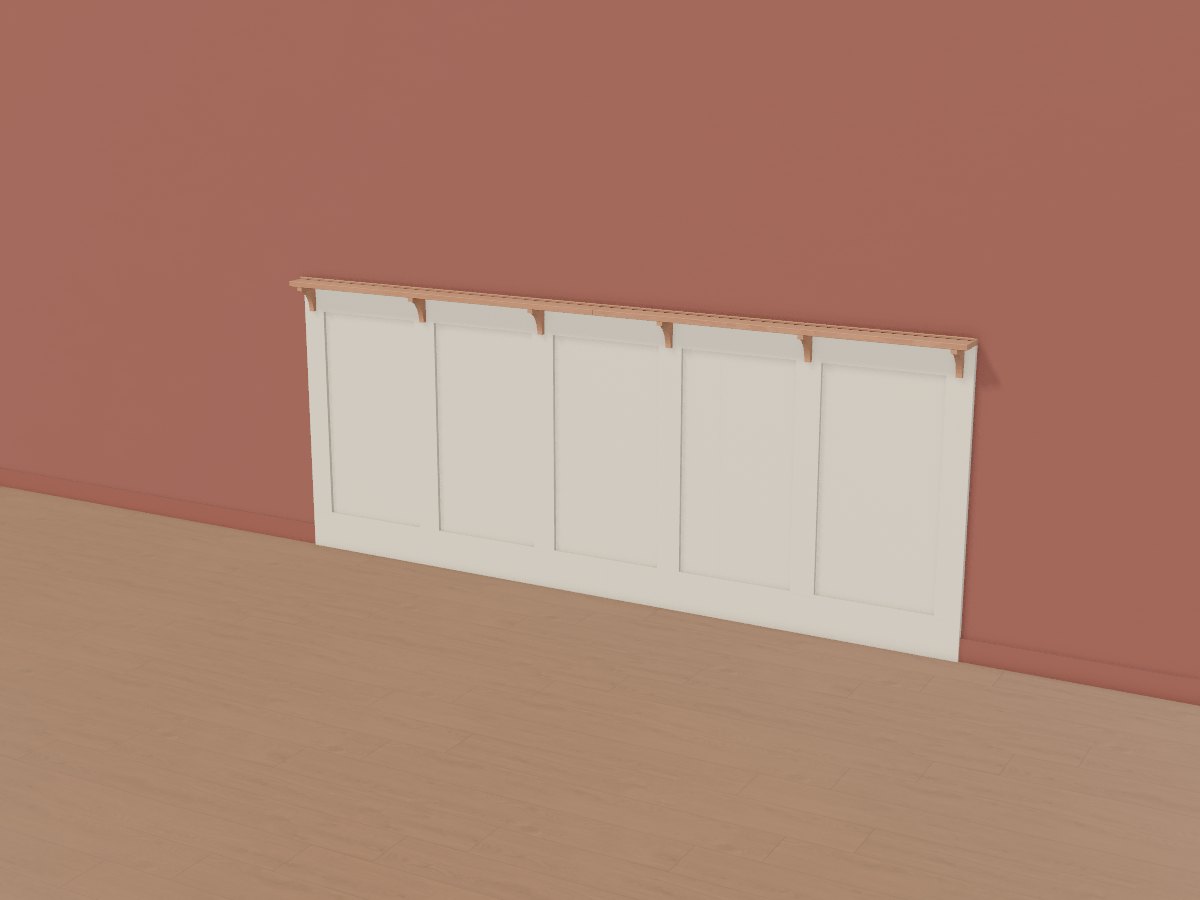

The 3D model
