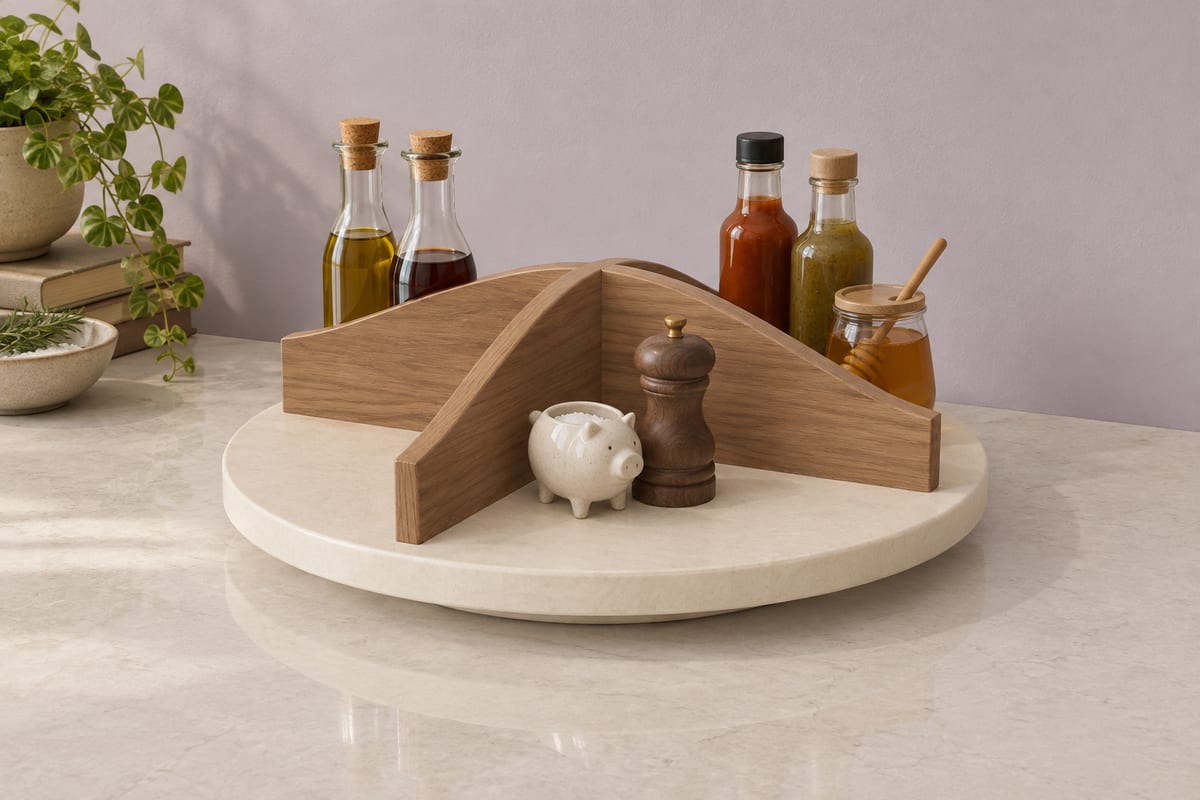

Lazy-susan caddy with crossed dividers
A 380mm hard maple turntable on a hidden 150mm ball-bearing plate, with two crowned walnut dividers half-lapped into a cross that splits it into four bays. Oils, vinegars, salt and pepper and the sauces each get a quarter, and one spin brings the bottle at the back of a deep corner cupboard - or the middle of the table - round to your hand; the crown doubles as a lifting handle.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 380 x 380 x 130 mm14 15/16" x 14 15/16" x 5 1/8"
- Parts to cut
- 4
- Build steps
- 11
- Boards
- 3
- Solid wood
- 2.1 bd ft
- Weight
- 4 kg9 lb
Materials
- Black walnut
- Hard maple
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Lazy-susan ball-bearing turntable, 150mm square
Cut list
The first 3 of 4 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Divider, side to side | 344 x 90 x 1213 9/16" x 3 9/16" x 1/2" | Black walnut |
| B | 1 | Divider, to | 340 x 90 x 1213 3/8" x 3 9/16" x 1/2" | Black walnut |
| C | 1 | Turntable top (two boards glued) | 380 x 380 x 2014 15/16" x 14 15/16" x 13/16" | Hard maple |
| +1 more part | ||||
Open this design in Crava to see the full cut list and plans - all 4 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 11 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

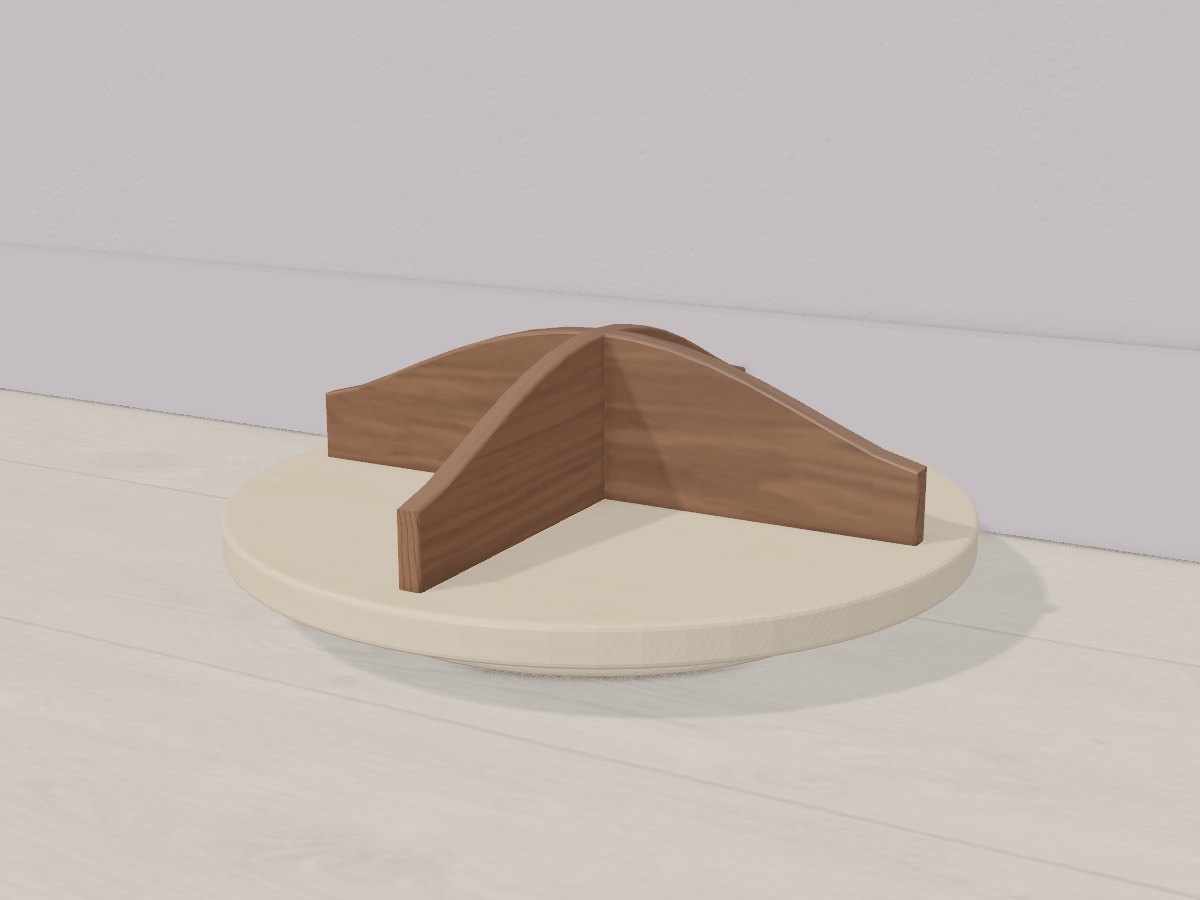

The 3D model
