Freestanding stemware rack
A white oak stand, 460 x 300mm and 330mm tall, with eight rails tenoned into a deep back crossbar and left open at the front, 17mm apart. Wine glasses slide in upside down by the stem with their feet bridging two rails, so twenty hang bowl-down out of the dust; they drip-dry straight after washing with no water pooling in the bowls and no rims chipping in a cupboard, and it needs no wall cabinet to hang from.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 460 x 300 x 330 mm18 1/8" x 11 13/16" x 13"
- Parts to cut
- 14
- Build steps
- 14
- Boards
- 3
- Solid wood
- 2.1 bd ft
- Weight
- 3.3 kg7 lb
Materials
- White oak
Finish
- Finishing oil - food-safe hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Crossbar | 460 x 60 x 4018 1/8" x 2 3/8" x 1 9/16" | White oak |
| B | 1 | Low stretcher | 430 x 36 x 2216 15/16" x 1 7/16" x 7/8" | White oak |
| C | 2 | Foot runner | 300 x 30 x 4011 13/16" x 1 3/16" x 1 9/16" | White oak |
| +10 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 14 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 14 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

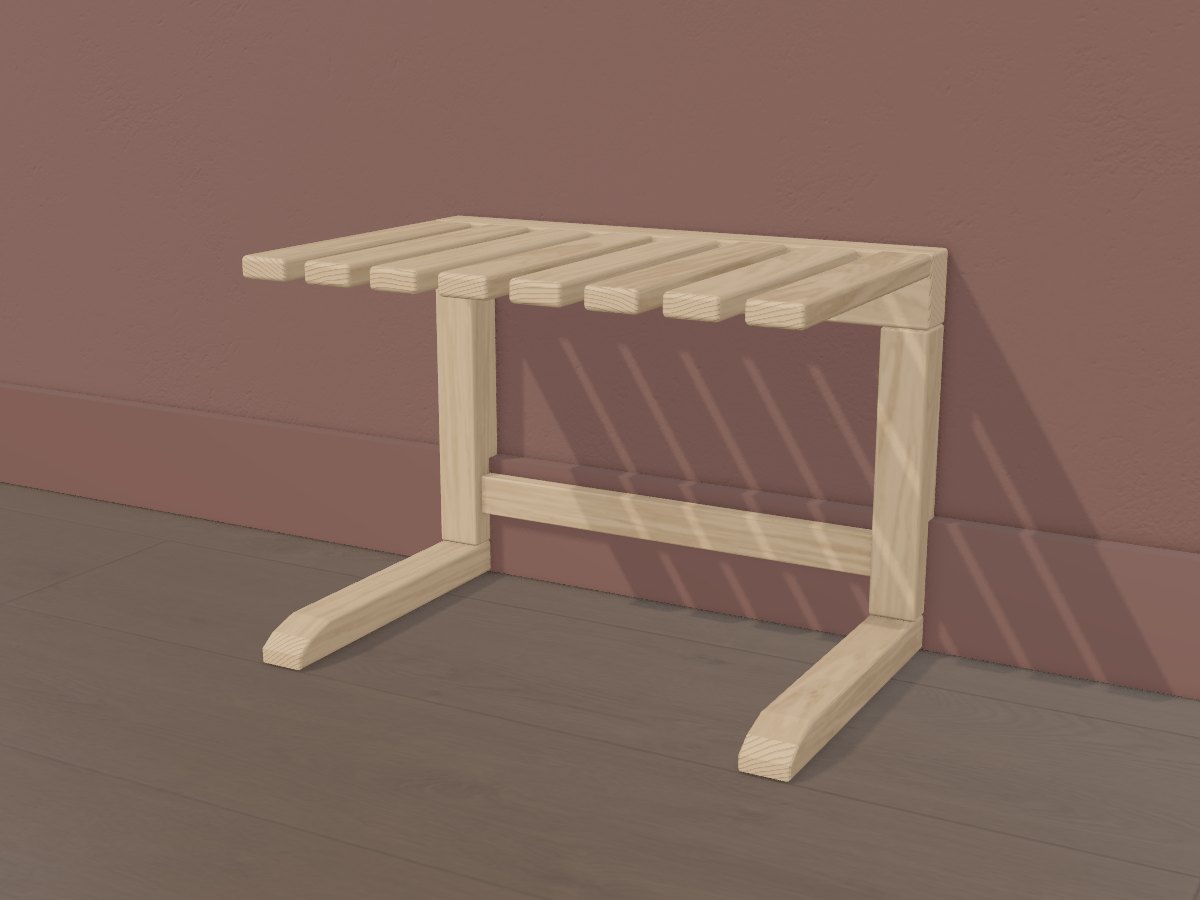

The 3D model
