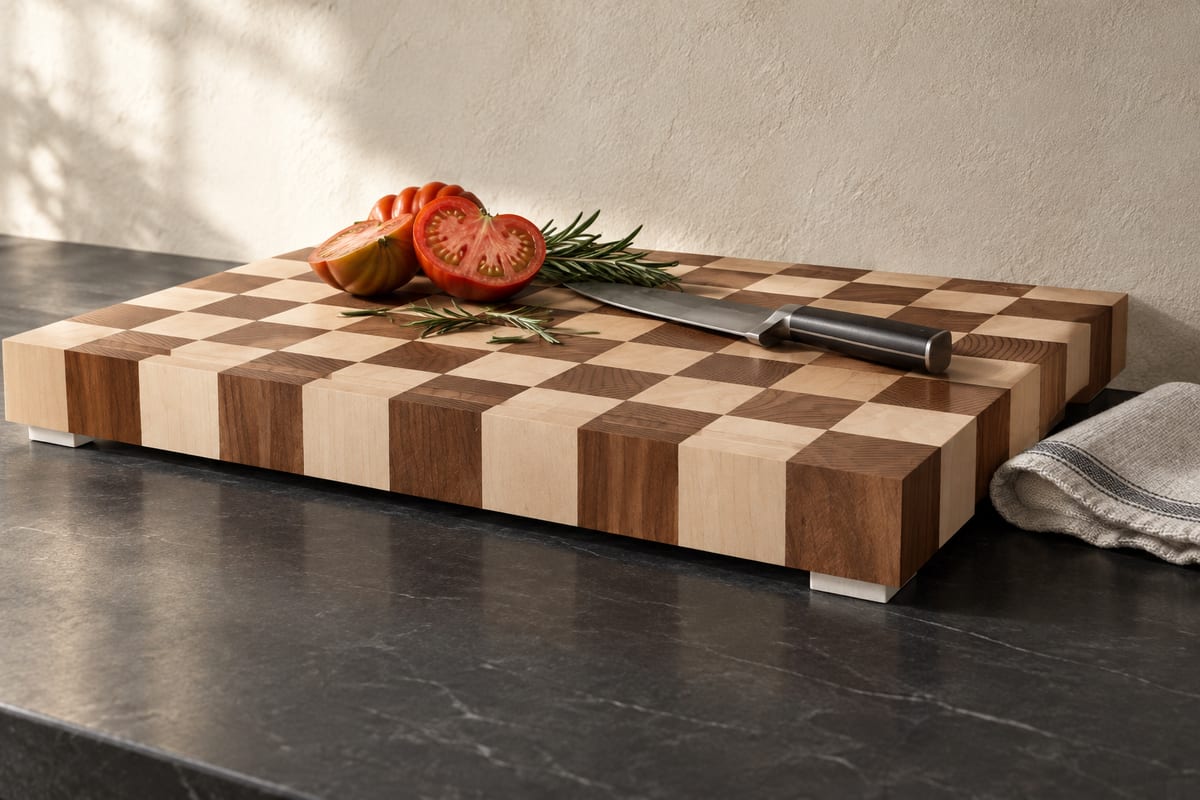

End-grain checkerboard butcher block
A 450 x 360mm end-grain butcher block in an eighty-square checkerboard of hard maple and black walnut, 40mm thick, with stopped juice grooves down both long sides and finger recesses coved into each end. The end grain takes a knife edge between its fibres instead of across them, so blades stay sharp longer and cuts close up; silicone feet lift it 10mm so it never slides, rocks or sits in a puddle.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 450 x 360 x 50 mm17 11/16" x 14 3/16" x 1 15/16"
- Parts to cut
- 80
- Build steps
- 28
- Boards
- 2
- Solid wood
- 2.7 bd ft
- Weight
- 4.3 kg9 lb
Materials
- Black walnut
- Hard maple
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Drill
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 1 x Food-safe silicone bumper feet, 30mm
Cut list
The first 3 of 44 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Walnut block, column 1 row 4 (finger recess) | 45 x 40 x 451 3/4" x 1 9/16" x 1 3/4" | Black walnut |
| B | 1 | Walnut block, column 1 row 6 (finger recess) | 45 x 40 x 451 3/4" x 1 9/16" x 1 3/4" | Black walnut |
| C | 1 | Walnut block, column 2 row 1 (juice groove) | 45 x 40 x 451 3/4" x 1 9/16" x 1 3/4" | Black walnut |
| +77 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 80 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 28 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

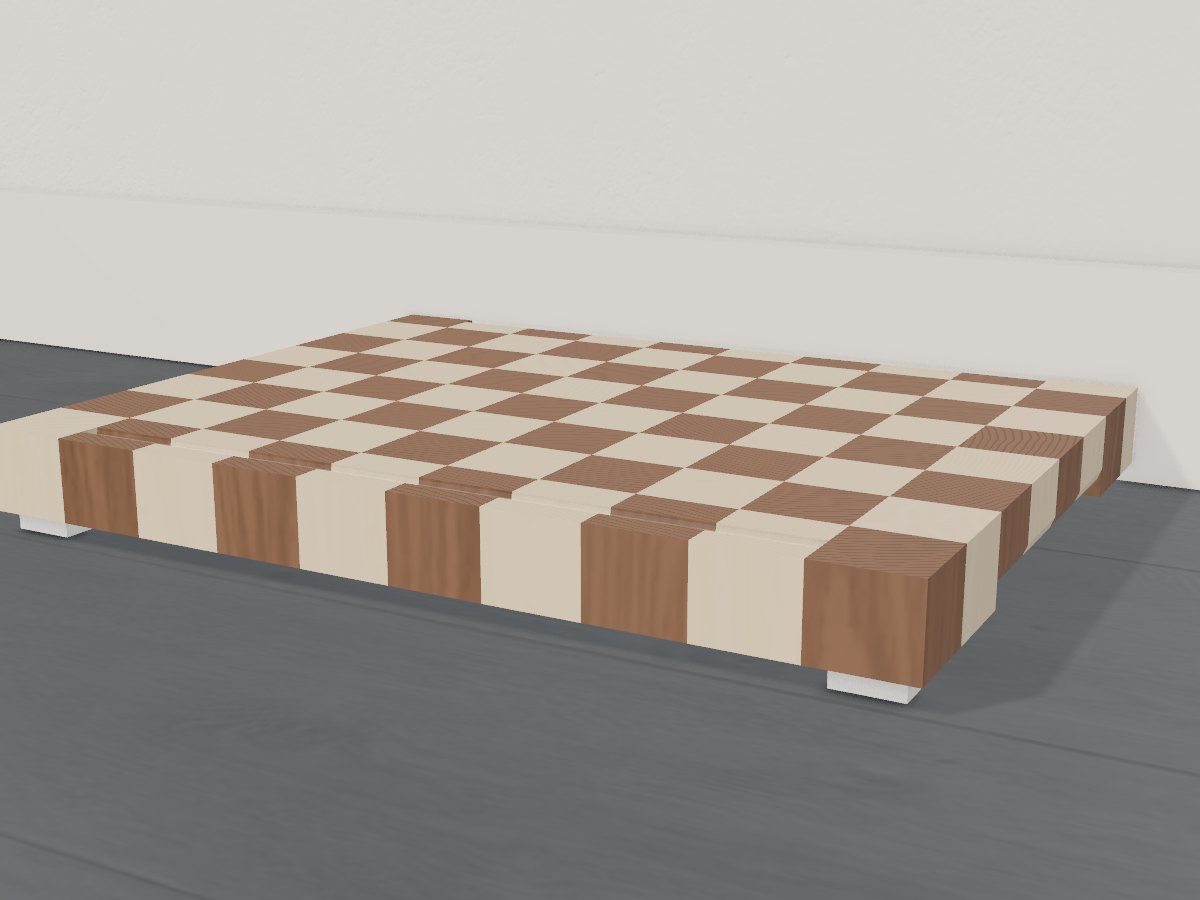

The 3D model
