Cherry board with a sloped crumb well
An edge-grain cherry board, 500 x 300 x 32mm, with two maple pinstripes and a shallow well carved into one end whose floor slopes 12mm down toward the end wall. Sweep chopped onion or bread crumbs down the slope and they gather in the well instead of skittering across the counter, then tip straight into the pan; a coved finger lift under the far end picks it up off a flat worktop.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 500 x 300 x 32 mm19 11/16" x 11 13/16" x 1 1/4"
- Parts to cut
- 9
- Build steps
- 11
- Boards
- 2
- Solid wood
- 2 bd ft
- Weight
- 2.6 kg6 lb
Materials
- Cherry
- Hard maple
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 4 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Cherry strip 1 (well wall) | 500 x 32 x 4019 11/16" x 1 1/4" x 1 9/16" | Cherry |
| B | 5 | Cherry strip | 500 x 32 x 4019 11/16" x 1 1/4" x 1 9/16" | Cherry |
| C | 1 | Cherry strip 9 (well wall) | 500 x 32 x 4019 11/16" x 1 1/4" x 1 9/16" | Cherry |
| +2 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 9 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 11 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

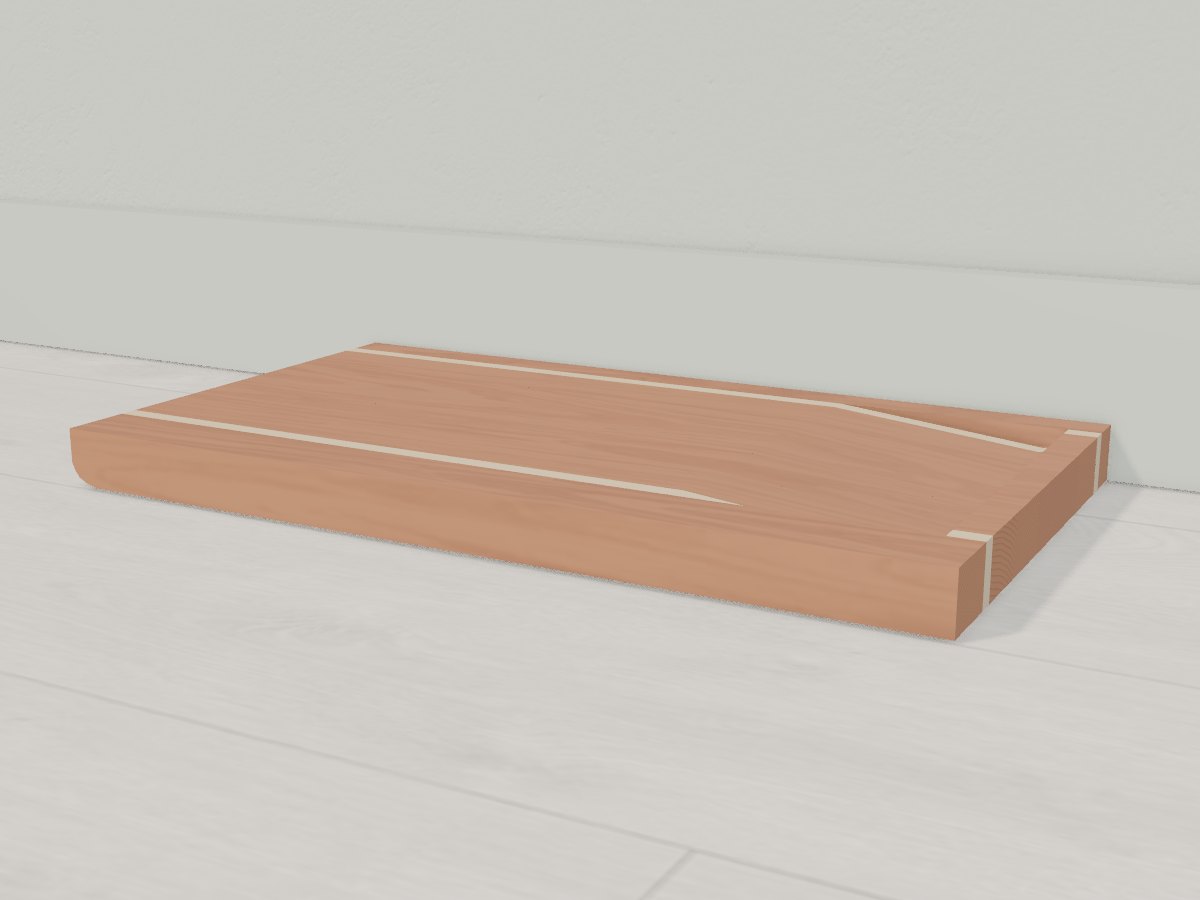

The 3D model
