Walnut fold-down table cupboard

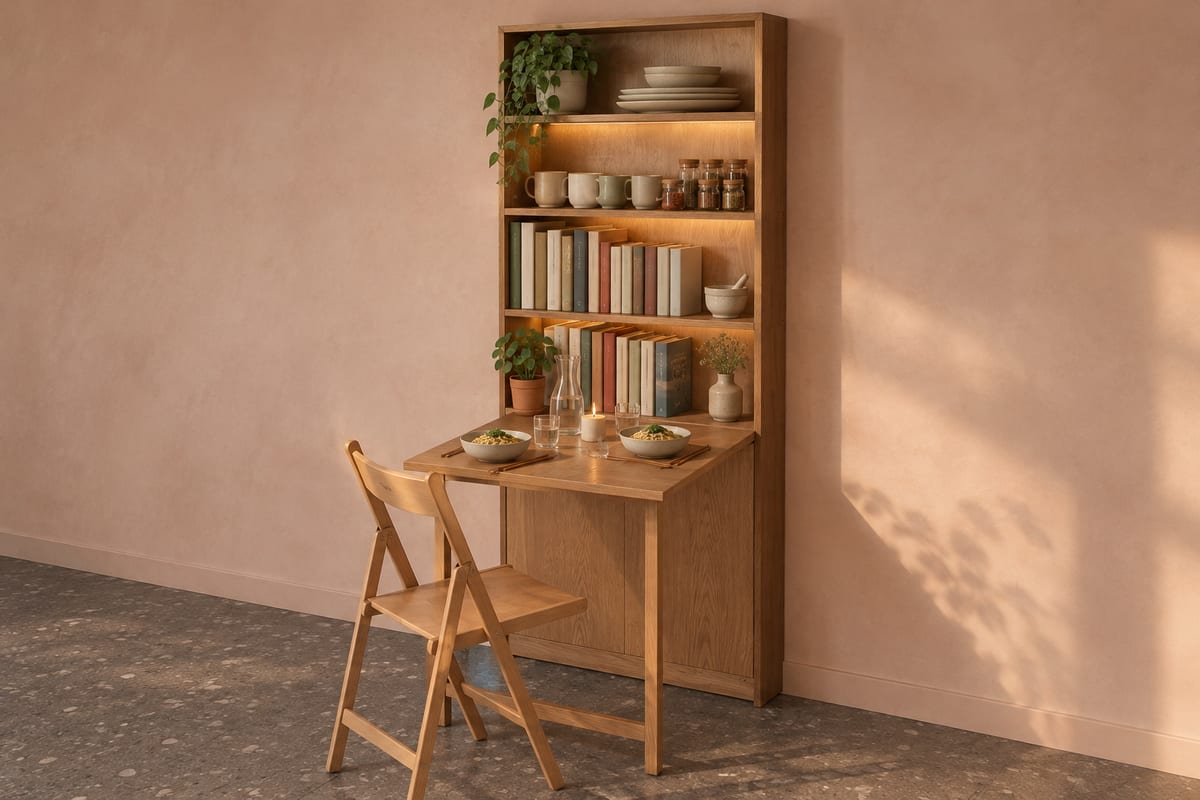

A slim walnut wall cupboard only 172mm deep whose middle front folds down on a piano hinge and a fold-out leg frame into a 800 x 640mm table for two, lit from above by a warm strip over the mugs. Closed it is a flat cupboard on the wall; the two folding chairs live behind the doors below, so a kitchen corner becomes a dining room.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

800 x 789 x 1962 mm31 1/2" x 31 1/16" x 77 1/4"

Parts to cut

27

Build steps

55

Boards

8

Sheets

1

Solid wood

23 bd ft

Weight

41.7 kg92 lb

Materials

• Black walnut
• Birch plywood

Finish

• Finishing oil - Hardwax oil, matt

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Drill
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Brass piano hinge, 40mm open width
• 1 x Brass butt hinge pair, 50mm, with a folding leg lock
• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 4 x Concealed cabinet hinge, full overlay
• 2 x Edge pull, 150mm, brushed brass
• 1 x Plug-in LED strip kit, 12V, warm white 2700K

Cut list

The first 3 of 23 lines, in millimetres (inches below), finished size including joint allowances.

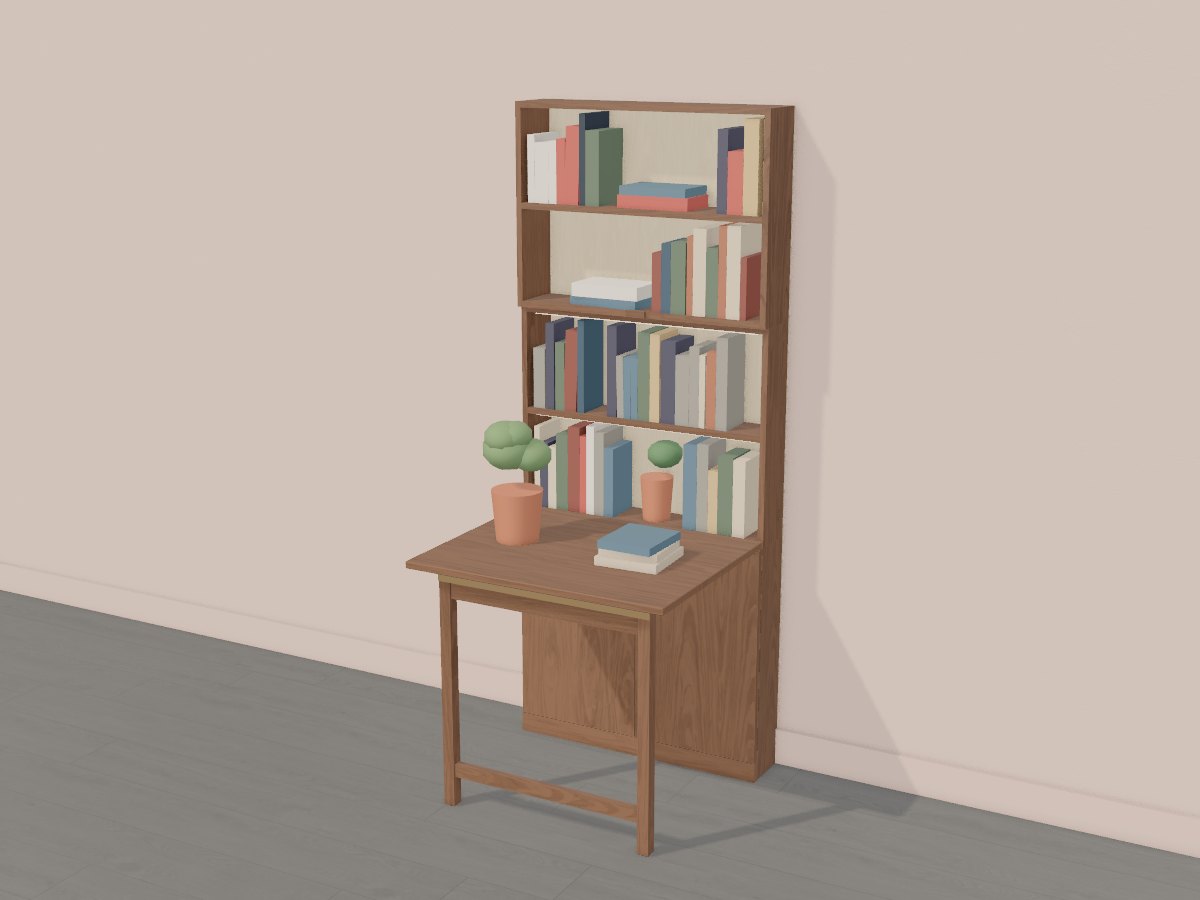

The 3D model
