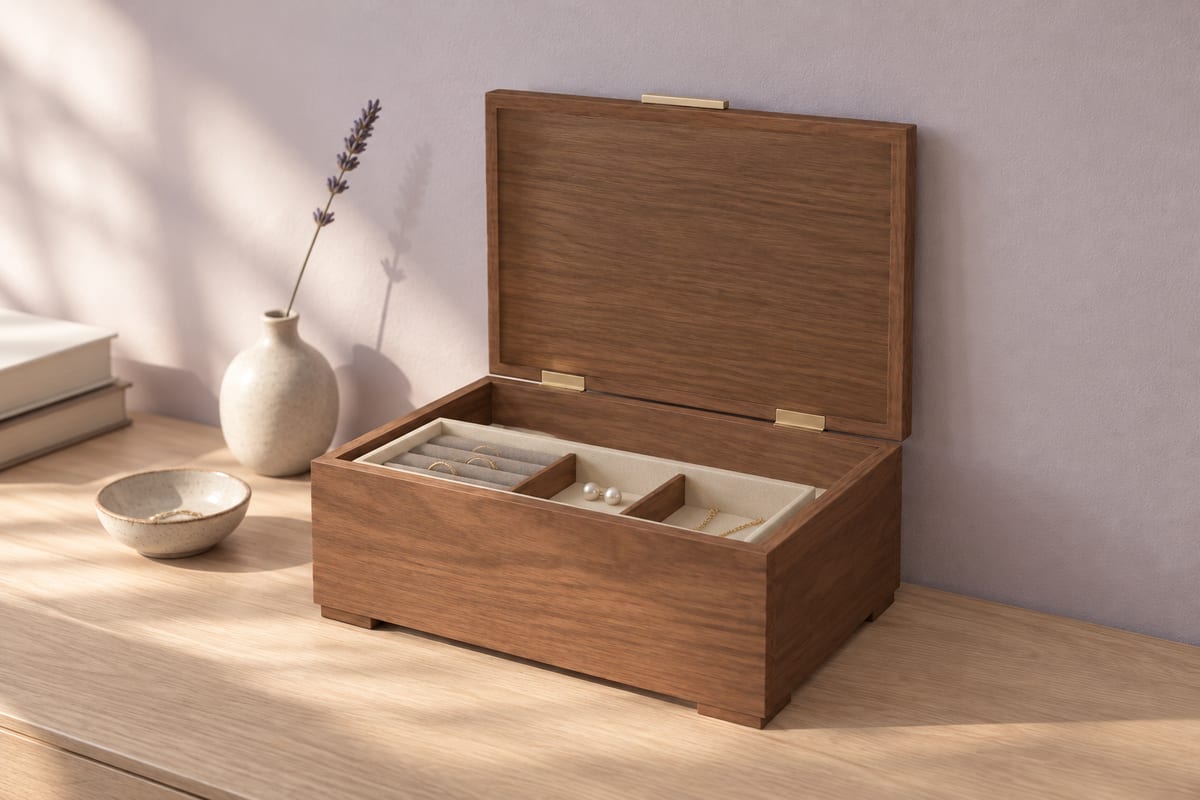

Walnut jewellery box with a lift-out tray
A walnut jewellery box with a hard maple tray that lifts out or slides back on maple runners, so rings, studs and the necklaces underneath all live in one 320mm footprint instead of three dishes. Rabbeted corners, a felt-lined floor split into a necklace bay and a bracelet bay, and brass quadrant hinges that hold the lid open on their own.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 320 x 236 x 336 mm12 5/8" x 9 5/16" x 13 1/4"
- Parts to cut
- 21
- Build steps
- 32
- Boards
- 4
- Sheets
- 1
- Solid wood
- 1.2 bd ft
- Weight
- 2.3 kg5 lb
Materials
- Black walnut
- Hard maple
- Birch plywood
Finish
- Finishing oil - Hardwax oil, satin
- Clear finish - Water-based clear lacquer, matt, matte
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Table saw
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 1 x Self-adhesive felt sheet, warm grey, 2mm
- 1 x Velvet ring rolls, warm grey, 20mm
- 1 x Brass quadrant stay hinges for boxes, 40mm, pair
Cut list
The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Bottom | 308 x 208 x 612 1/8" x 8 3/16" x 1/4" | Birch plywood |
| B | 1 | Tray bottom | 278 x 104 x 610 15/16" x 4 1/8" x 1/4" | Birch plywood |
| C | 2 | Wall | 320 x 100 x 1212 5/8" x 3 15/16" x 1/2" | Black walnut |
| +17 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 21 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 32 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

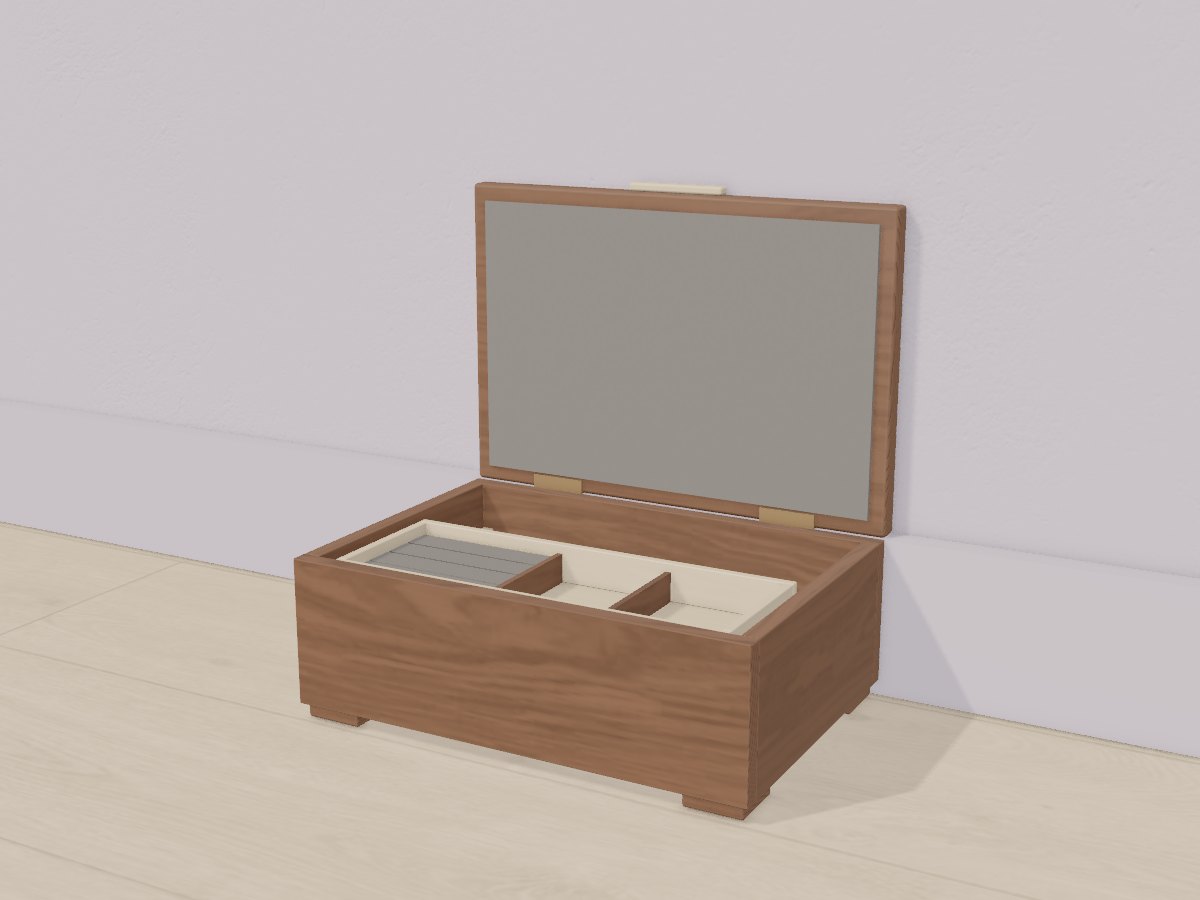

The 3D model
