Cherry tall dresser
A tall chest of drawers in solid cherry, oiled so it deepens to a warm red-brown over the years: graduated drawers from two deep ones at the bottom to a pair of small ones at the top, on short square legs, with slim brass bar pulls and an overhanging top. Two anti-tip brackets hold it to the wall.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 930 x 515 x 1245 mm36 5/8" x 20 1/4" x 49"
- Parts to cut
- 61
- Build steps
- 59
- Boards
- 10
- Sheets
- 3
- Solid wood
- 40.7 bd ft
- Weight
- 106.3 kg234 lb
Materials
- Birch plywood
- Cherry
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
- 12 x Side-mount drawer slide, 400mm
- 6 x Bar pull, 128mm centres, brushed brass
Cut list
The first 3 of 42 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Deep - Drawer 1 box | 826.5 x 228 x 1232 9/16" x 9" x 1/2" | Birch plywood |
| B | 1 | Deep - Drawer 1 bottom | 826.5 x 388 x 632 9/16" x 15 1/4" x 1/4" | Birch plywood |
| C | 2 | Deep - Drawer 2 box | 826.5 x 228 x 1232 9/16" x 9" x 1/2" | Birch plywood |
| +56 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 61 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 59 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

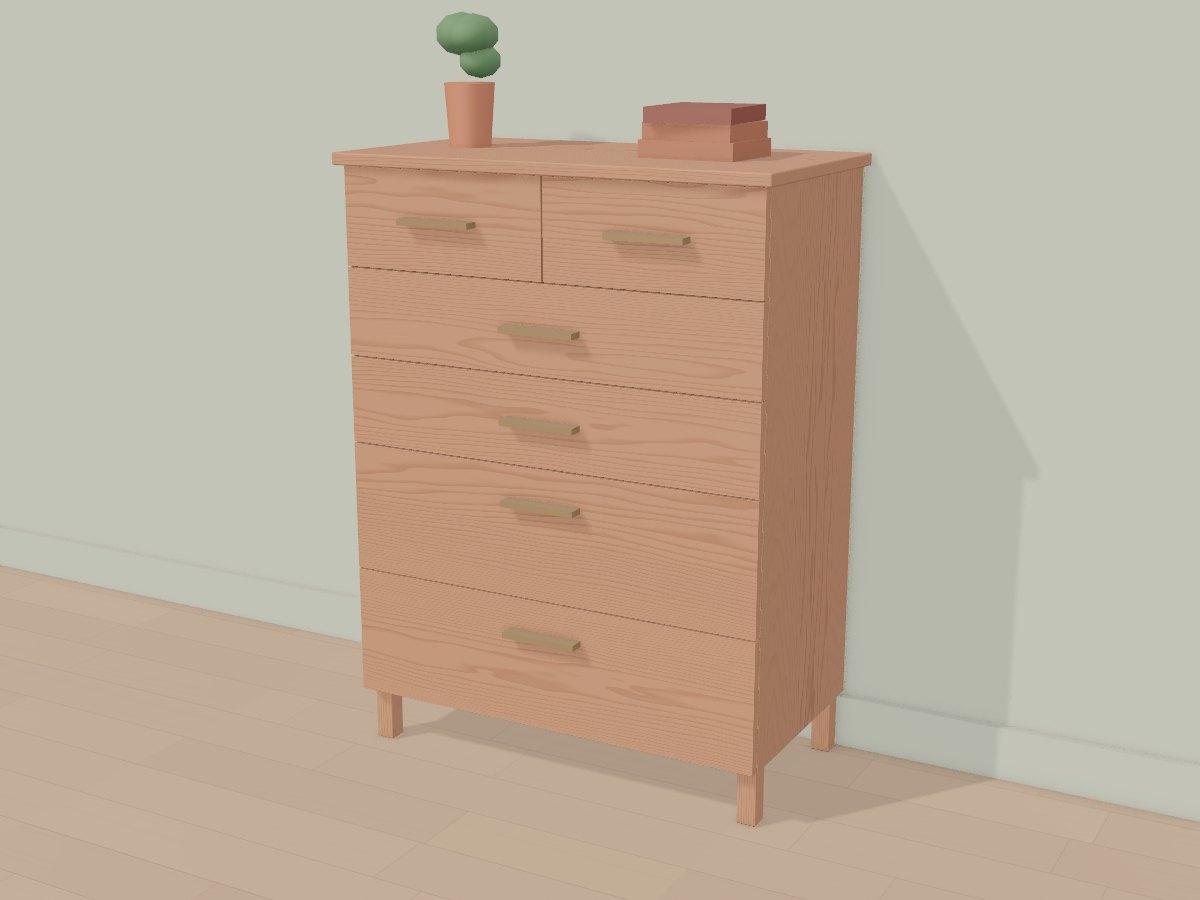

The 3D model
