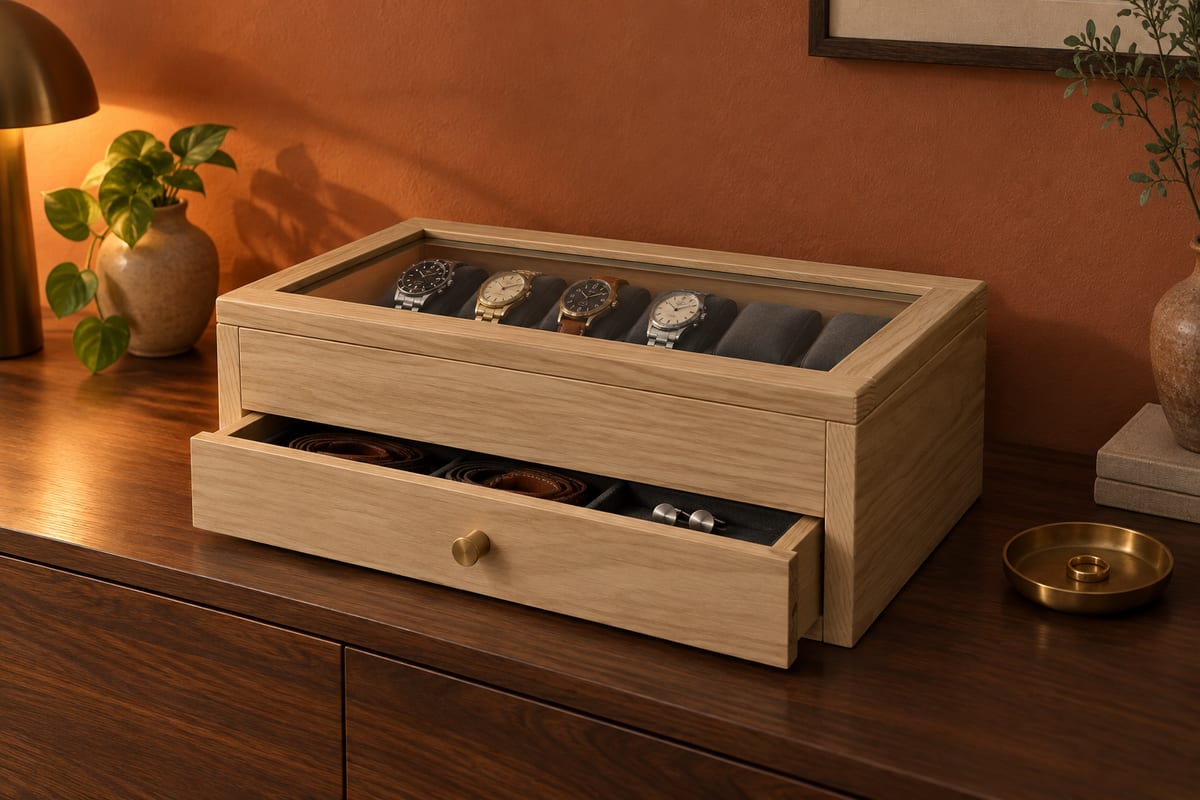

Oak watch box with a glass lid

An oak watch box for eight watches under a glazed lid, so the collection is on show and dust-free at once, with a felt-lined drawer underneath for spare straps, cufflinks and the tools to change them. The drawer runs on maple runners in grooved sides, with no metal slides to take up room.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

380 x 247 x 138 mm14 15/16" x 9 3/4" x 5 7/16"

Parts to cut

19

Build steps

36

Boards

3

Sheets

2

Solid wood

1.2 bd ft

Weight

4.8 kg11 lb

Materials

• White oak
• Birch plywood
• Hard maple

Finish

• Finishing oil - Hardwax oil, natural matt, satin
• Clear finish - Water-based clear lacquer, matt, matte

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Dowel jig
• Sandpaper
• Brush

Hardware and fittings

• 1 x Wool felt, charcoal, 2mm, 50 x 50cm
• 1 x Solid brass mushroom knob, 16mm
• 8 x Watch pillow, charcoal felt over foam, 75 x 65mm
• 1 x Toughened glass, 4mm, polished edges
• 1 x Solid brass box hinges, 40 x 30mm, with a 90-degree lid stay

Cut list

The first 3 of 14 lines, in millimetres (inches below), finished size including joint allowances.

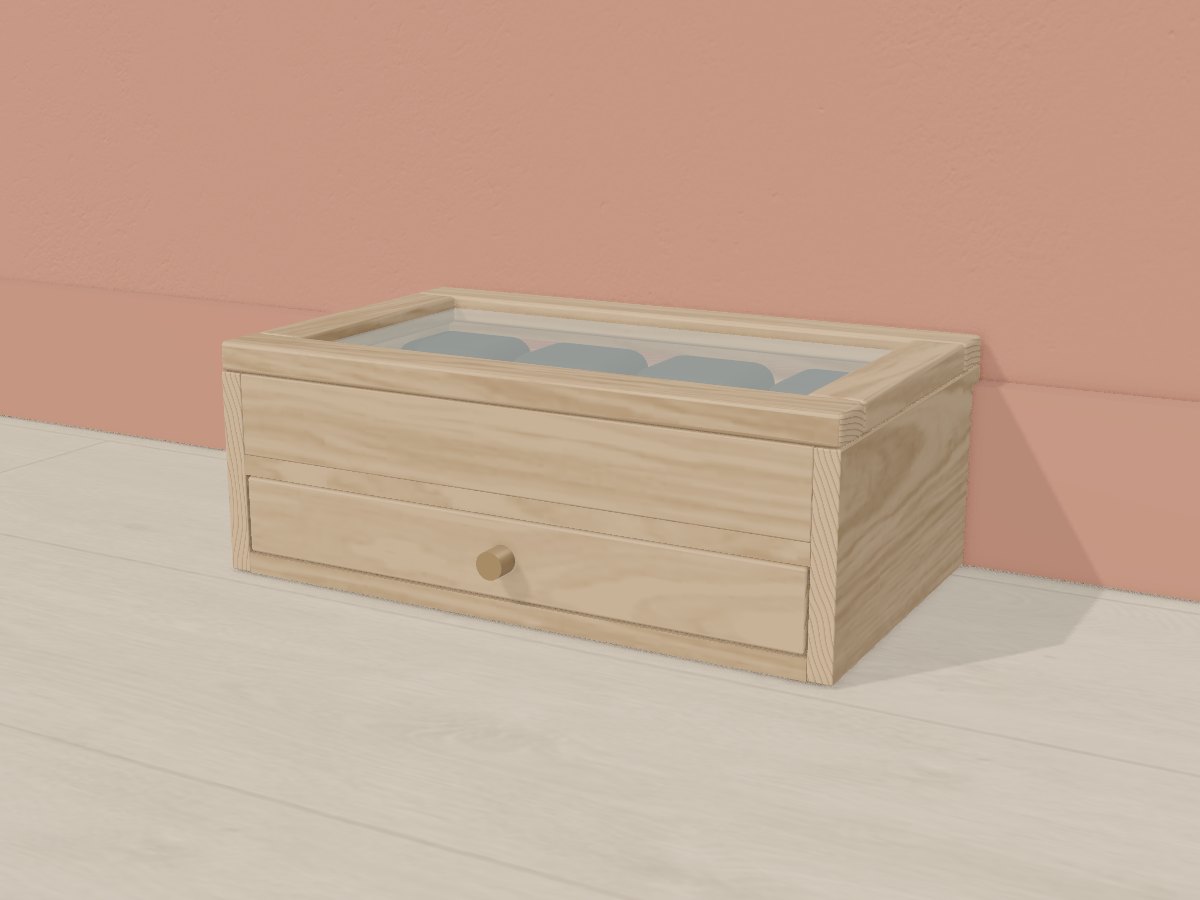

The 3D model
