Walnut hand-tool armoire

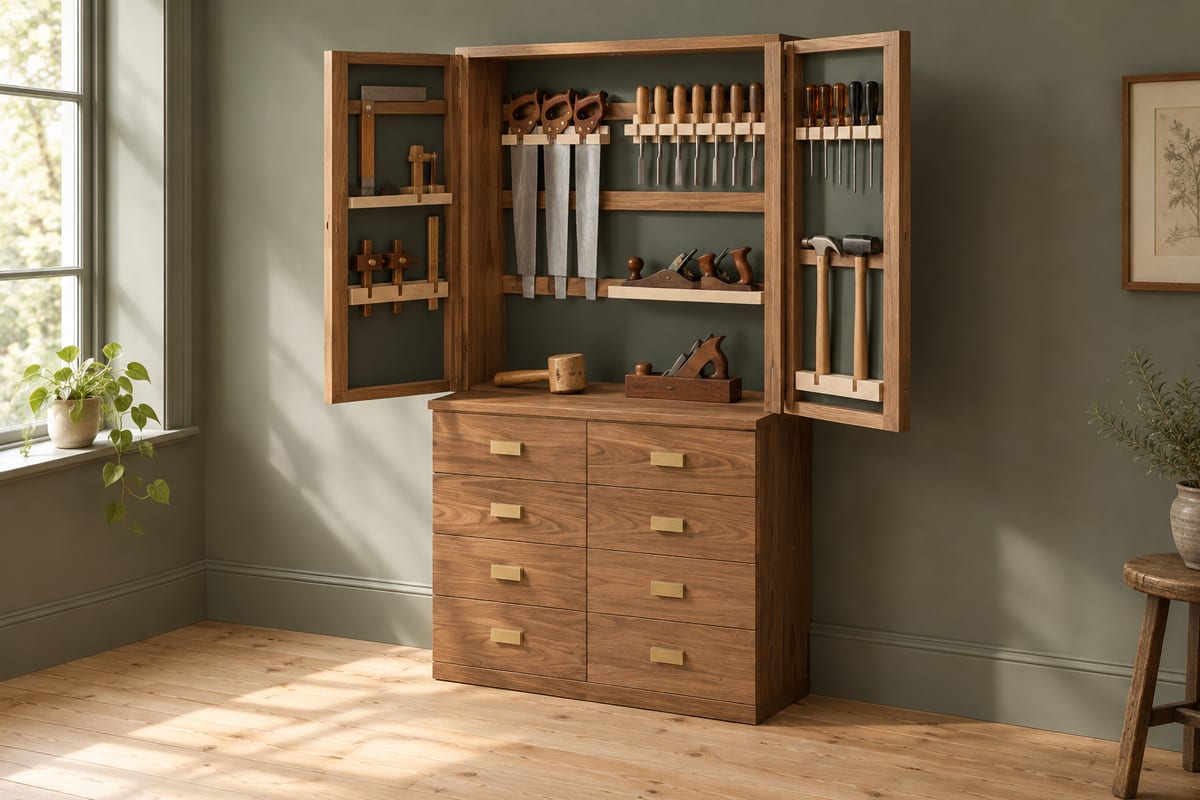

A walnut tool armoire for a hand-tool shop: eight graduated drawers for planes and boxes below, and above, a shallow case whose deep doors are boxes themselves, lined with French cleats so squares, gauges, drivers and hammers hang on the doors and saws, planes and chisels behind them. Every holder lifts off and moves; the whole kit stands in a metre of wall.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1480 x 736 x 1968 mm58 1/4" x 28 15/16" x 77 1/2"

Parts to cut

98

Build steps

85

Boards

22

Sheets

5

Solid wood

58.6 bd ft

Weight

180.9 kg399 lb

Materials

• Birch plywood
• Black walnut
• Hard maple

Finish

• Finishing oil - Hardwax oil, satin
• Paint - deep spruce green, matte

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 1 x Your hand tools (not part of this build)
• 2 x Piano hinge, 1050mm, brass
• 16 x Side-mount drawer slide, 450mm
• 8 x Cup pull, 96mm centres, brushed brass

Cut list

The first 3 of 67 lines, in millimetres (inches below), finished size including joint allowances.

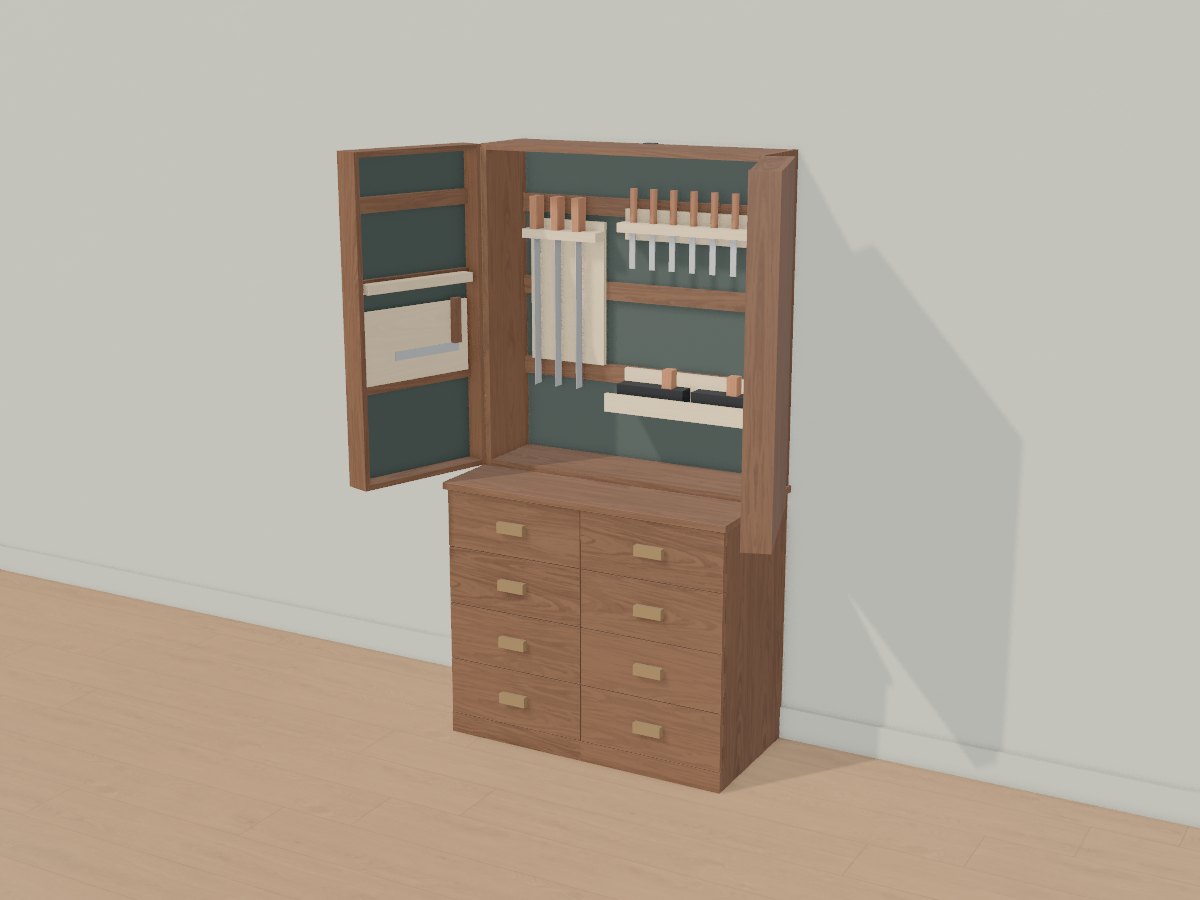

The 3D model
