Garage bike and garden wall

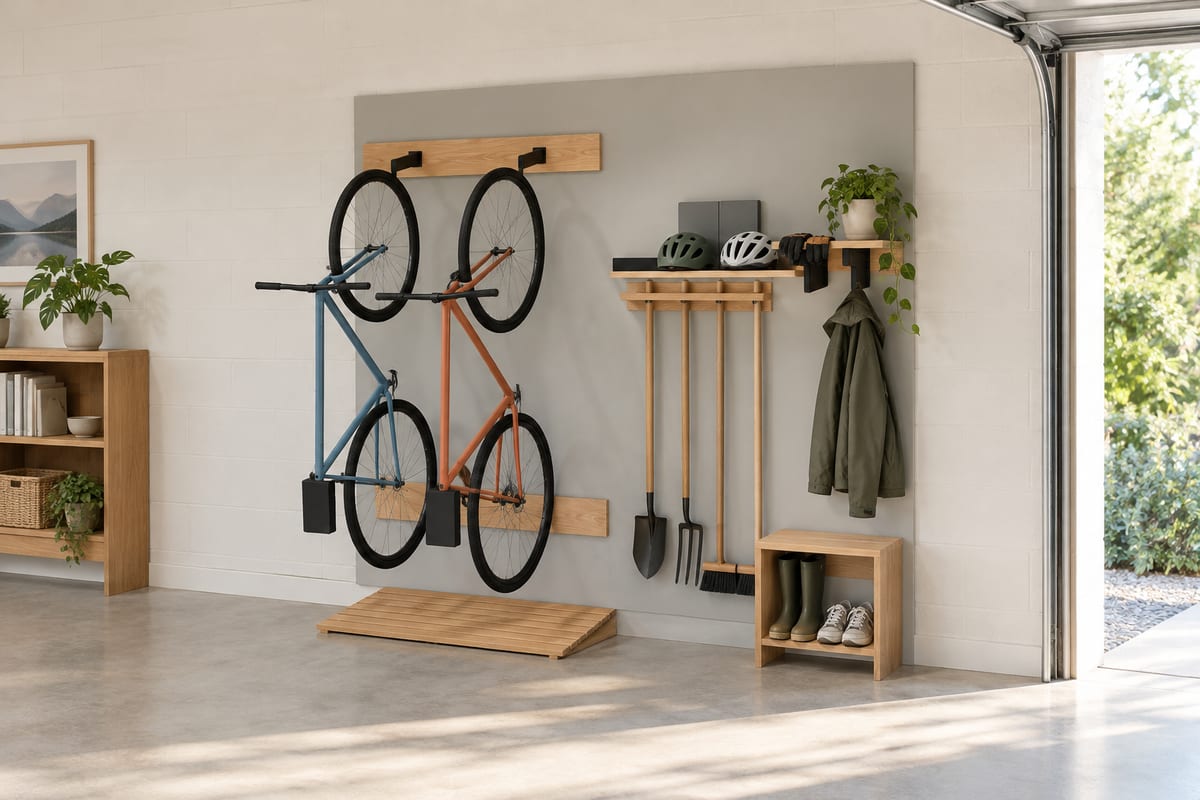

Two bikes, the long-handled garden tools, boots and helmets off the garage floor and onto 2.4m of dove-grey wall: bikes hang by the front wheel with their rear tyres resting on an oak bumper strip so the paint stays clean, spades and rakes stand head-up through a slotted oak rail, and a slatted boot bench sits under a helmet shelf.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2400 x 962 x 2400 mm94 1/2" x 37 7/8" x 94 1/2"

Parts to cut

25

Build steps

48

Boards

10

Sheets

2

Solid wood

20.3 bd ft

Weight

214.2 kg472 lb

Materials

• Red oak
• Birch plywood

Finish

• Paint - dove grey, matte
• Finishing oil - Hardwax oil, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 1 x Structural screws, 6 x 70mm, into every stud at 400mm
• 2 x Vinyl-coated bike hook, screw-in, 150mm
• 1 x Your bicycles (not part of this build)
• 1 x Your garden tools (not part of this build)
• 3 x Double coat hook, black steel
• 2 x Black steel shelf bracket, 200mm

Cut list

The first 3 of 13 lines, in millimetres (inches below), finished size including joint allowances.

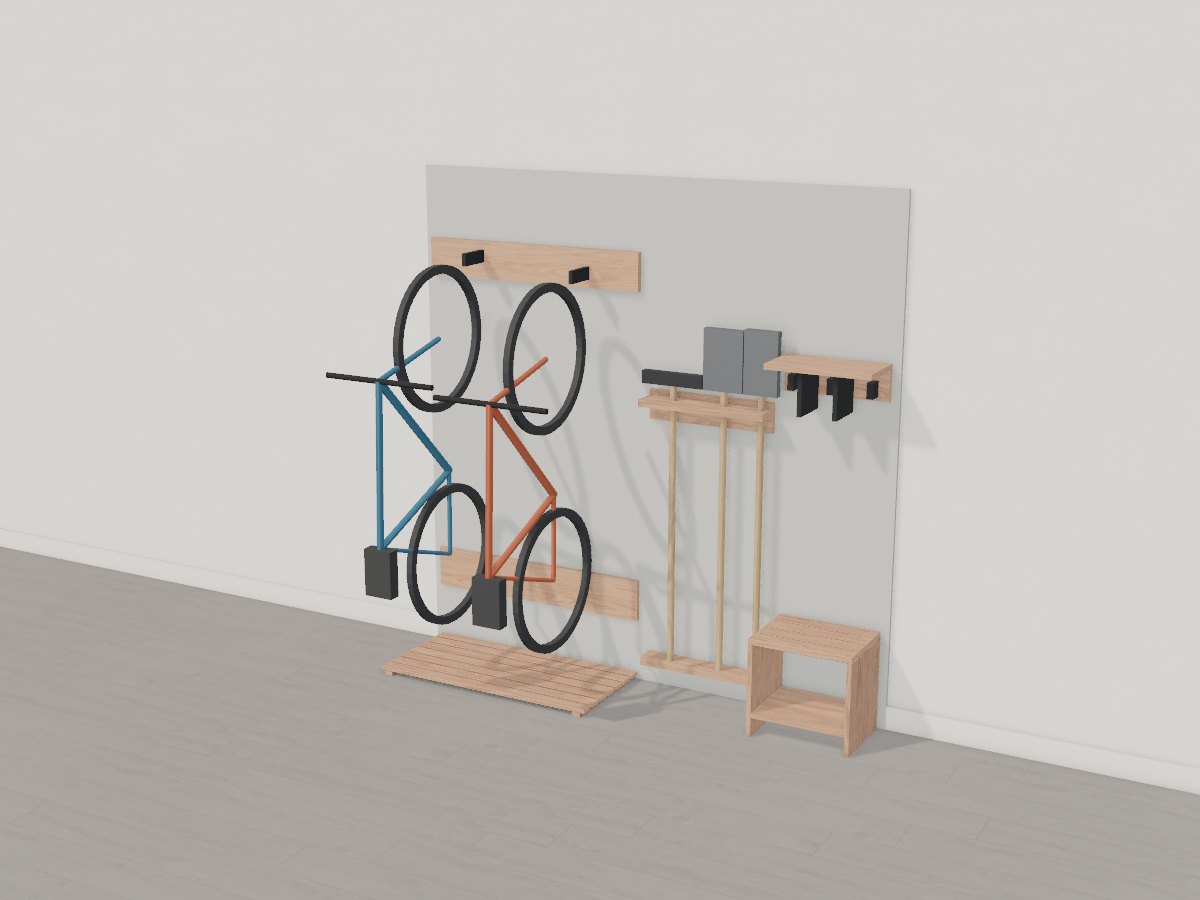

The 3D model
