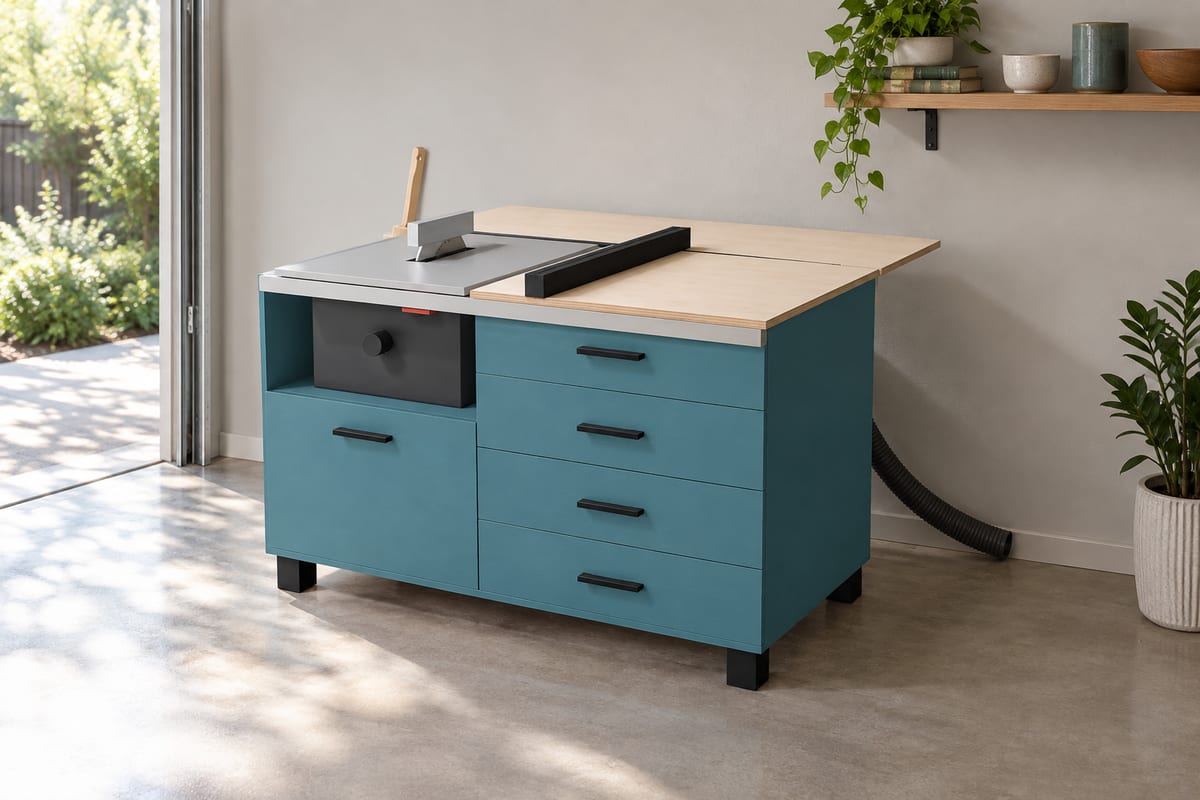

Mobile table saw base with outfeed

A petrol-blue rolling base that sinks a jobsite saw into a well so its table is dead flush with an oak-edged wing, with fence rails run across the wing for 900mm rips. A leaf folds up behind on locking brackets as outfeed and drops flat when it parks; the dust bin drawer sits right under the blade and four drawers hold blades and jigs.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1460 x 1290 x 980 mm57 1/2" x 50 13/16" x 38 9/16"

Parts to cut

48

Build steps

74

Boards

4

Sheets

7

Solid wood

8.3 bd ft

Weight

769.7 kg1697 lb

Materials

• Birch plywood
• White oak

Finish

• Paint - petrol blue, satin
• Clear finish - Water-based lacquer, matt, matte
• Finishing oil - Hardwax oil, satin
• Paint - yellow ochre, satin

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Table saw
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
• 1 x Your 254mm jobsite table saw (not part of this build)
• 1 x Aluminium fence rail extension, 1400mm, with the saw fence
• 1 x Piano hinge, 1200mm, steel
• 2 x Folding shelf bracket, heavy duty, 400mm, locking
• 1 x Your push sticks (not part of this build)
• 10 x Side-mount drawer slide, 600mm
• 5 x Bar pull, 128mm centres, matt black

Cut list

The first 3 of 36 lines, in millimetres (inches below), finished size including joint allowances.

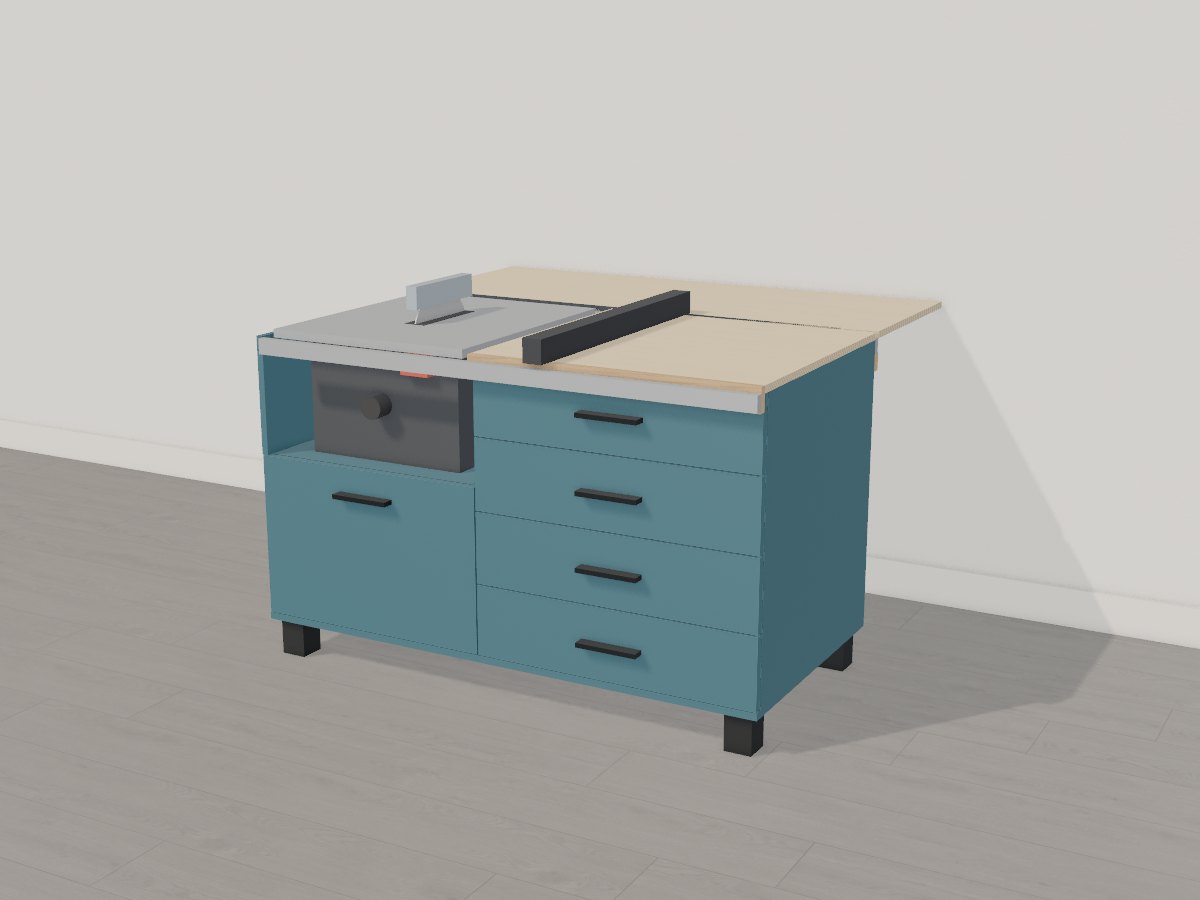

The 3D model

More workshop & garage designs

• Garage bike and garden wall Two bikes, the long-handled garden tools, boots and helmets off the garage floor and onto 2.4m of dove-grey wall: bikes hang by the front wheel with their rear tyres resting on an oak bumper strip so the paint stays clean, spades and rakes stand head-up through a slotted oak rail, and a slatted boot bench sits under a helmet shelf.

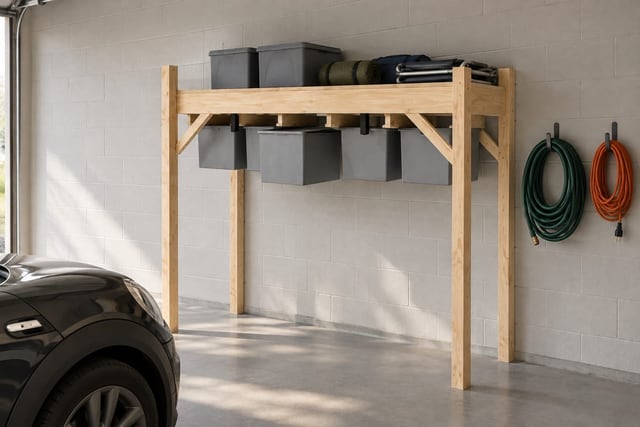

• Over-bonnet garage storage loft The unused space above the car bonnet, put to work: a sealed pine loft on four doubled posts with a plywood deck at 2.1m for bulky things, and underneath it five lidded totes that hang by their rims between plywood runners and slide out like drawers. The car noses in underneath; nothing lives on the floor.

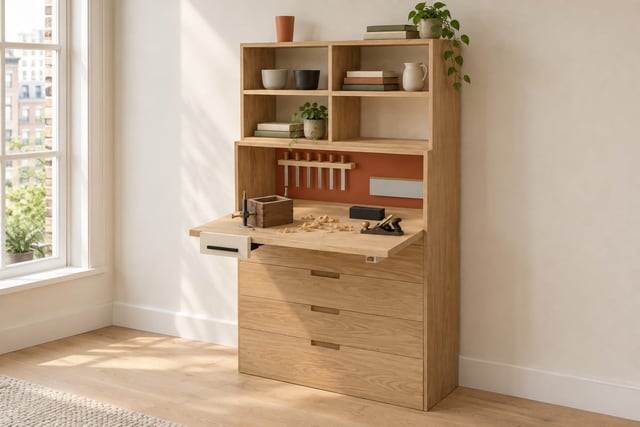

• Apartment fold-away workbench A white oak hutch for a flat with no workshop: closed, it is a bookcase over a chest of drawers; fold the worktop down onto its two maple lopers and it opens into an 840mm-deep bench with a face vise, a terracotta tool wall, chisels and a saw at hand, and four drawers of planes and boxes below.
