Over-bonnet garage storage loft

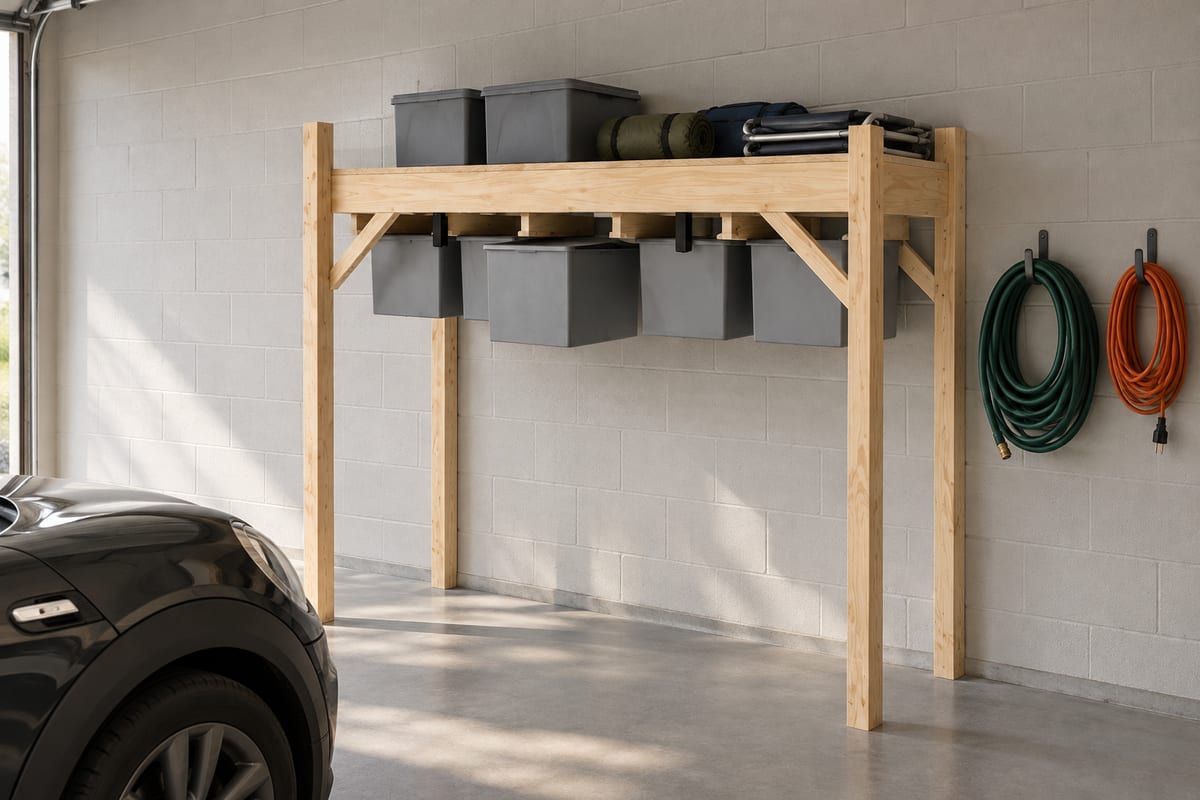

The unused space above the car bonnet, put to work: a sealed pine loft on four doubled posts with a plywood deck at 2.1m for bulky things, and underneath it five lidded totes that hang by their rims between plywood runners and slide out like drawers. The car noses in underneath; nothing lives on the floor.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2400 x 1215 x 2412 mm94 1/2" x 47 13/16" x 94 15/16"

Parts to cut

30

Build steps

19

Boards

12

Sheets

1

Solid wood

66.8 bd ft

Weight

684.3 kg1509 lb

Materials

• Pine (eastern white)
• Birch plywood

Finish

• Clear finish - Exterior water-based sealer, matt, matte

Tools

• Saw
• Square
• Tape
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 12 x Lidded storage tote, 60 litre, with a 20mm rim
• 2 x Heavy cord and hose hook, black steel

Cut list

The first 3 of 13 lines, in millimetres (inches below), finished size including joint allowances.

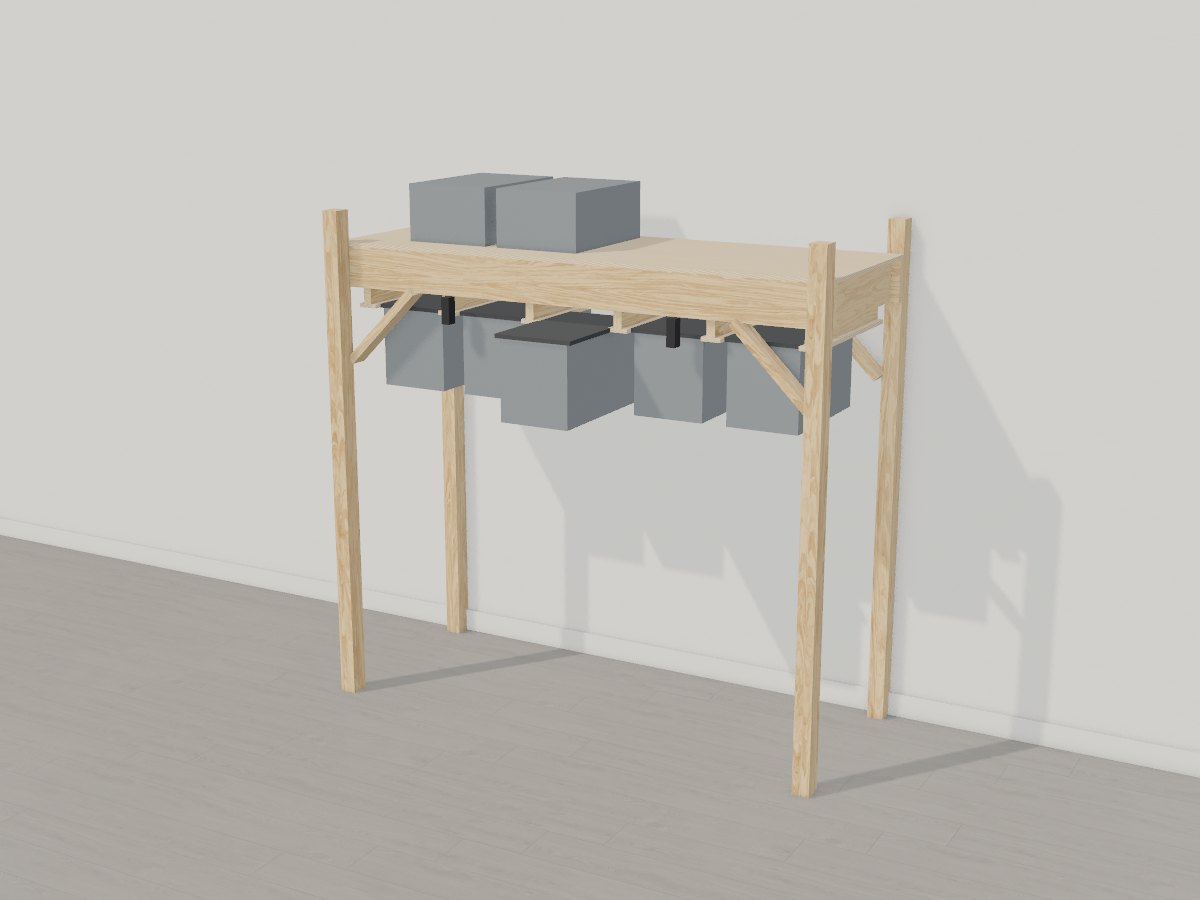

The 3D model
