Walnut desk docking station

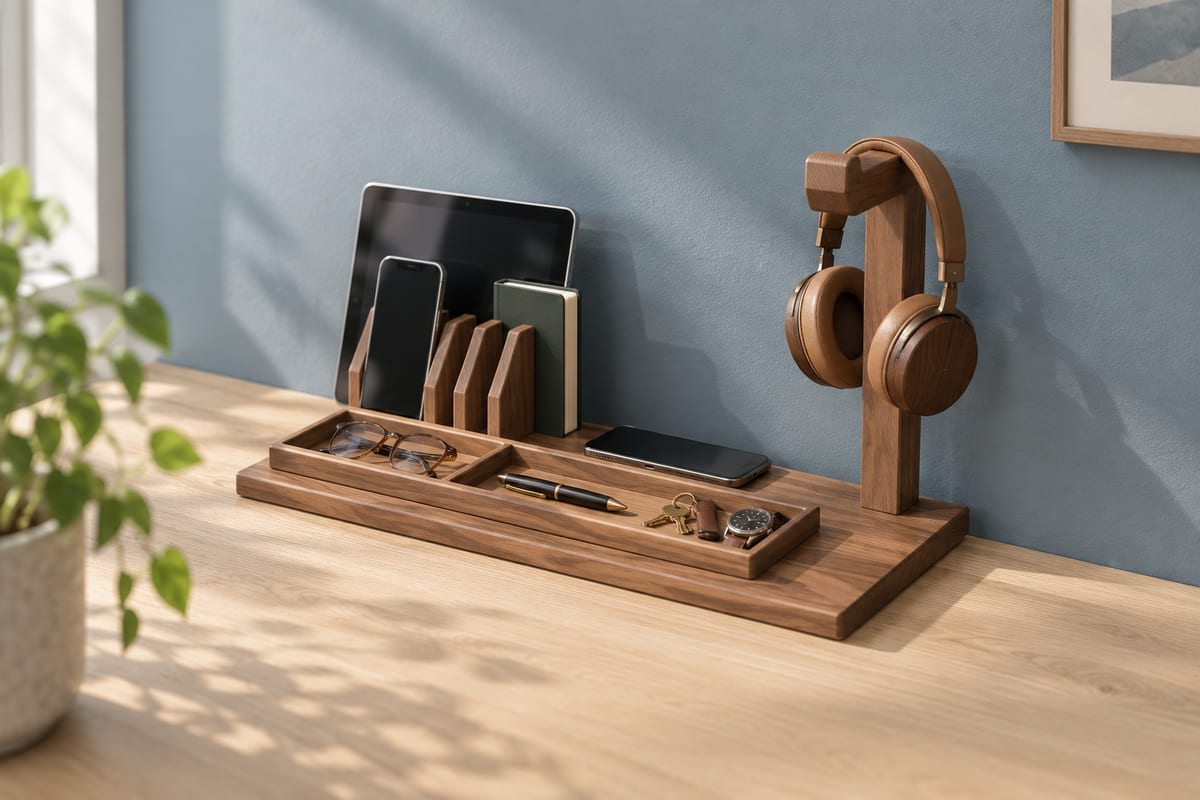

A walnut docking station that clears the front of a desk in one stroke: leather-padded slots for a tablet, two phones and a notebook, a valet tray for keys, pens and a watch, a wireless charging pad let in flush, and a headphone arm on a tenoned post. Every cable runs out the back under the base, so nothing trails across the work surface.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 520 x 220 x 302 mm20 1/2" x 8 11/16" x 11 7/8"
- Parts to cut
- 13
- Build steps
- 25
- Boards
- 3
- Solid wood
- 1.5 bd ft
- Weight
- 2.1 kg5 lb
Materials
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Chisel
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Self-adhesive cork pads, 40mm square, 6mm
- 1 x Vegetable-tanned leather offcut, 2-3mm, tan
- 1 x Wireless charging pad, 90mm, USB-C
Cut list
The first 3 of 8 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Base | 520 x 220 x 2020 1/2" x 8 11/16" x 13/16" | Black walnut |
| B | 2 | Tray rim | 410 x 22 x 816 1/8" x 7/8" x 5/16" | Black walnut |
| C | 1 | Headphone post | 274 x 32 x 3210 13/16" x 1 1/4" x 1 1/4" | Black walnut |
| +9 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 13 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 25 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

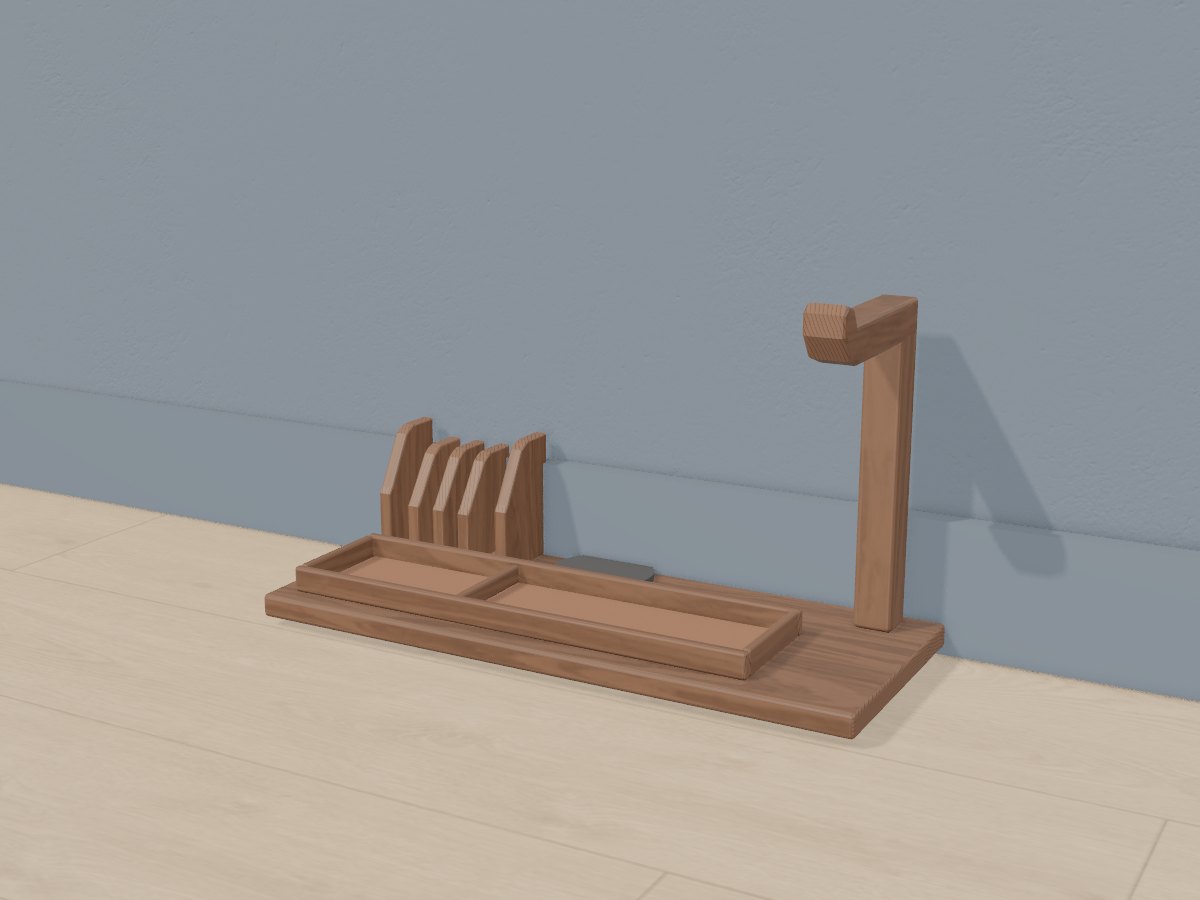

The 3D model
