Artist's plan chest

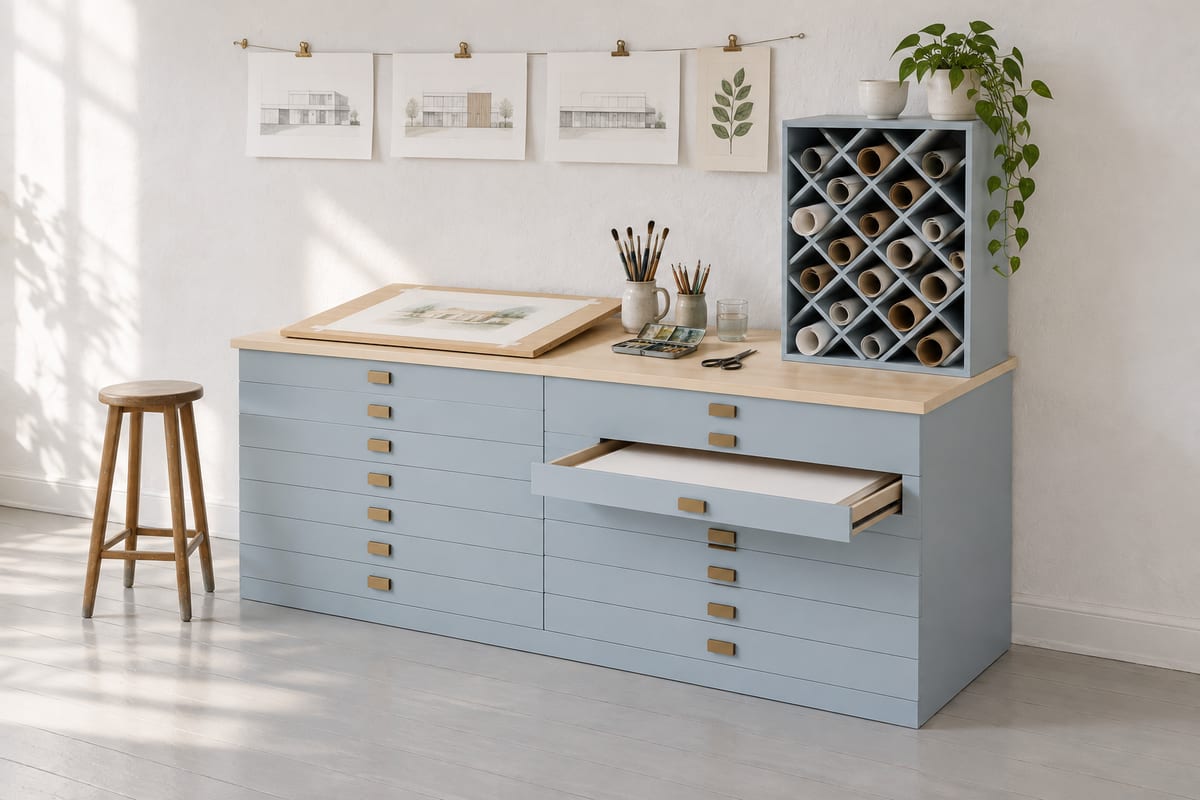

Two eight-drawer plan chests side by side in French grey-blue, under one long oiled maple top big enough to spread out a print. Sixteen shallow drawers with brass cup pulls hold A1 paper flat, a drawing board sits on maple rests at one end of the top, and a diamond lattice at the other holds rolled drawings and paper.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2240 x 842 x 1715 mm88 3/16" x 33 1/8" x 67 1/2"
- Parts to cut
- 128
- Build steps
- 57
- Boards
- 6
- Sheets
- 14
- Solid wood
- 29.6 bd ft
- Weight
- 364.7 kg804 lb
Materials
- Birch plywood
- MDF
- Hard maple
Finish
- Finishing oil - Hardwax oil, matt
- Clear finish - Water-based lacquer, matt
- Paint - French grey-blue, eggshell
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Table saw
- Chisel
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 32 x Side-mount drawer slide, 600mm
- 16 x Cup pull, 96mm centres, brushed brass
Cut list
The first 3 of 85 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Chest left - Top | 1082 x 776 x 1842 5/8" x 30 9/16" x 11/16" | Birch plywood |
| B | 1 | Chest right - Top | 1082 x 776 x 1842 5/8" x 30 9/16" x 11/16" | Birch plywood |
| C | 1 | Chest left - Bottom | 1076 x 776 x 1842 3/8" x 30 9/16" x 11/16" | Birch plywood |
| +125 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 128 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 57 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

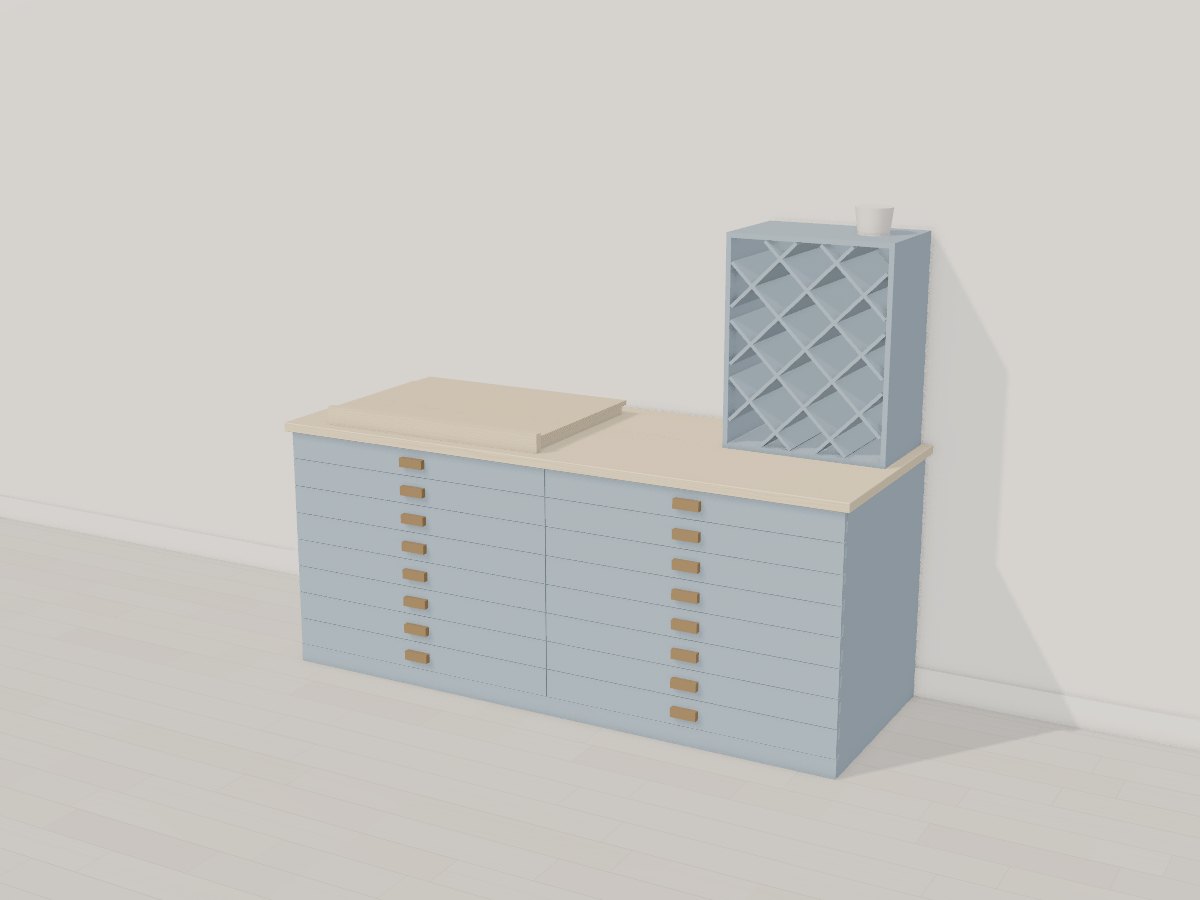

The 3D model
