Walnut command desk

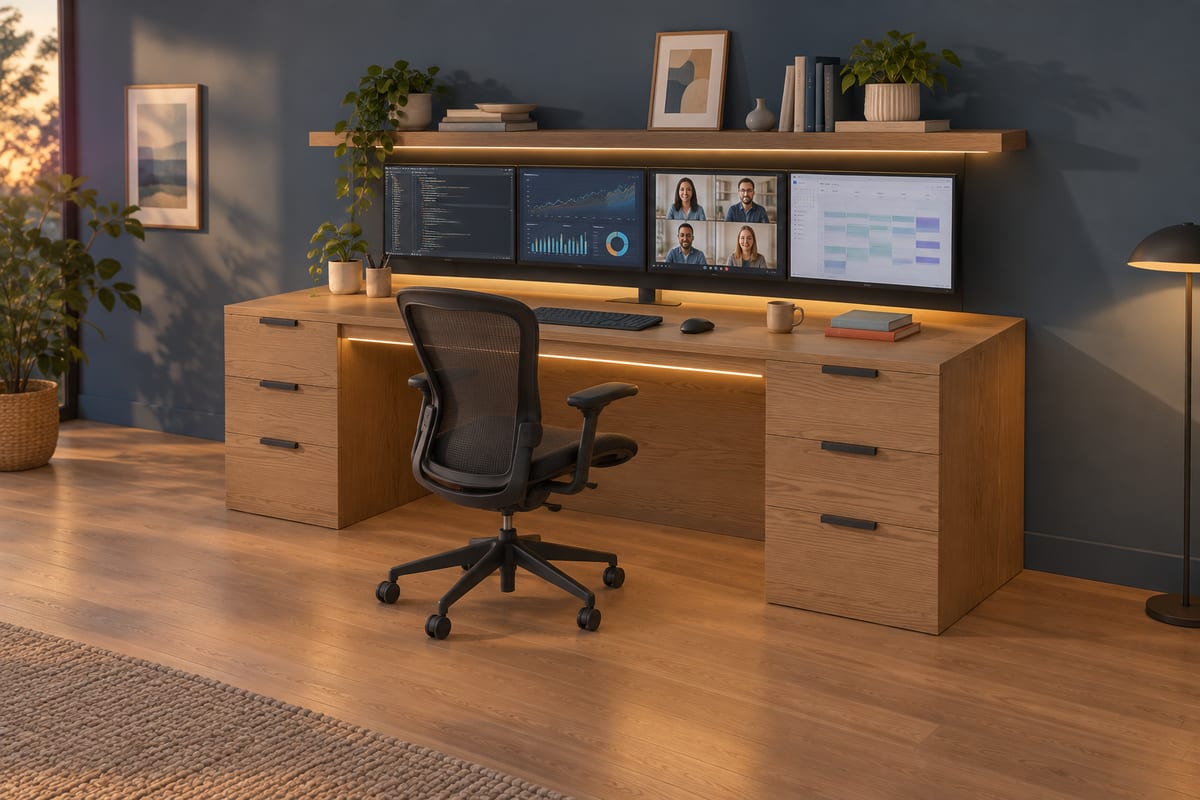

A 2.6-metre walnut desk with four monitors on a motorised lift behind it. Press the button and they sink into the back of the desk under a walnut lid that closes flush with the top. Two drawer pedestals, edge pulls and a warm LED strip along the front.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2600 x 1016 x 1150 mm102 3/8" x 40" x 45 1/4"
- Parts to cut
- 56
- Build steps
- 69
- Boards
- 23
- Sheets
- 2
- Solid wood
- 101.2 bd ft
- Weight
- 405.2 kg893 lb
Materials
- Birch plywood
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Pocket-hole jig
- Drill
- Router
- Clamps
- Table saw
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Plug-in LED strip kit, 12V, 2700K, in an aluminium channel with frosted diffuser
- 1 x 12 V dimmable LED driver
- 12 x Side-mount drawer slide, 600mm
- 6 x Edge pull, 150mm, matt black
- 1 x Motorised monitor lift for 4 monitors, 400mm travel
- 4 x Your monitors, 24 inch (not part of this build)
Cut list
The first 3 of 41 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Ped left - Back | 720 x 500 x 628 3/8" x 19 11/16" x 1/4" | Birch plywood |
| B | 1 | Ped right - Back | 720 x 500 x 628 3/8" x 19 11/16" x 1/4" | Birch plywood |
| C | 2 | Ped left - Drawer 1 side | 600 x 178 x 1223 5/8" x 7" x 1/2" | Birch plywood |
| +52 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 56 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 69 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

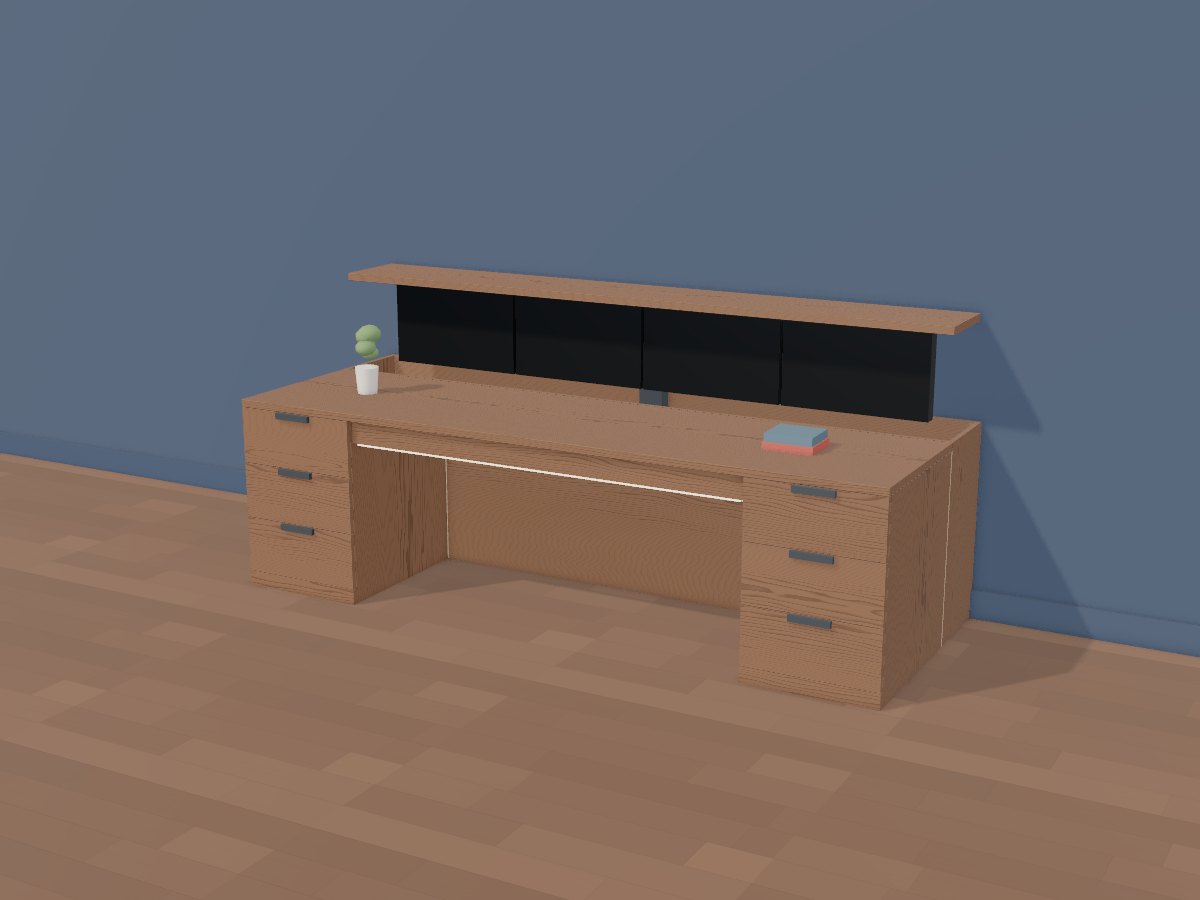

The 3D model
