Cherry corner desk
An L-shaped desk in oiled cherry that wraps a corner of the room: a long run against the wall, a return that reaches out on a pedestal of two deep file drawers, and a solid cherry end panel where the two meet. Brass cup pulls, a brass cable grommet and three cherry shelves above on brass brackets and slim cherry wall standards.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2200 x 1622 x 1850 mm86 5/8" x 63 7/8" x 72 13/16"
- Parts to cut
- 52
- Build steps
- 69
- Boards
- 14
- Sheets
- 2
- Solid wood
- 77.1 bd ft
- Weight
- 165.7 kg365 lb
Materials
- Birch plywood
- Cherry
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Pocket-hole jig
- Drill
- Router
- Clamps
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 6 x Solid brass shelf bracket, 180 x 110mm
- 1 x Brass desk cable grommet
- 6 x Side-mount drawer slide, 550mm
- 5 x Cup pull, 96mm centres, brushed brass
- 4 x Side-mount drawer slide, 500mm
Cut list
The first 3 of 39 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Ped main - Back | 720 x 450 x 628 3/8" x 17 11/16" x 1/4" | Birch plywood |
| B | 1 | Ped return - Back | 720 x 550 x 628 3/8" x 21 5/8" x 1/4" | Birch plywood |
| C | 2 | Ped main - Drawer 1 side | 550 x 176 x 1221 5/8" x 6 15/16" x 1/2" | Birch plywood |
| +48 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 52 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 69 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

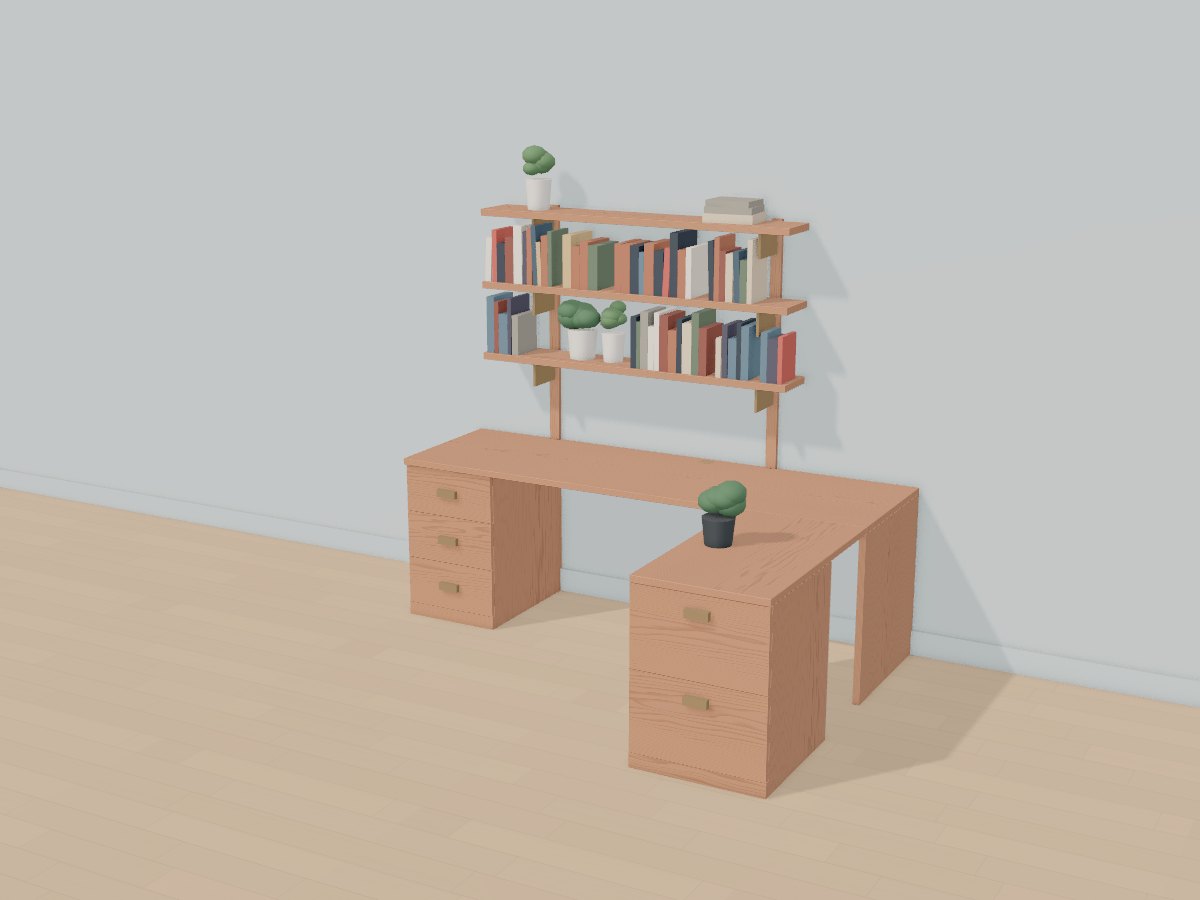

The 3D model
