Wall-hung pot-lid rack
A 520mm-wide walnut rack for the wall beside the hob: three housed ledges, each with a back rail and a polished 12mm brass rod in front, so lids stand on edge nested two or three deep and lean back against the rail. Lids are the most awkward thing in a kitchen cupboard; here eight of them live flat to the wall in 90mm of depth, each one lifted off with one hand.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 520 x 92 x 680 mm20 1/2" x 3 5/8" x 26 3/4"
- Parts to cut
- 8
- Build steps
- 11
- Boards
- 3
- Solid wood
- 2.6 bd ft
- Weight
- 5.1 kg11 lb
Materials
- Black walnut
Finish
- Finishing oil - food-safe hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Solid brass rod, 12mm
- 1 x Concealed wall fixing plates (anti-tip)
Cut list
The first 3 of 3 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Side | 680 x 90 x 1826 3/4" x 3 9/16" x 11/16" | Black walnut |
| B | 3 | Lid ledge | 508 x 70 x 2020" x 2 3/4" x 13/16" | Black walnut |
| C | 3 | Rail | 508 x 70 x 1620" x 2 3/4" x 5/8" | Black walnut |
Open this design in Crava to see the full cut list and plans - all 8 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 11 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

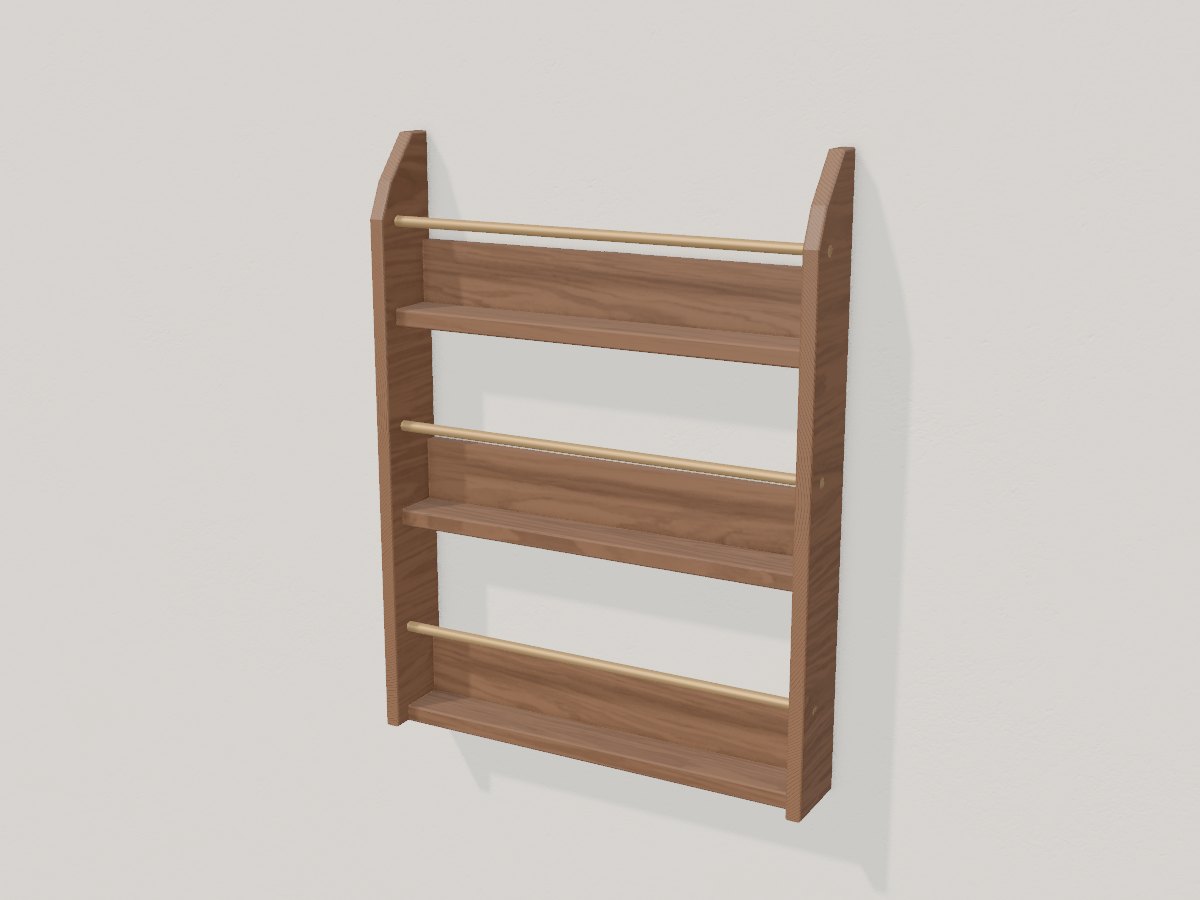

The 3D model
