Terracotta arch reading nook

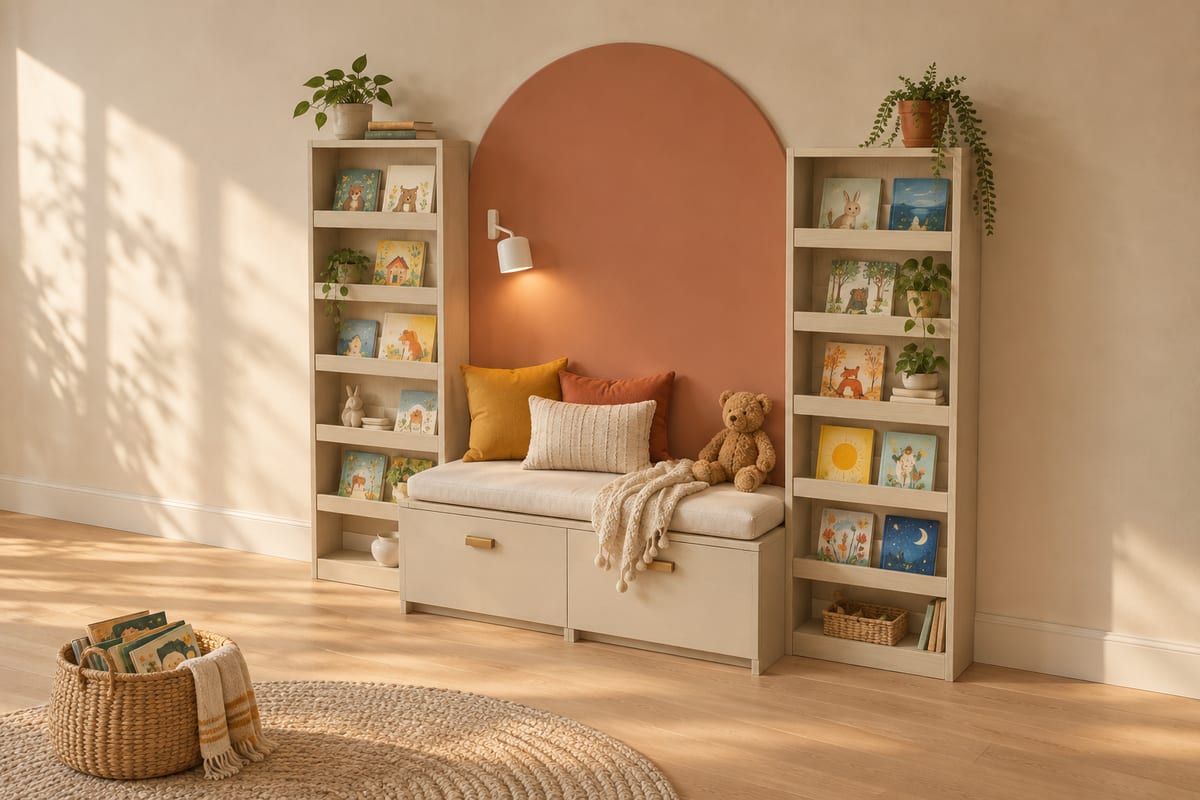

A kids’ reading nook built around a painted terracotta arch: a cushioned bench with two big toy drawers in front of it, a swing-arm light for bedtime stories, and on each side a shallow birch tower of forward-facing book ledges with maple lips, so covers face out at a child’s height and choosing a book is half the fun.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2200 x 463 x 1850 mm86 5/8" x 18 1/4" x 72 13/16"

Parts to cut

58

Build steps

51

Boards

2

Sheets

5

Solid wood

2.1 bd ft

Weight

124.9 kg275 lb

Materials

• Birch plywood
• Hard maple

Finish

• Paint - terracotta clay, matte
• Clear finish - Water-based clear lacquer, matt, toy-saf

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Clamps
• Table saw
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Box cushion, 90mm foam, in a washable oatmeal cover
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 4 x Side-mount drawer slide, 350mm
• 2 x Cup pull, 96mm centres, brushed brass
• 1 x Plug-in swing-arm reading light, matt black

Cut list

The first 3 of 36 lines, in millimetres (inches below), finished size including joint allowances.

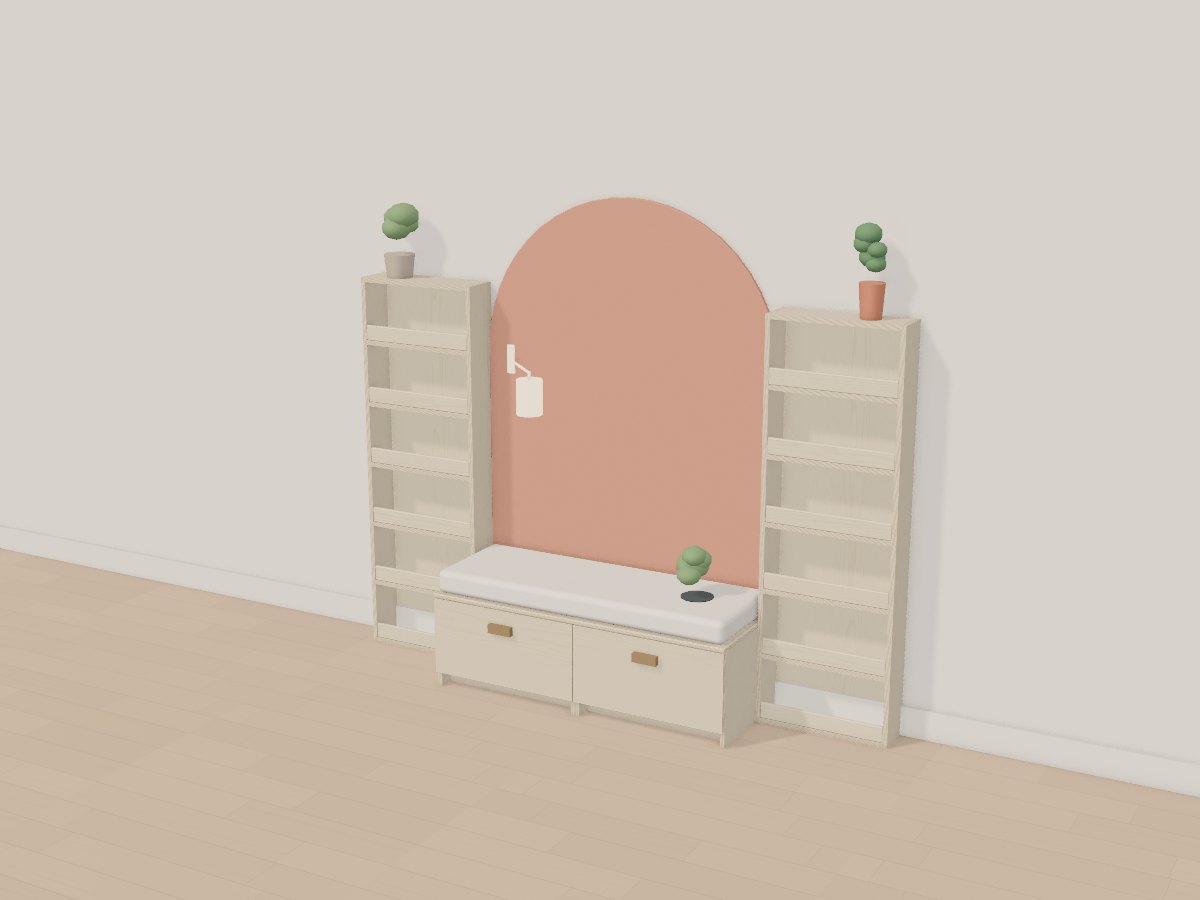

The 3D model
