• Kids
• Bookcase
• Dolls house
• Birch plywood
• Painted
• Storage

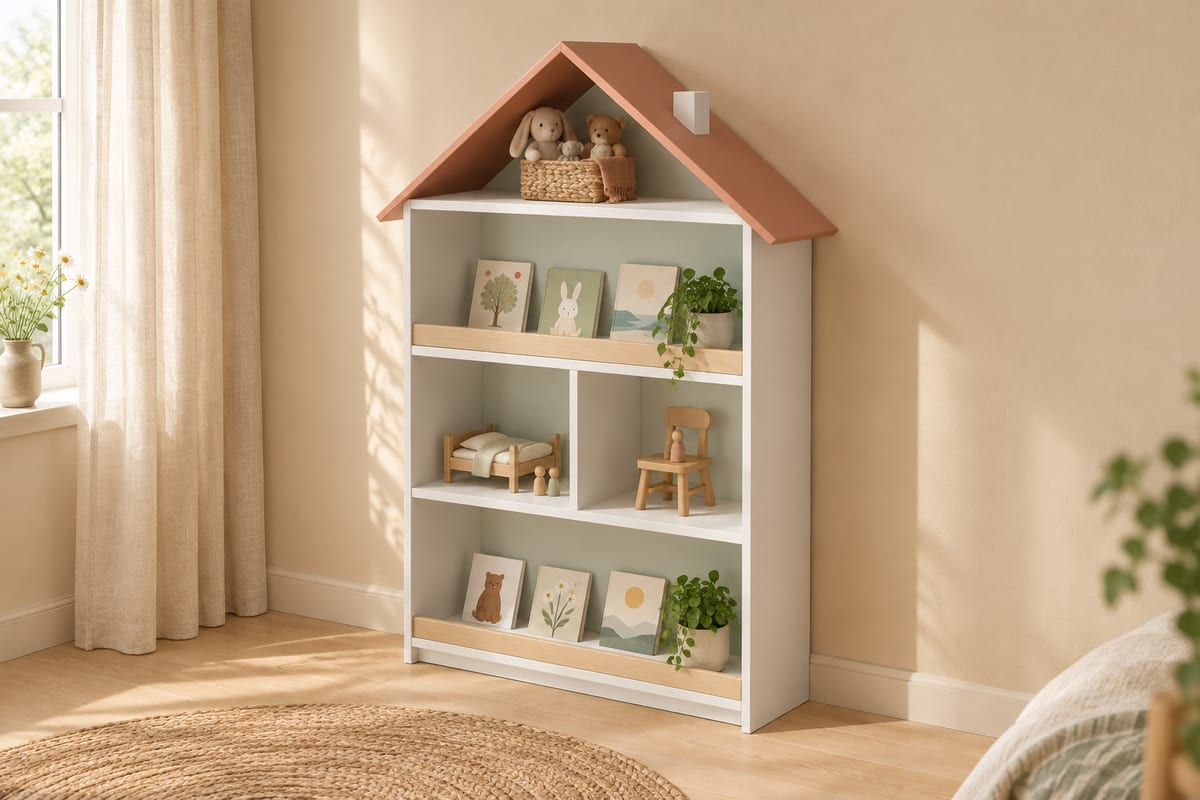

Dolls' house bookcase

A bookcase shaped like a little house, with a terracotta gable roof, a chimney and two rooms on the first floor, that works as a dolls' house and a library at once. Maple ledges on two floors stand picture books facing out so a child can choose by cover, it is anchored to the wall with two brackets, and every edge is rounded.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

942 x 330 x 1401 mm37 1/16" x 13" x 55 1/8"

Parts to cut

14

Build steps

21

Boards

2

Sheets

2

Solid wood

0.7 bd ft

Weight

30.5 kg67 lb

Materials

• Birch plywood
• Hard maple
• Poplar (paint grade)

Finish

• Paint - chalk white, toy-safe, satin
• Finishing oil - Hardwax oil, matt, toy-safe, satin
• Paint - terracotta, toy-safe, satin
• Paint - pale mint, toy-safe, matte

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Sandpaper
• Brush

Hardware and fittings

• 2 x Anti-tip furniture wall bracket, steel, with stud screws

Cut list

The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.

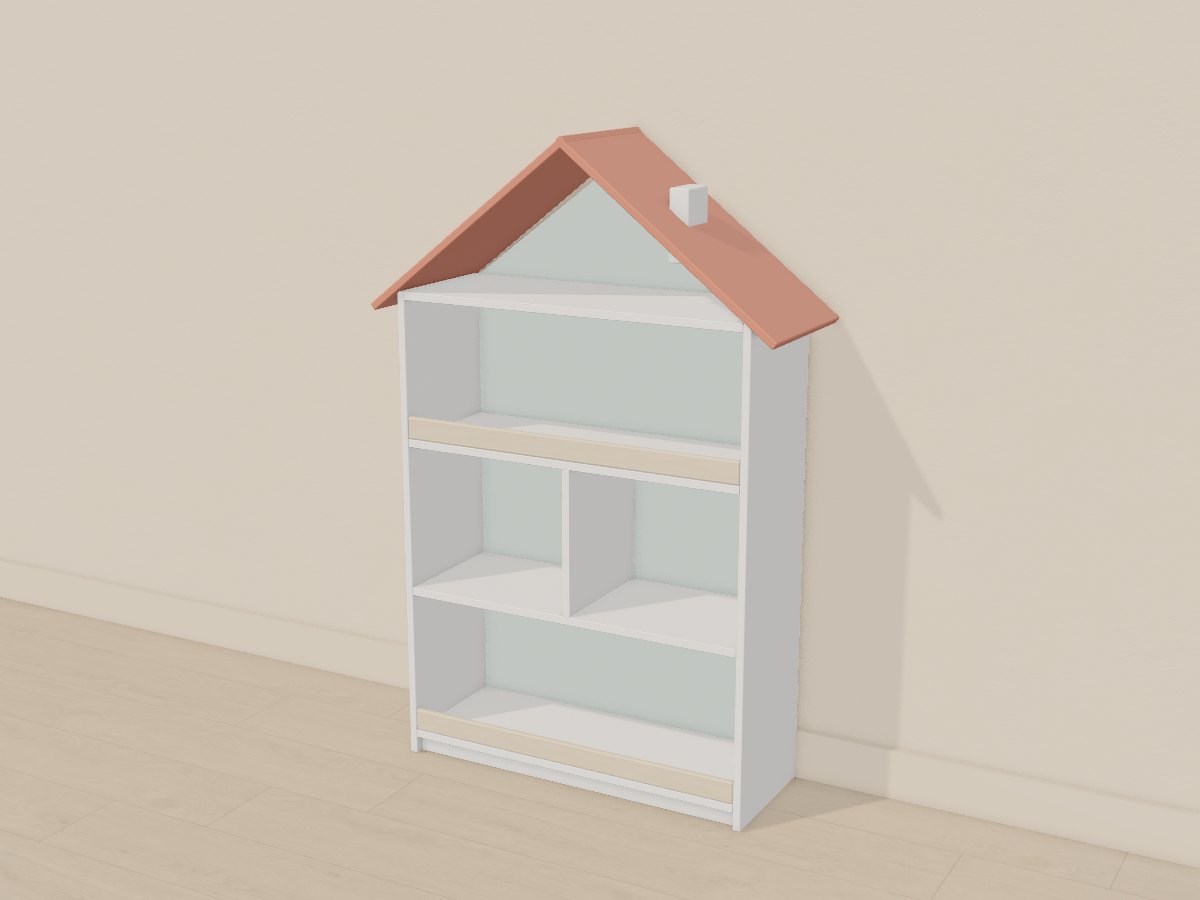

The 3D model
