Swing-arm planer workbench

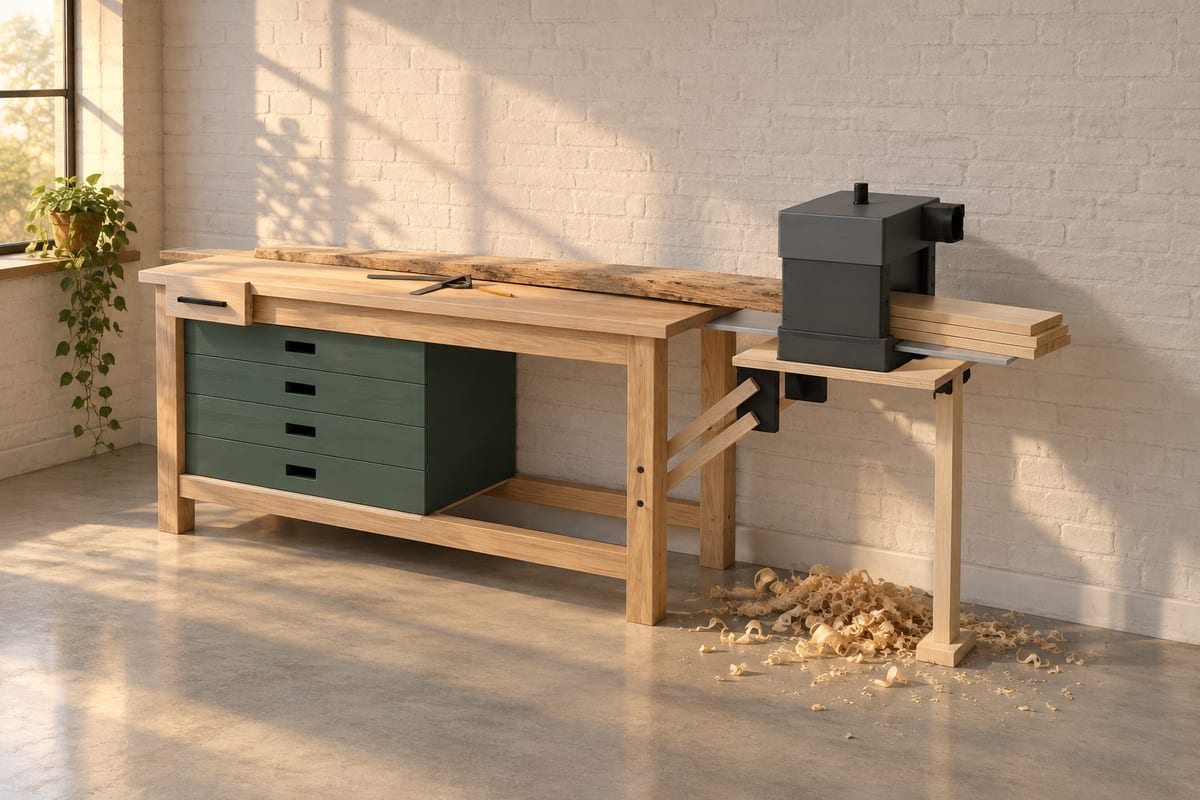

An oiled white oak and maple workbench whose planer lives on a parallelogram of maple arms: swung up, its bed sits dead level with the benchtop so the whole 1.8m bench becomes the infeed table; swung down, it tucks under the right-hand end and the top is clear again. A bottle-green drawer bank fills the left bay.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2672 x 698 x 1290 mm105 3/16" x 27 1/2" x 50 13/16"

Parts to cut

54

Build steps

63

Boards

11

Sheets

4

Solid wood

45.1 bd ft

Weight

460.1 kg1014 lb

Materials

• Birch plywood
• White oak
• Hard maple

Finish

• Finishing oil - Hardwax oil, satin
• Clear finish - Water-based lacquer, matt, matte
• Paint - black, satin
• Paint - bottle green, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Drill
• Table saw
• Sandpaper
• Brush

Hardware and fittings

• 2 x Bright steel shaft, 20mm, 630mm, with shaft collars
• 1 x Heavy strap hinge, 75mm, black
• 1 x Planer base: steel
• 1 x Planer infeed table: aluminium
• 1 x Planer outfeed table: aluminium
• 1 x Planer column, left: steel
• 1 x Planer column, right: steel
• 1 x Planer head: steel
• 1 x Planer height crank: steel
• 1 x Planer dust port: plastic
• 1 x Quick-release front vise, 230mm jaws, fitted with maple jaw faces
• 8 x Side-mount drawer slide, 450mm
• 4 x Cup pull, 96mm centres, matt black

Cut list

The first 3 of 33 lines, in millimetres (inches below), finished size including joint allowances.

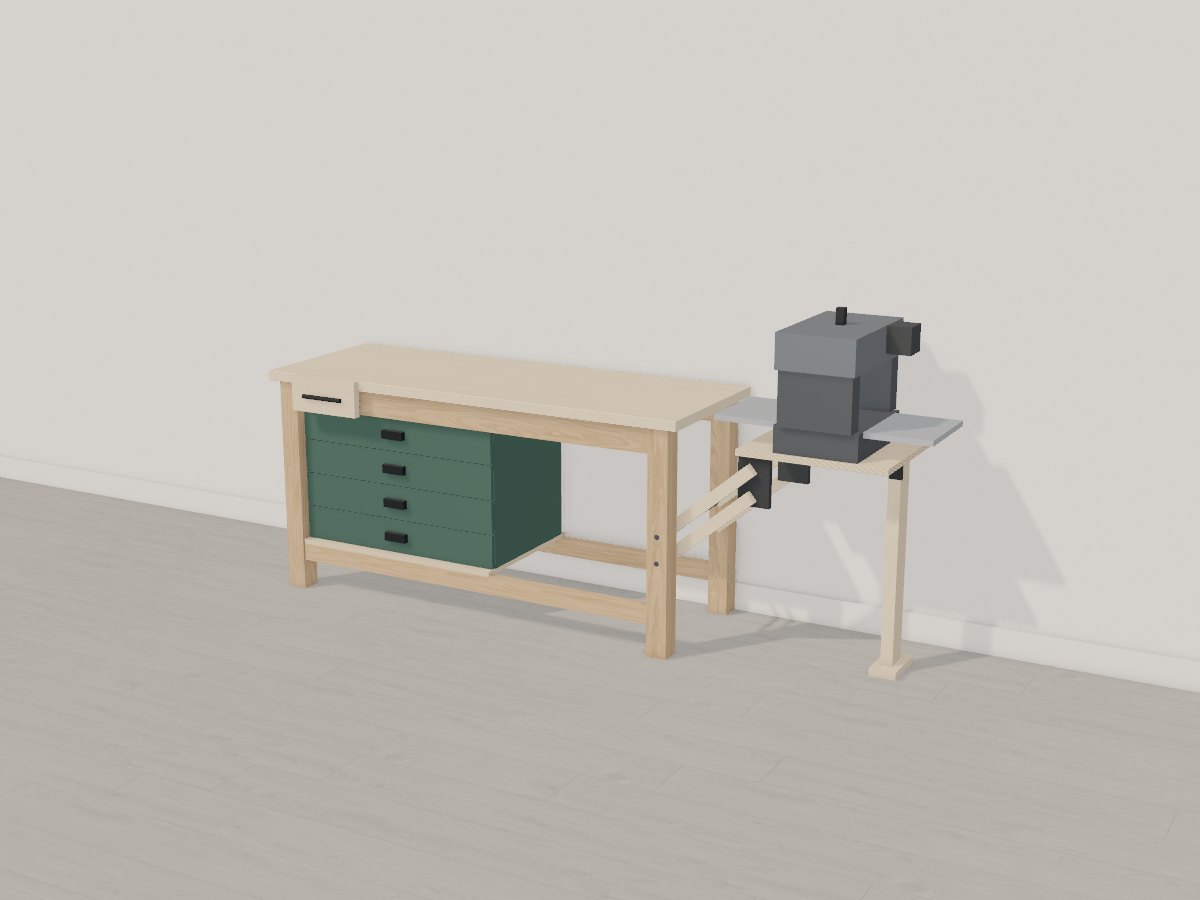

The 3D model
