Lumber and sheet goods rack

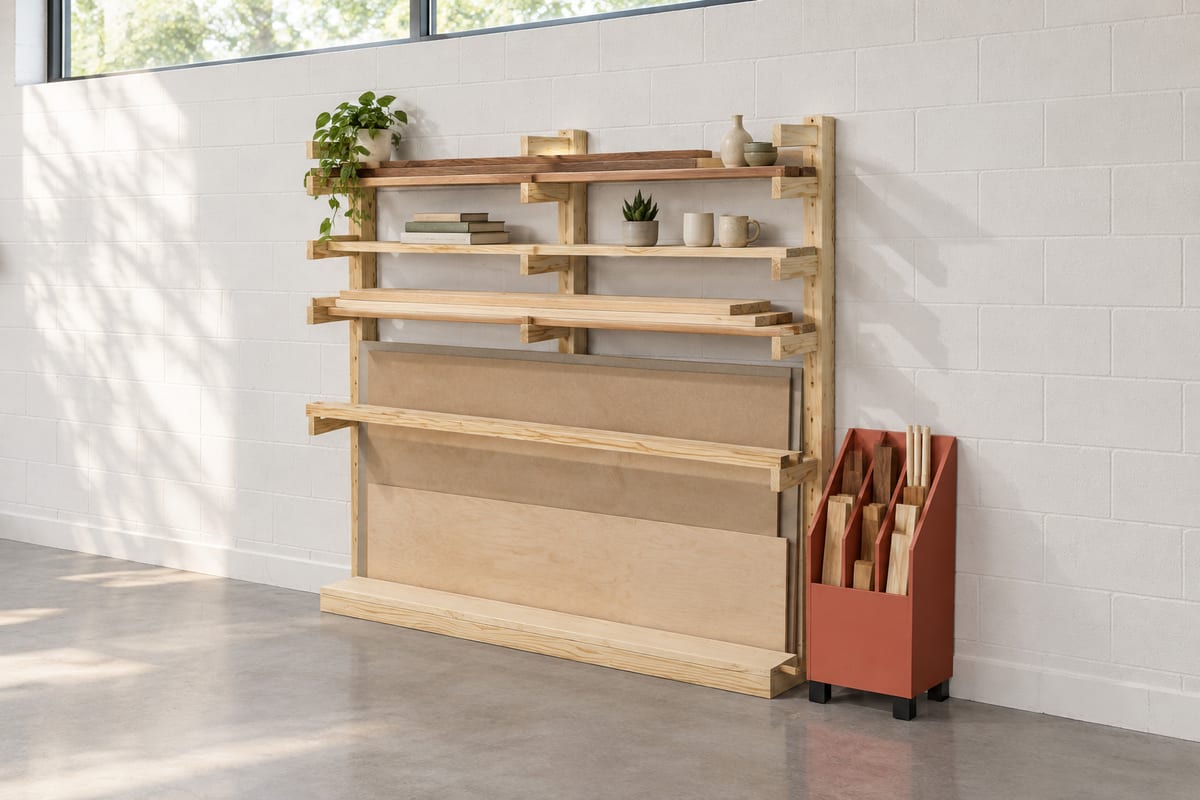

A wall rack that keeps a whole timber pile in 520mm of floor: full sheets stand on edge on a raised deck behind a lift-off rail, long boards rest on twelve tenoned pine cantilever arms with dowel stops, and a brick red offcut cart with a sloped top rolls out beside it.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3120 x 520 x 2414 mm122 13/16" x 20 1/2" x 95 1/16"
- Parts to cut
- 43
- Build steps
- 40
- Boards
- 10
- Sheets
- 2
- Solid wood
- 51.7 bd ft
- Weight
- 219.6 kg484 lb
Materials
- Pine (eastern white)
- Birch plywood
Finish
- Finishing oil - Clear oil, satin
- Paint - brick red, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Router
- Sandpaper
- Brush
Hardware and fittings
- 3 x Anti-tip wall bracket, steel, with stud screws
- 4 x Swivel caster, 75mm, plate mount, two with brakes
- 1 x Bar pull, 128mm centres, matt black
- 1 x Your sheet stock (not part of this build)
- 1 x Your timber (not part of this build)
Cut list
The first 3 of 20 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Sheet base deck | 2440 x 330 x 1896 1/16" x 13" x 11/16" | Birch plywood |
| B | 2 | Offcut cart side | 1000 x 420 x 1839 3/8" x 16 9/16" x 11/16" | Birch plywood |
| C | 1 | Offcut cart | 1000 x 404 x 1839 3/8" x 15 7/8" x 11/16" | Birch plywood |
| +39 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 43 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 40 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

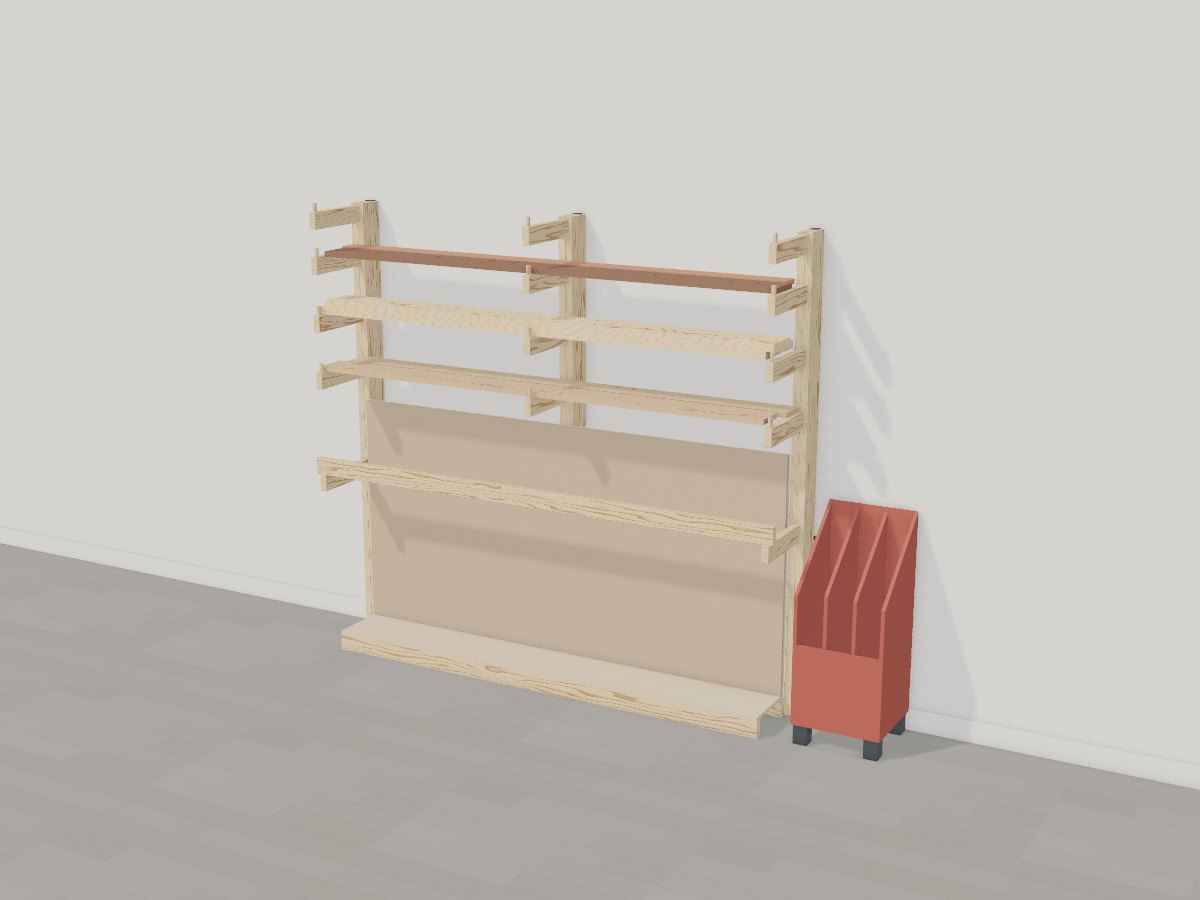

The 3D model
