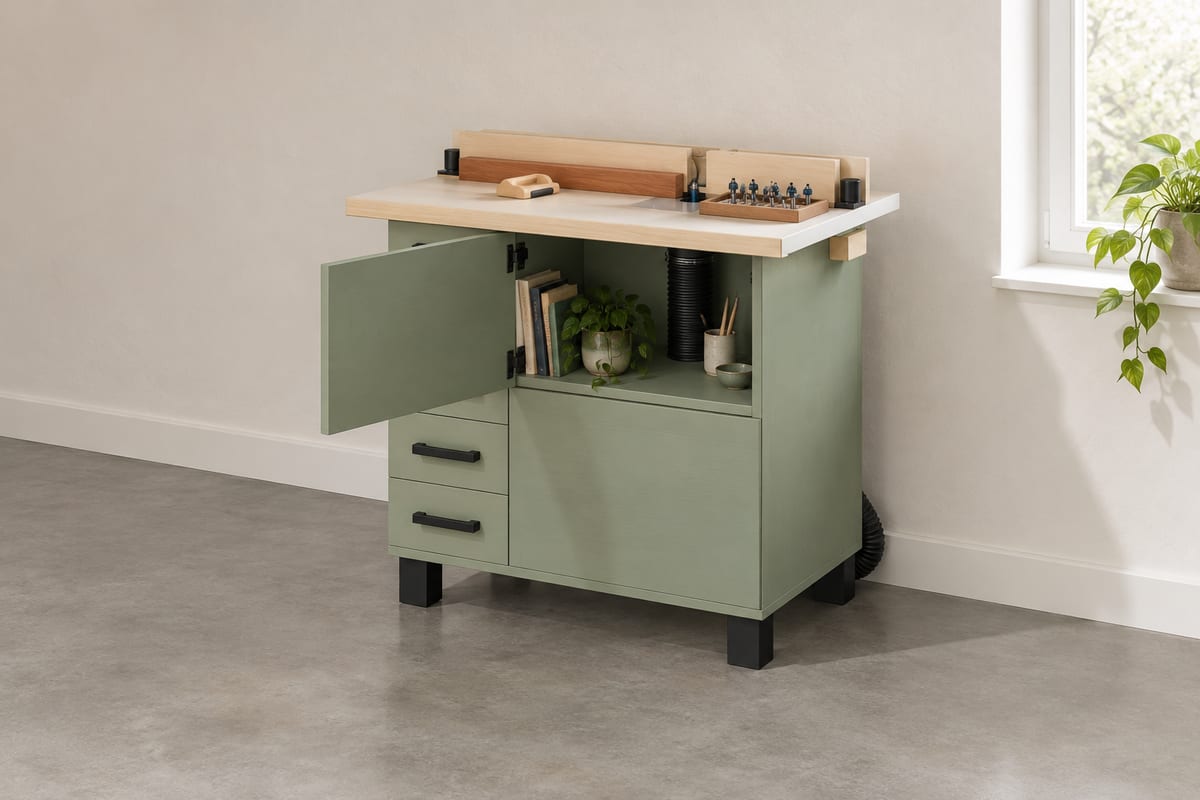

Router table cabinet with dust bin

A lichen-green rolling router table whose router hangs in its own closed bay, ported at the back, so the chips that fall through the plate go to the collector and not the floor; a full-width bin drawer below catches the rest. Five maple drawers hold the bits, and the maple fence carries its own hood right at the cutter.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1001 x 1172 x 995 mm39 3/8" x 46 1/8" x 39 3/16"

Parts to cut

64

Build steps

82

Boards

7

Sheets

6

Solid wood

6.8 bd ft

Weight

163.4 kg360 lb

Materials

• Birch plywood
• Hard maple
• MDF

Finish

• Paint - lichen green, satin
• Paint - white melamine-look paint, satin
• Finishing oil - Hardwax oil, satin
• Clear finish - Water-based lacquer, matt, matte

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Table saw
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 4 x Locking swivel caster, 75mm polyurethane wheel, 100mm high
• 2 x Concealed cabinet hinge, full overlay, 165 degree
• 1 x Aluminium router insert plate, 235 x 300mm, with levelling screws and reducing rings
• 1 x Your fixed-base router, 2100W (not part of this build)
• 1 x Flanged dust port, 100mm
• 1 x Flanged dust port, 63mm
• 2 x Fence clamping knob, 50mm, with M8 carriage bolt
• 12 x Side-mount drawer slide, 550mm
• 6 x Bar pull, 128mm centres, matt black

Cut list

The first 3 of 47 lines, in millimetres (inches below), finished size including joint allowances.

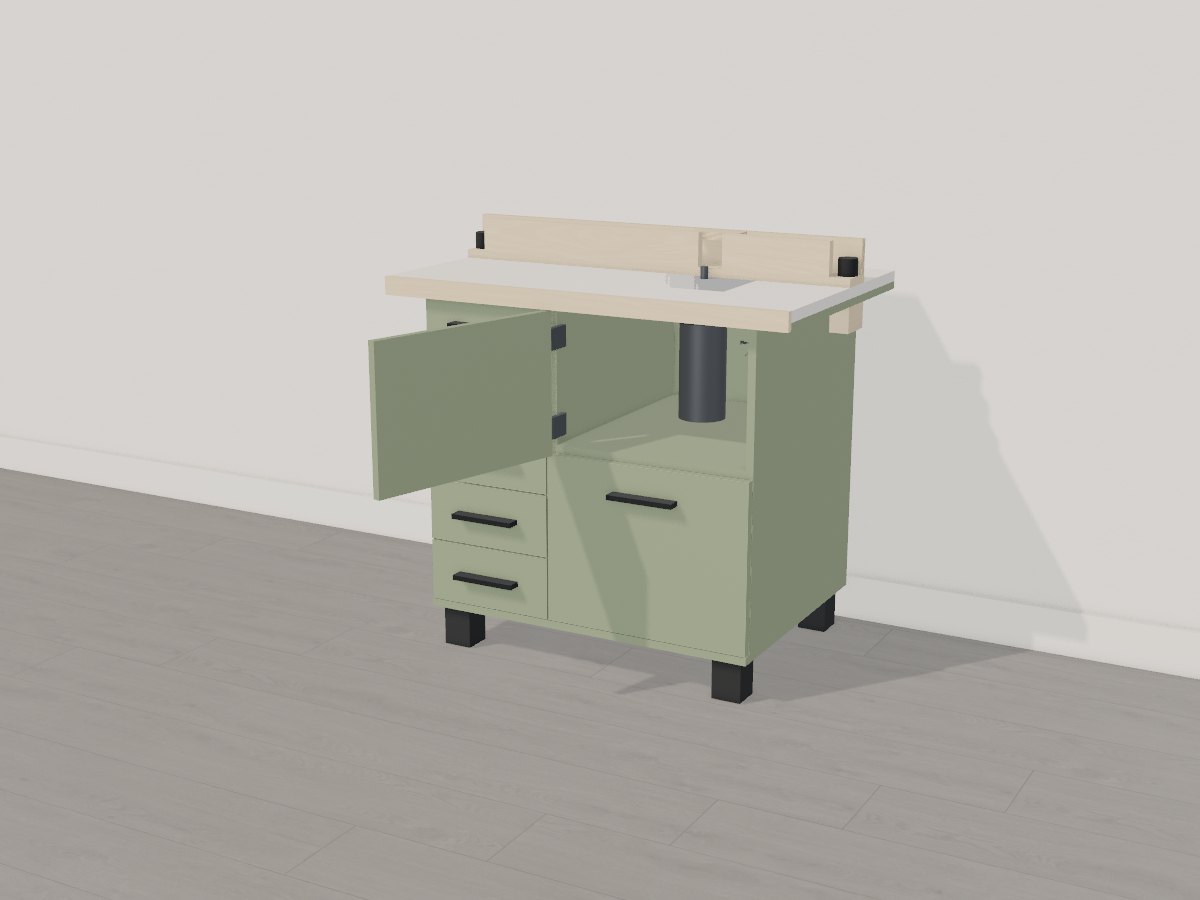

The 3D model
