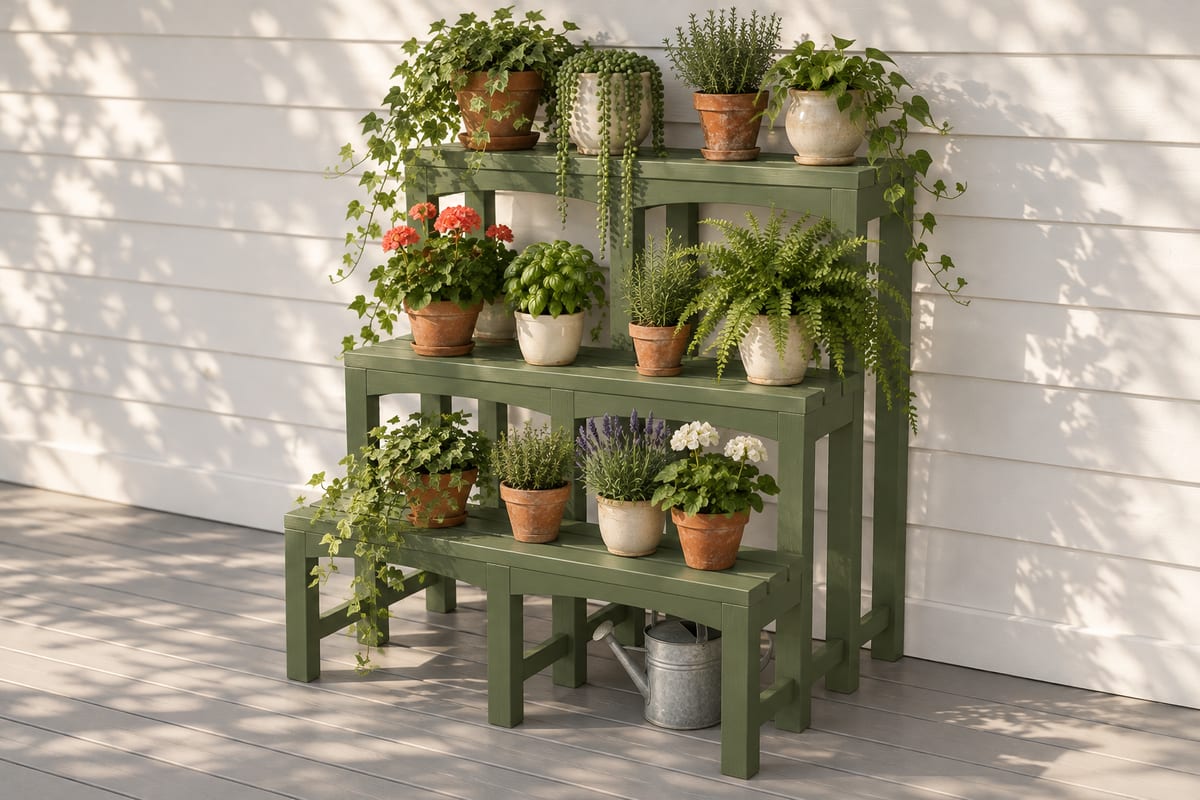

Stepped plant stand
A three-tier stepped plant stand in exterior-painted olive green, each slatted tier 320mm higher and 280mm further back so every pot gets the light. Slim posts in three stepped frames stop under the tier they carry, with tenoned bearers, arched front aprons stiffening the slats and low stretchers tying each frame.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1100 x 840 x 1040 mm43 5/16" x 33 1/16" x 40 15/16"
- Parts to cut
- 47
- Build steps
- 23
- Boards
- 8
- Solid wood
- 25.3 bd ft
- Weight
- 23 kg51 lb
Materials
- Pine (eastern white)
Finish
- Paint - exterior olive green, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 14 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 3 | Tier 1 slat | 1100 x 75 x 3243 5/16" x 2 15/16" x 1 1/4" | Pine (eastern white) |
| B | 3 | Tier 2 slat | 1100 x 80 x 3243 5/16" x 3 1/8" x 1 1/4" | Pine (eastern white) |
| C | 3 | Tier 3 slat | 1100 x 85 x 3243 5/16" x 3 3/8" x 1 1/4" | Pine (eastern white) |
| +38 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 47 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 23 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

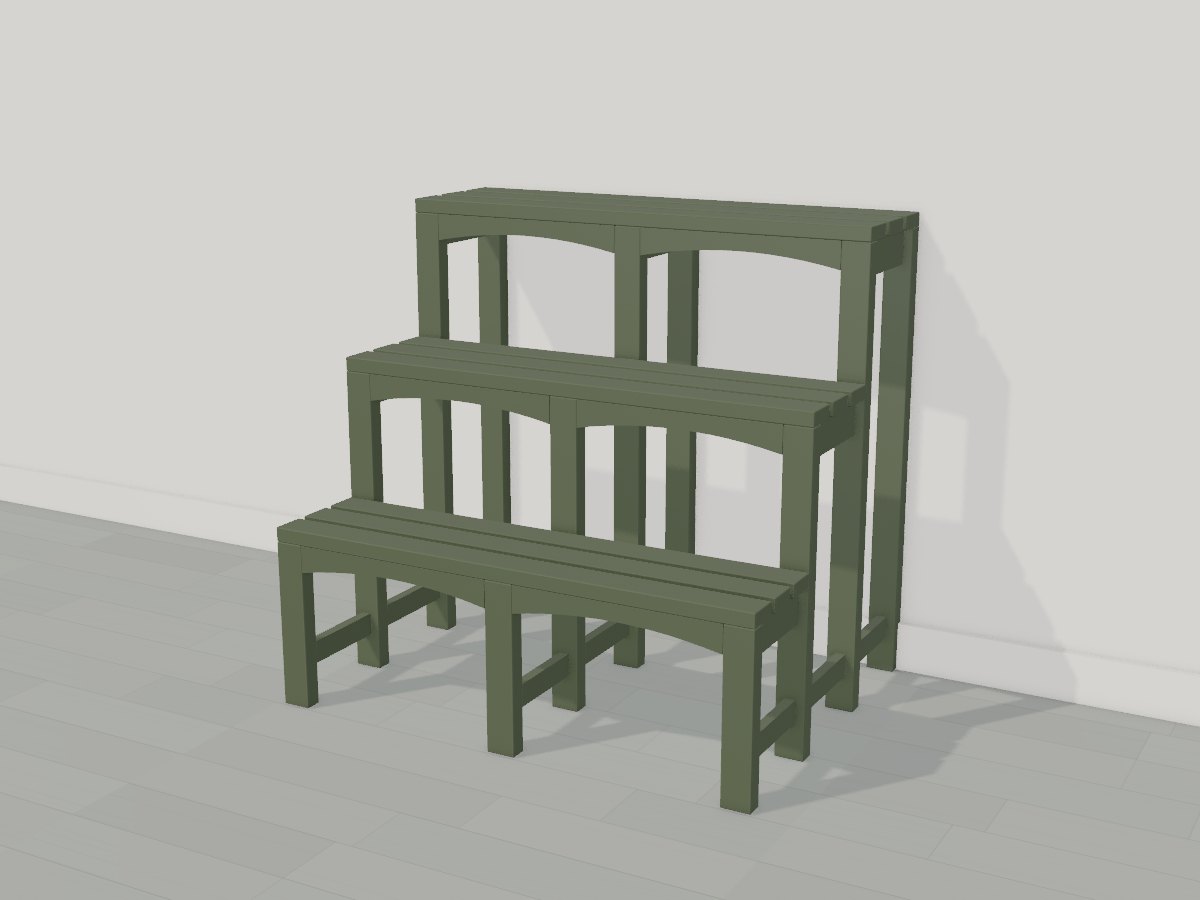

The 3D model
