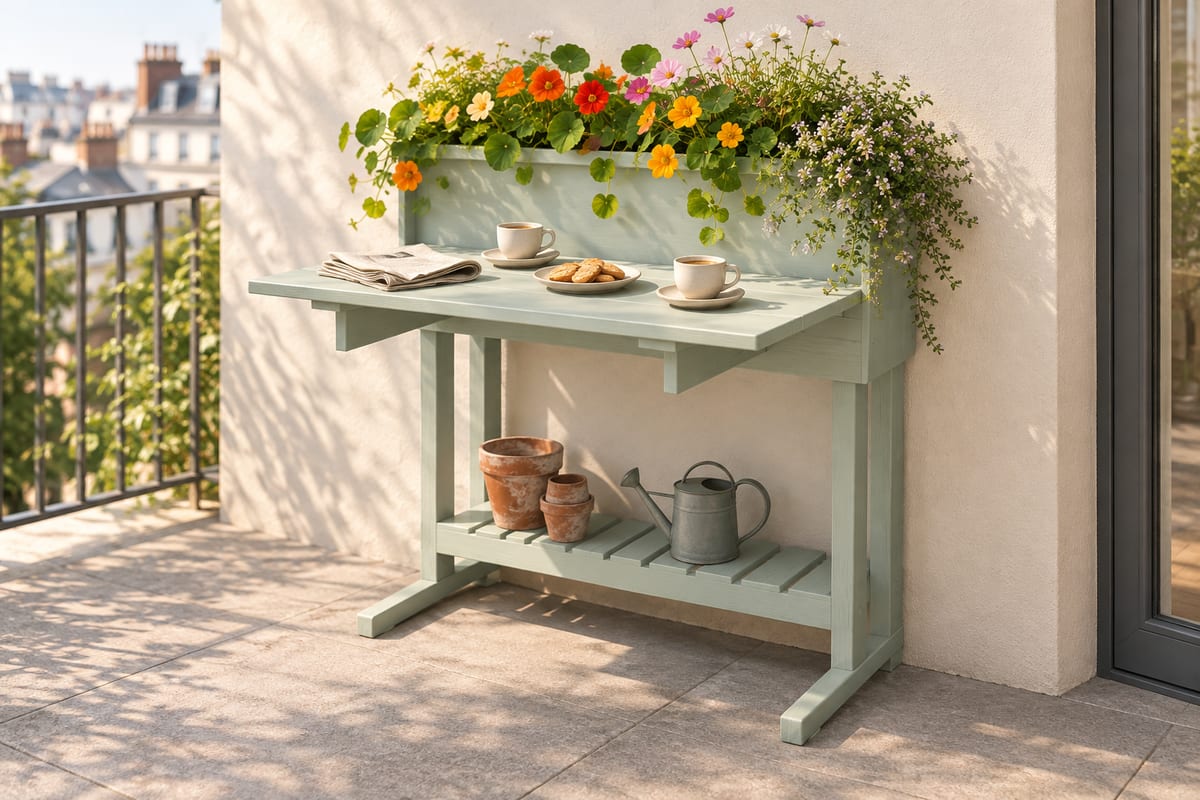

Celadon balcony planter table
A 1m planter on runner feet with a drop leaf at its front rim: swing out the two fly brackets and the leaf rises into a 480mm-deep table at 740mm for coffee for two, the planting standing up behind it like a hedge, then folds flat down the planter face so a narrow balcony gets its floor back - and the compost in the box is the ballast that keeps it steady.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1024 x 814 x 900 mm40 5/16" x 32 1/16" x 35 7/16"
- Parts to cut
- 51
- Build steps
- 31
- Boards
- 10
- Solid wood
- 23.7 bd ft
- Weight
- 85 kg187 lb
Materials
- Pine (eastern white)
Finish
- Paint - exterior pale celadon, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Woven polypropylene planter liner, about 900 x 240 x 190mm
- 2 x Brass butt hinge, 50mm
- 2 x Brass drop-leaf table hinge, 75mm
Cut list
The first 3 of 15 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Cap | 1024 x 70 x 2240 5/16" x 2 3/4" x 7/8" | Pine (eastern white) |
| B | 3 | Table leaf board | 1024 x 158 x 2240 5/16" x 6 1/4" x 7/8" | Pine (eastern white) |
| C | 6 | Board | 1000 x 106 x 2239 3/8" x 4 3/16" x 7/8" | Pine (eastern white) |
| +40 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 51 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 31 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

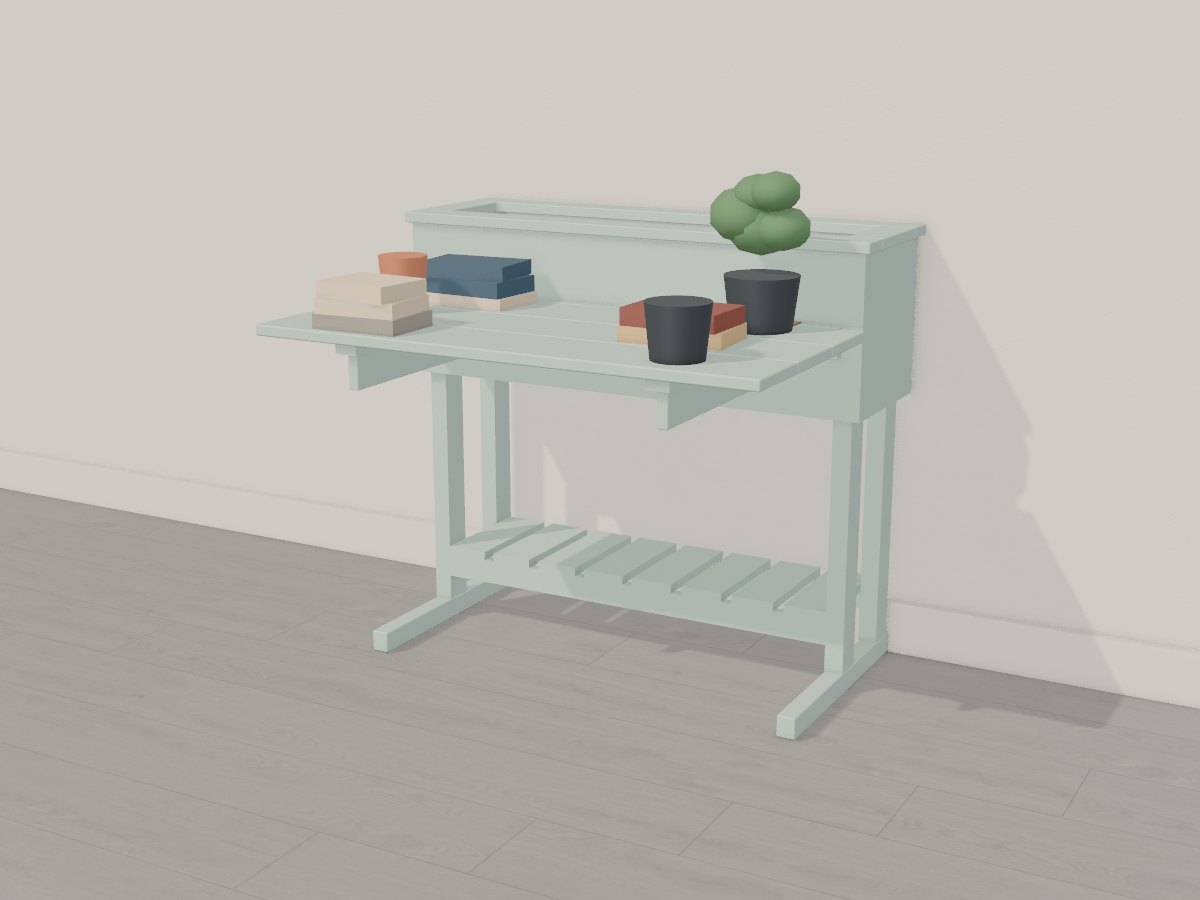

The 3D model
