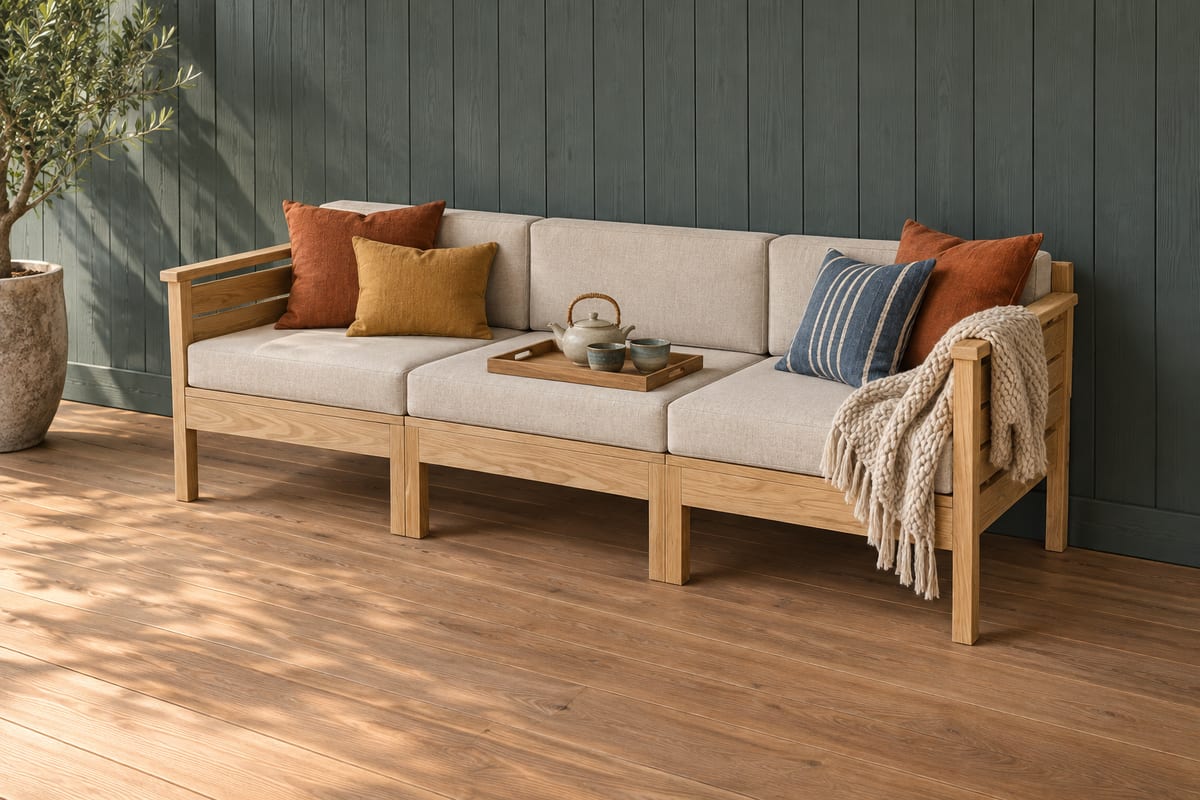

Oak modular patio sofa
A three-seat outdoor sofa in oiled white oak built as three 740mm modules - two with arms, one without - clipped together under the seat: unclip them for two armchairs and a bench, or swing one round into a corner, and the slatted decks drain so the quick-dry cushions are all that come in when it rains.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2260 x 817 x 740 mm89" x 32 3/16" x 29 1/8"
- Parts to cut
- 71
- Build steps
- 30
- Boards
- 17
- Solid wood
- 38 bd ft
- Weight
- 148.3 kg327 lb
Materials
- White oak
Finish
- Finishing oil - Exterior hardwood oil, natural, matte
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Hardware and fittings
- 3 x Outdoor seat cushion, quick-dry foam in a removable oatmeal cover
- 3 x Outdoor back cushion, quick-dry foam in a removable oatmeal cover
- 4 x Stainless sofa-module connector clip
Cut list
The first 3 of 28 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Arm | 770 x 65 x 3030 5/16" x 2 9/16" x 1 3/16" | White oak |
| B | 3 | Seat rail, module | 743 x 50 x 2229 1/4" x 1 15/16" x 7/8" | White oak |
| C | 6 | Seat rail, module | 740 x 95 x 2229 1/8" x 3 3/4" x 7/8" | White oak |
| +60 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 71 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 30 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

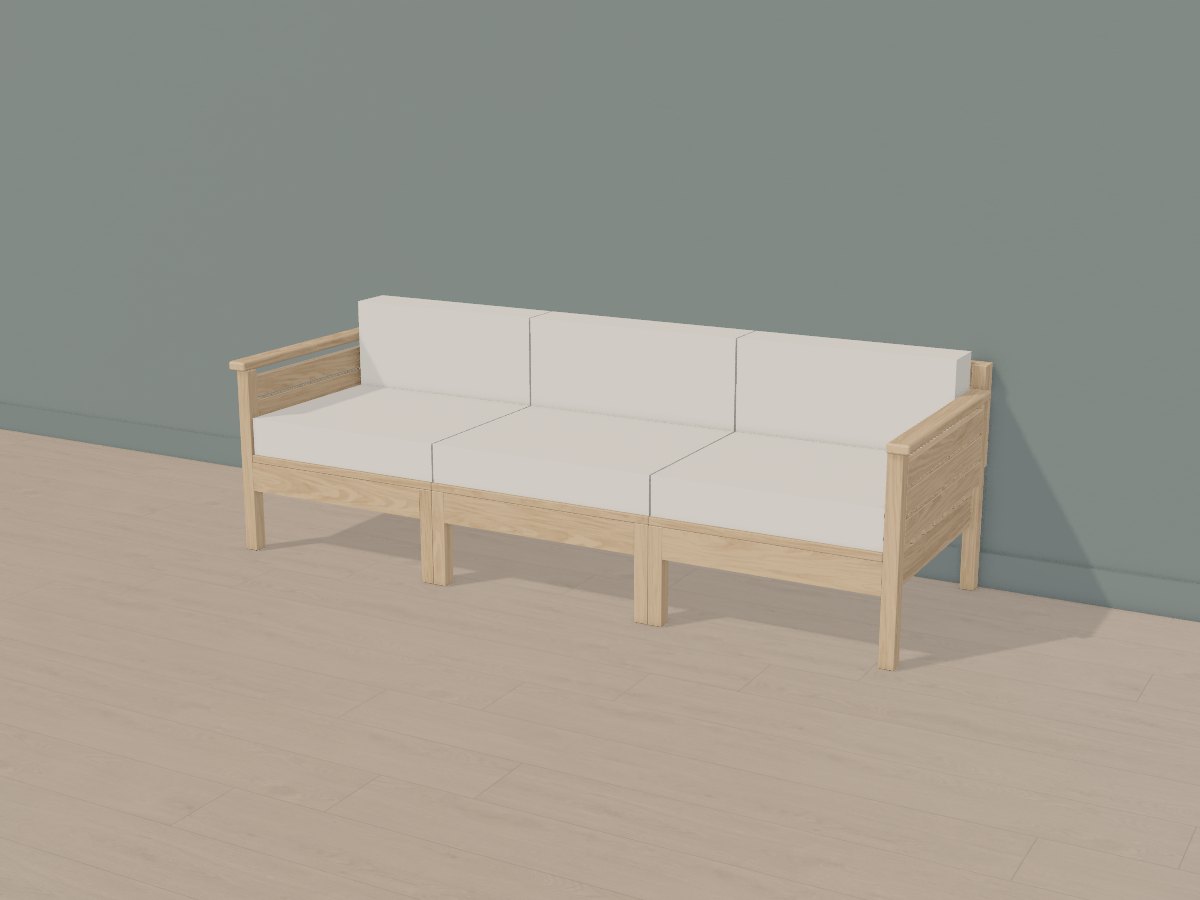

The 3D model
