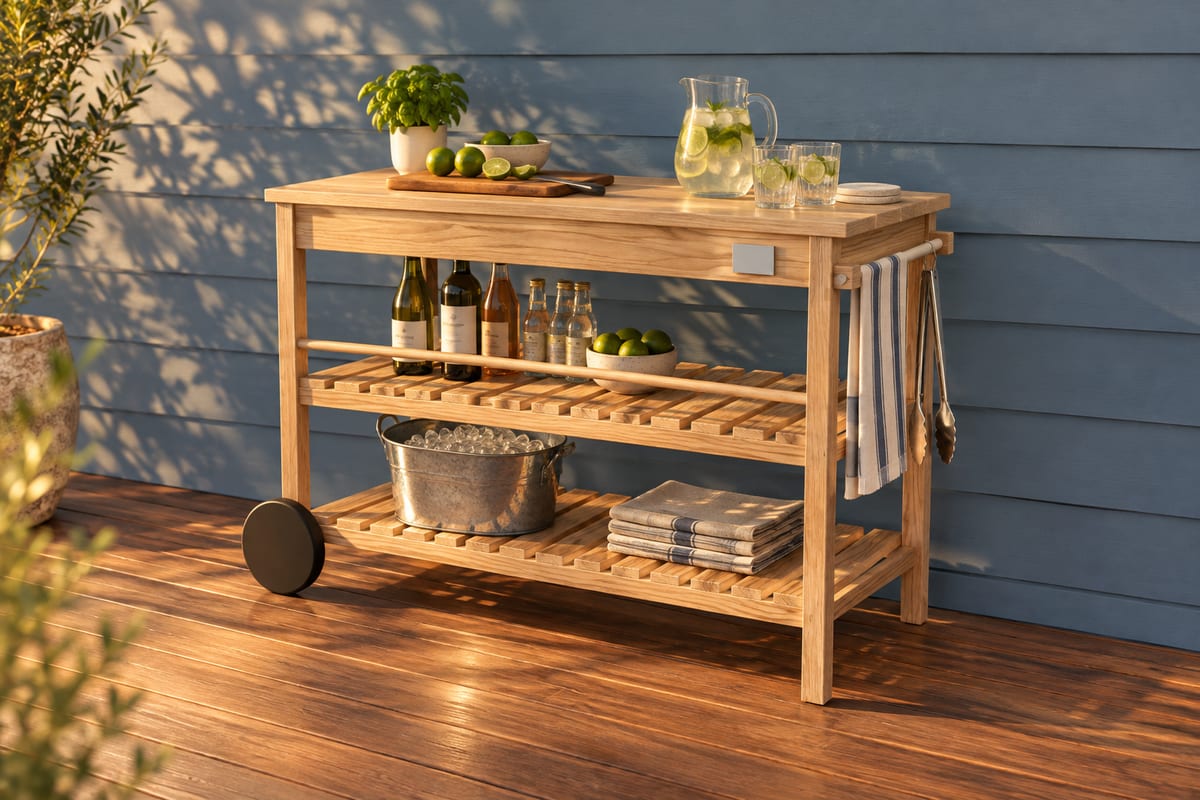

Oak outdoor bar cart

A white oak serving cart for the terrace: a 30mm board top, two slatted shelves that drain and dry, a gallery rail to keep bottles on, big rubber wheels at one end and a stainless towel rail at the other that doubles as the handle.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1418 x 660 x 898 mm55 13/16" x 26" x 35 3/8"

Parts to cut

49

Build steps

30

Boards

11

Solid wood

28 bd ft

Weight

56.6 kg125 lb

Materials

• White oak

Finish

• Finishing oil - Exterior oil, natural, matte

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Drill
• Dowel jig
• Sandpaper
• Brush

Hardware and fittings

• 1 x Zinc-plated steel axle, 20mm, 660mm long, with cap nuts and washers
• 2 x Solid rubber wheel, 200mm, 20mm bore, black
• 1 x Stainless steel tube, 25mm, 590mm
• 3 x Stainless steel cup hook, large
• 1 x Wall-mounted bottle opener, stainless steel

Cut list

The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.

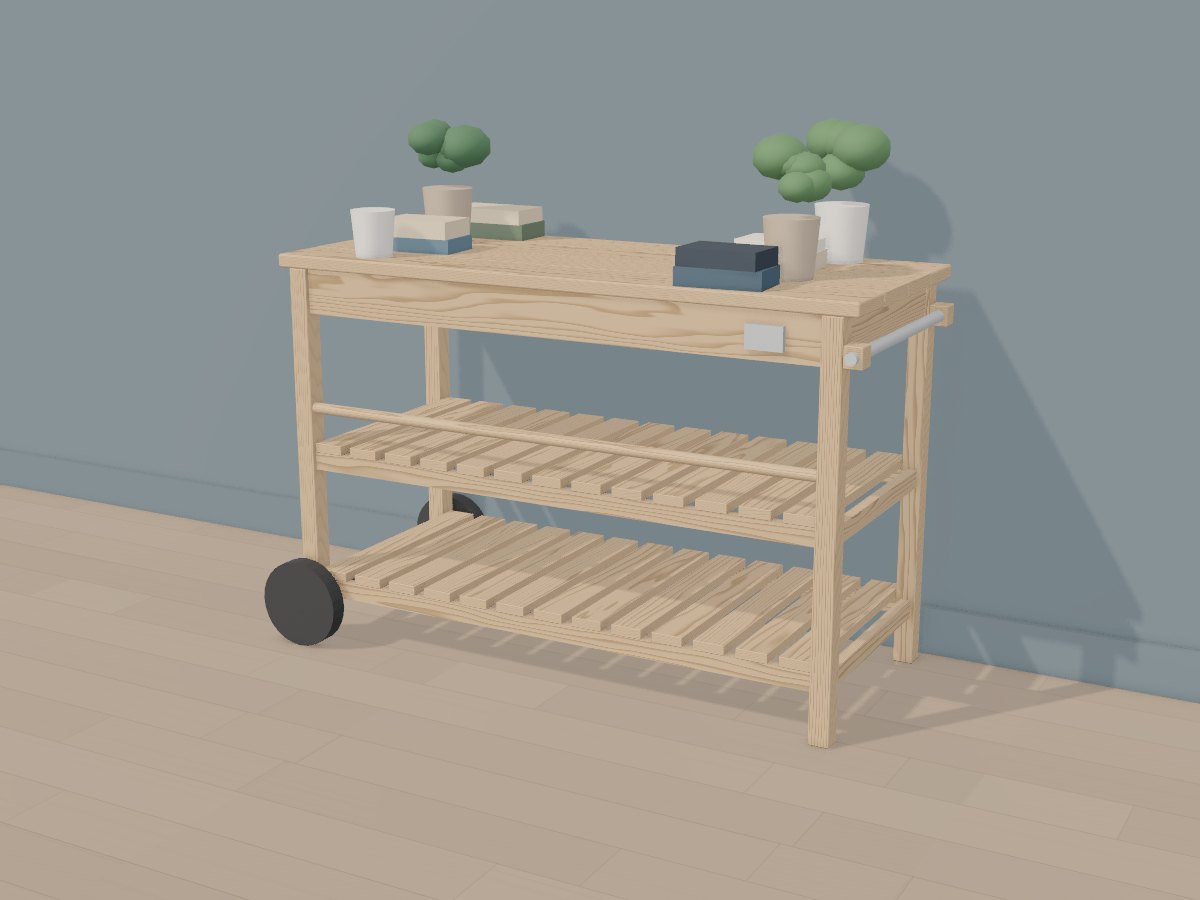

The 3D model
