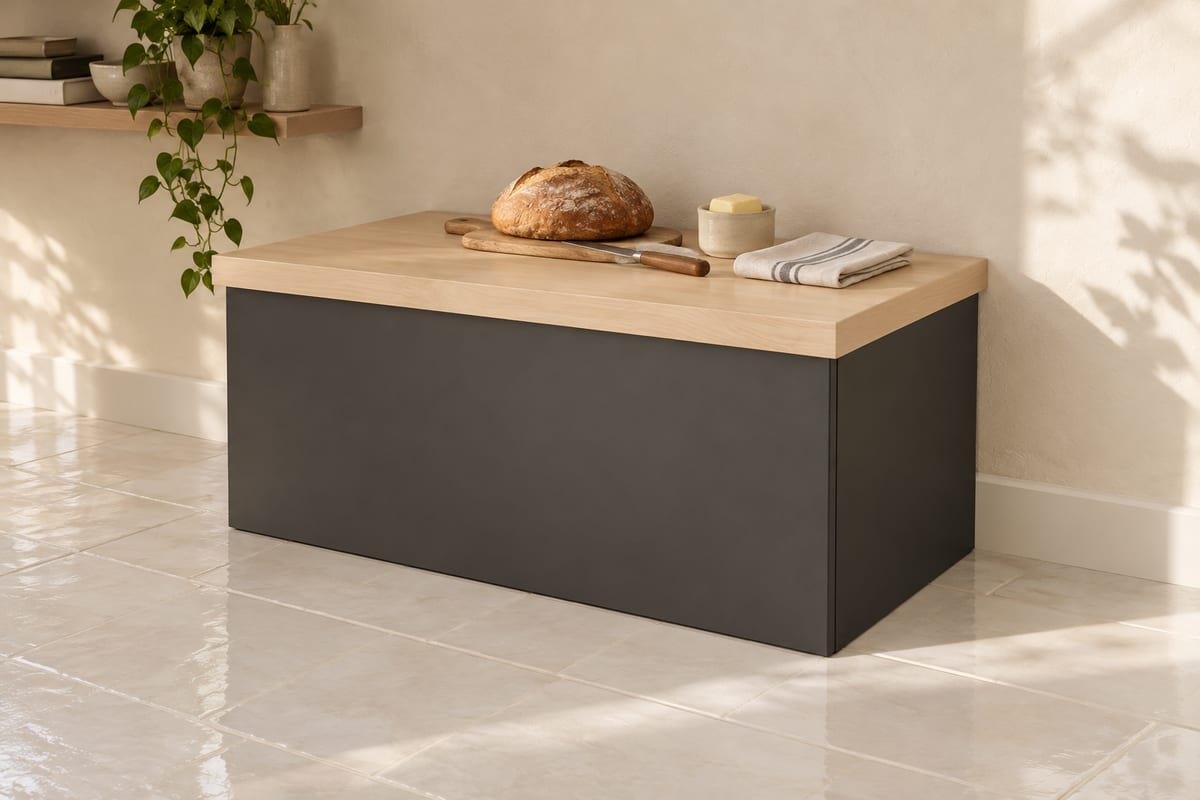

Bread bin with a cutting-board lid
A soft-black painted bread bin, 420 x 260mm, whose lid is a 22mm maple bread board on brass lift-off hinges, with two cleats underneath that locate it inside the walls. Lift the lid off, turn it over onto its cleats and it is the board you slice on, right beside the loaf - one piece on the counter doing the job of two, and the crumbs brush straight back into the bin.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 430 x 270 x 192 mm16 15/16" x 10 5/8" x 7 9/16"
- Parts to cut
- 12
- Build steps
- 16
- Boards
- 4
- Solid wood
- 3.1 bd ft
- Weight
- 4 kg9 lb
Materials
- Hard maple
- Poplar (paint grade)
Finish
- Paint - soft black, eggshell
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Table saw
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 1 x Brass lift-off flag hinges
Cut list
The first 3 of 6 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 5 | Lid strip | 430 x 54 x 2216 15/16" x 2 1/8" x 7/8" | Hard maple |
| B | 2 | Lid cleat, (feet when turned over) | 226 x 20 x 148 7/8" x 13/16" x 9/16" | Hard maple |
| C | 1 | Front | 420 x 170 x 1516 9/16" x 6 11/16" x 9/16" | Poplar (paint grade) |
| +4 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 12 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 16 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

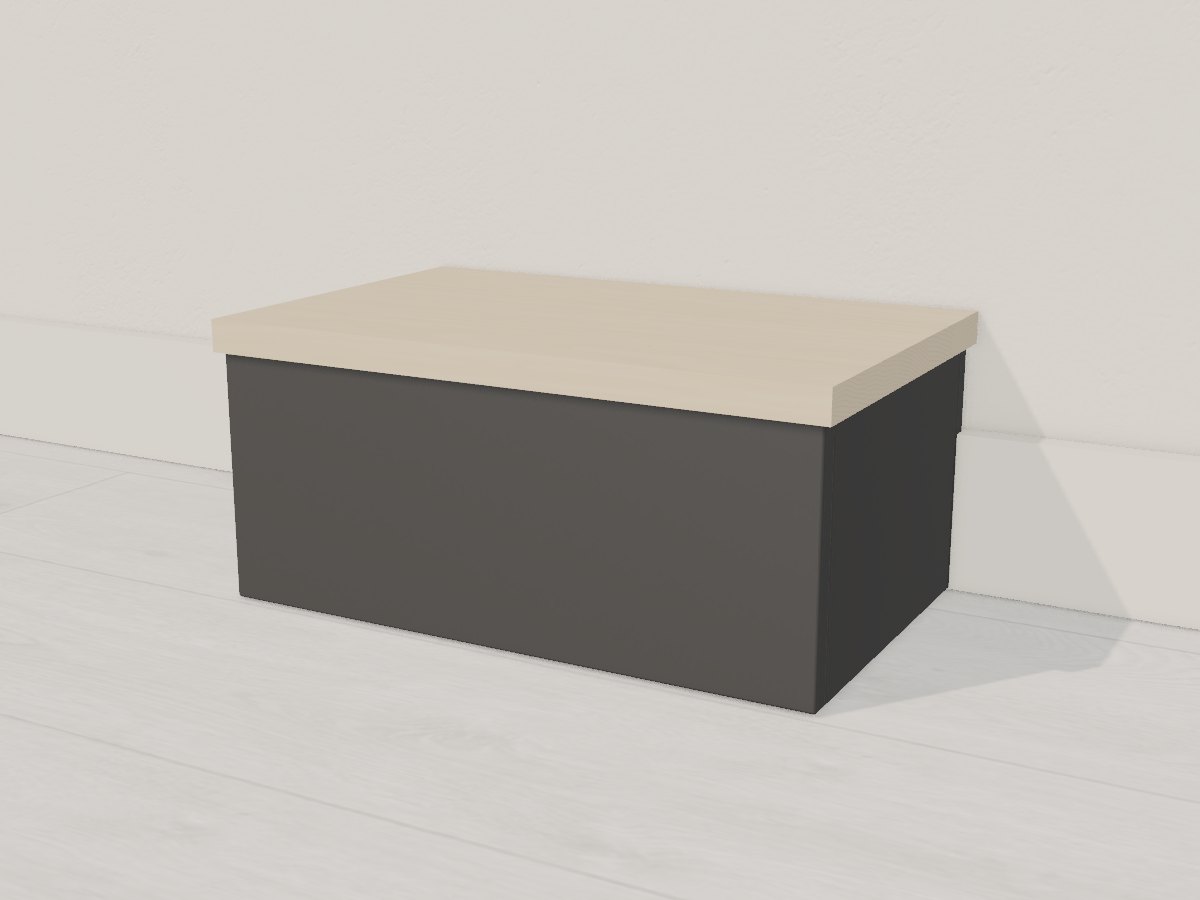

The 3D model
