Smoky blue window seat library

A reading library built round a window in smoky blue: bookcases to the ceiling either side, a bridge of shelves over the window and one cove crown across it all. Under the window, a deep seat with four big drawers, a rust velvet cushion and linen bolsters, and a brass swing-arm reading light on each side.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3600 x 582 x 2600 mm141 3/4" x 22 15/16" x 102 3/8"

Parts to cut

146

Build steps

114

Boards

10

Sheets

16

Solid wood

16.8 bd ft

Weight

394.8 kg870 lb

Materials

• Birch plywood
• Poplar (paint grade)
• MDF

Finish

• Paint - smoky blue, eggshell

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Pocket-hole jig
• Dowel jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Custom window seat cushion, firm foam, rust cotton velvet cover with piping
• 2 x Bolster cushion, oatmeal linen
• 8 x Concealed face-frame hinge, partial overlay
• 8 x Bar pull, 128mm centres, brushed brass
• 2 x Plug-in LED strip kit, 12V, warm white 2700K
• 8 x Side-mount drawer slide, 500mm
• 1 x Cove crown moulding, 90mm
• 2 x Plug-in swing-arm reading light, brushed brass

Cut list

The first 3 of 109 lines, in millimetres (inches below), finished size including joint allowances.

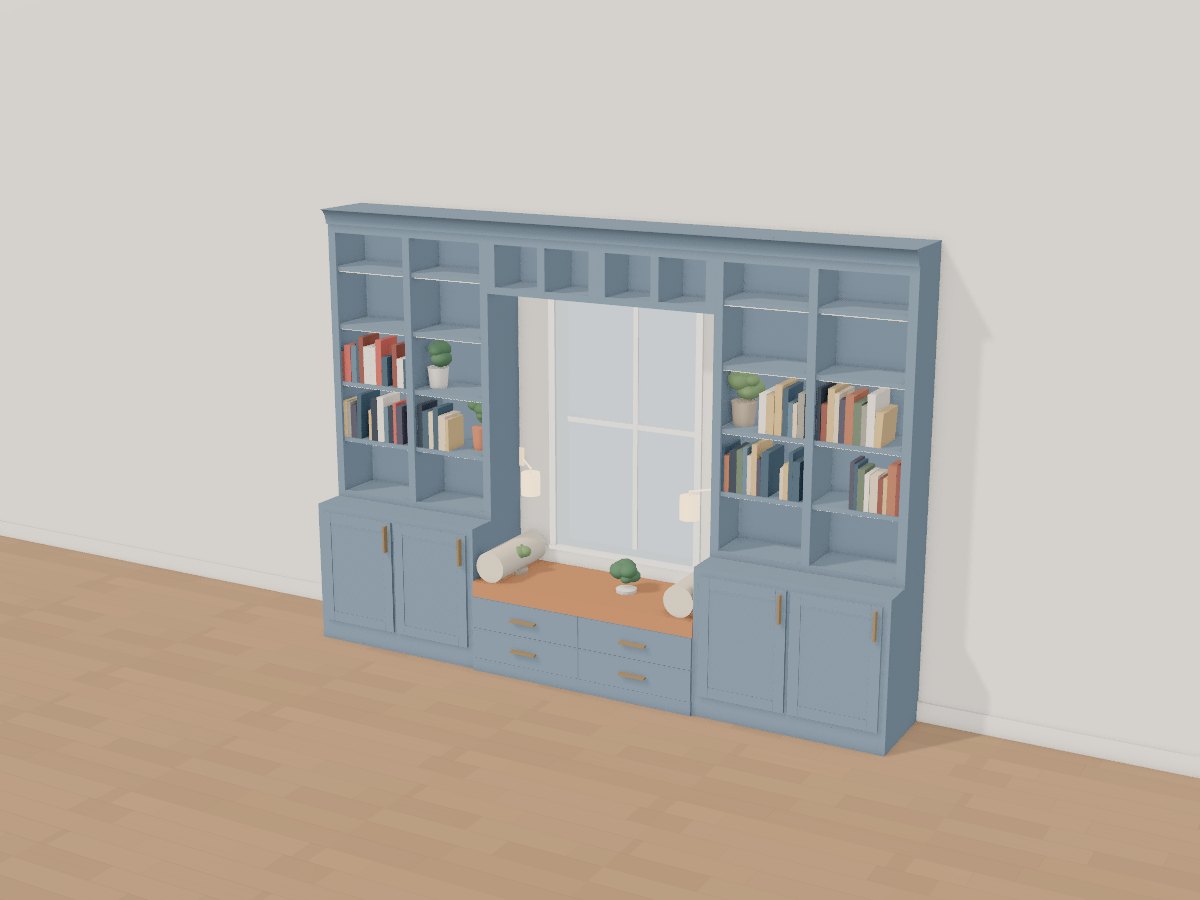

The 3D model
