Shaker library wall

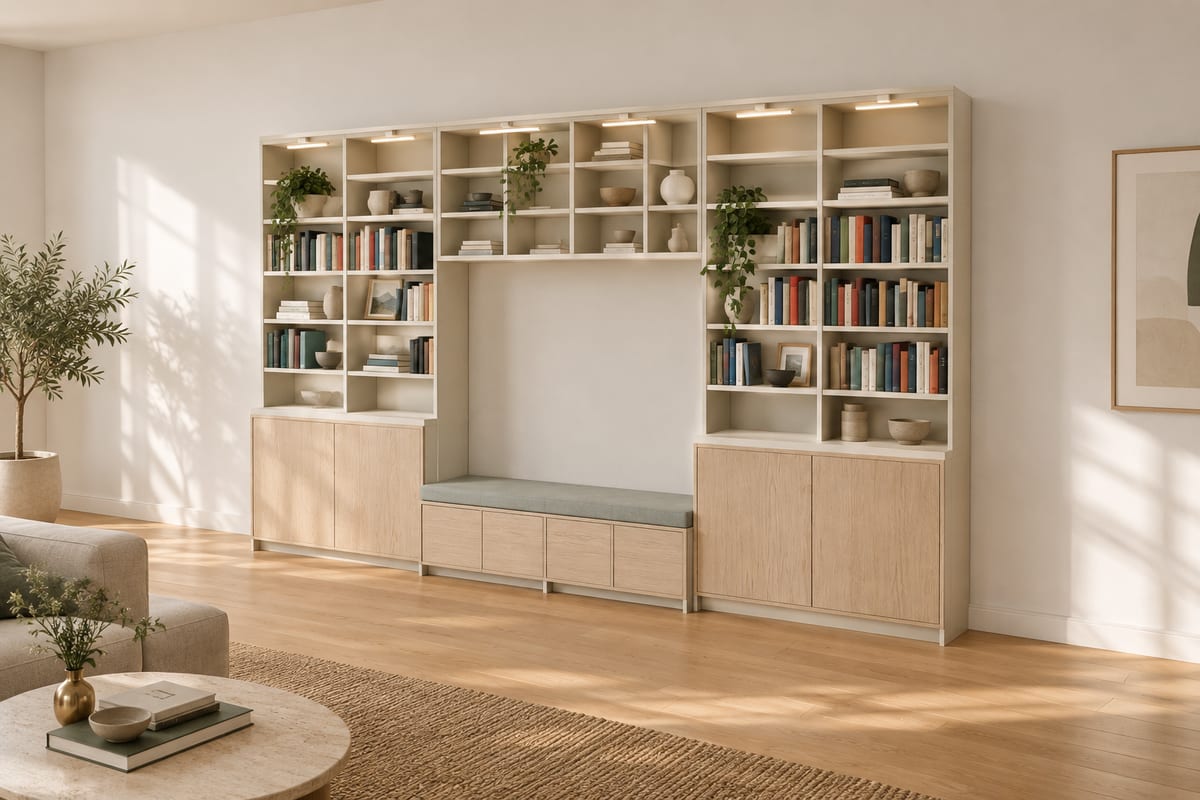

A Shaker-style wall of birch plywood carcasses with white oak frame-and-panel doors, open shelves above, and a storage bench with a cushion under a bridging bookshelf in the middle.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

4000 x 550 x 2400 mm157 1/2" x 21 5/8" x 94 1/2"

Parts to cut

124

Build steps

83

Boards

9

Sheets

11

Solid wood

14.2 bd ft

Weight

336.3 kg741 lb

Materials

• Birch plywood
• White oak

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Custom upholstered bench cushion, firm foam, removable cover
• 16 x Concealed cabinet hinge, full overlay
• 4 x Plug-in picture light, brass, 350mm
• 4 x Plug-in picture light, brass, 250mm

Cut list

The first 3 of 92 lines, in millimetres (inches below), finished size including joint allowances.

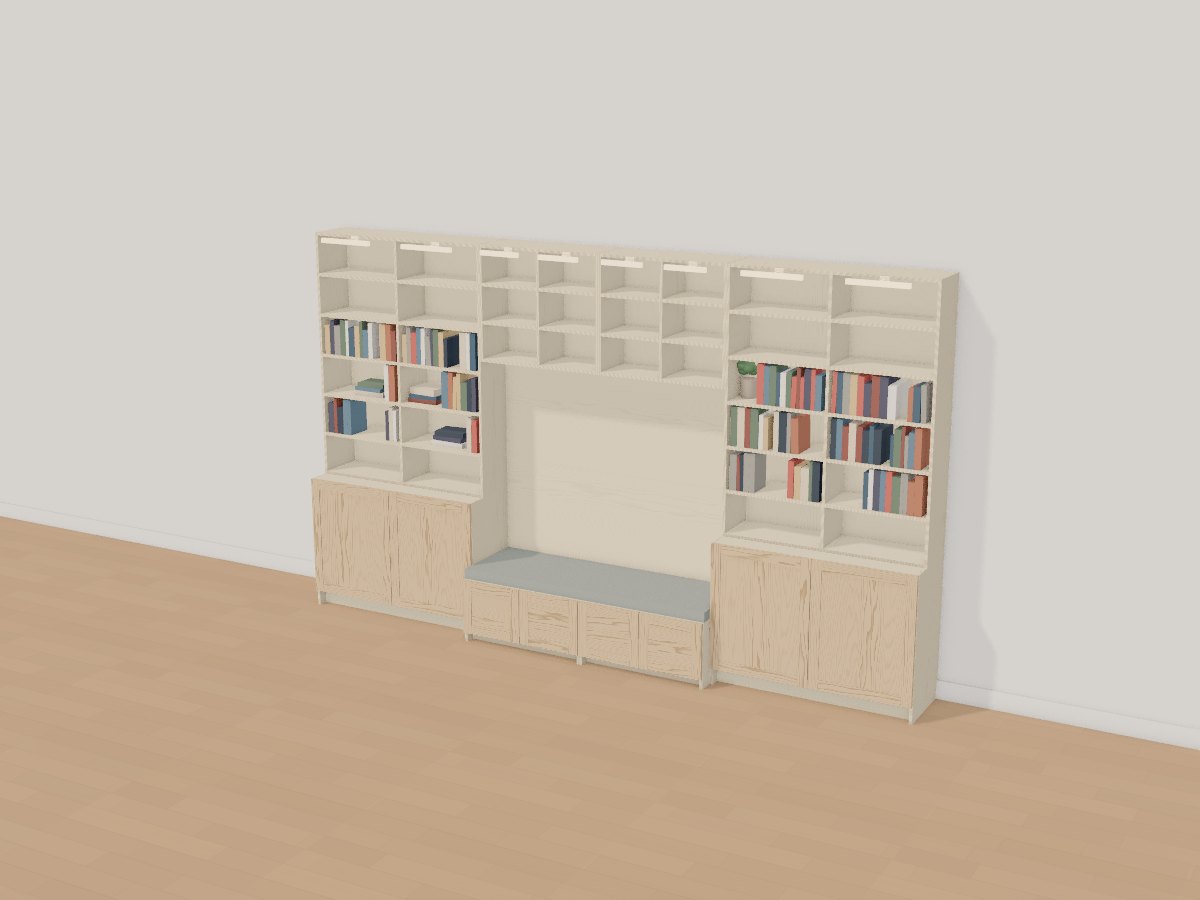

The 3D model
