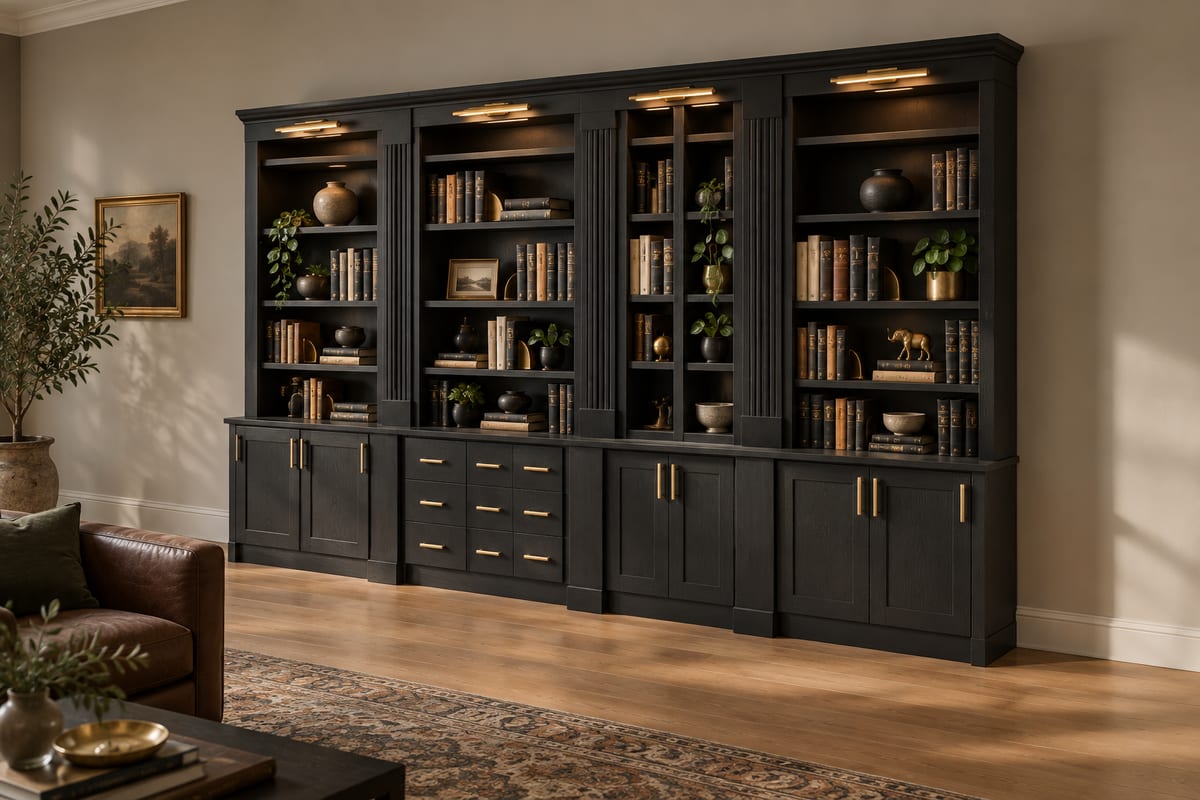

Black library wall

A wall-to-wall library in satin black: shaker cupboards and a bank of drawers on a plinth, a moulded ledge, and open bookcases above between wide fluted pilasters. A cove crown runs along the ceiling, with a brass picture light over every bay.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

4200 x 543 x 2700 mm165 3/8" x 21 3/8" x 106 5/16"

Parts to cut

293

Build steps

216

Boards

29

Sheets

23

Solid wood

35.3 bd ft

Weight

631.8 kg1393 lb

Materials

• Birch plywood
• Poplar (paint grade)
• MDF

Finish

• Paint - soft black, satin

Tools

• Saw
• Square
• Tape
• Drill
• Dowel jig
• Clamps
• Chisel
• Router
• Table saw
• Pocket-hole jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 12 x Concealed face-frame hinge, partial overlay
• 15 x Bar pull, 128mm centres, brushed brass
• 18 x Side-mount drawer slide, 450mm
• 2 x Plug-in picture light, brass, 500mm
• 1 x Plug-in picture light, brass, 550mm
• 2 x Plug-in picture light, brass, 250mm
• 1 x Cove crown moulding, 120mm

Cut list

The first 3 of 191 lines, in millimetres (inches below), finished size including joint allowances.

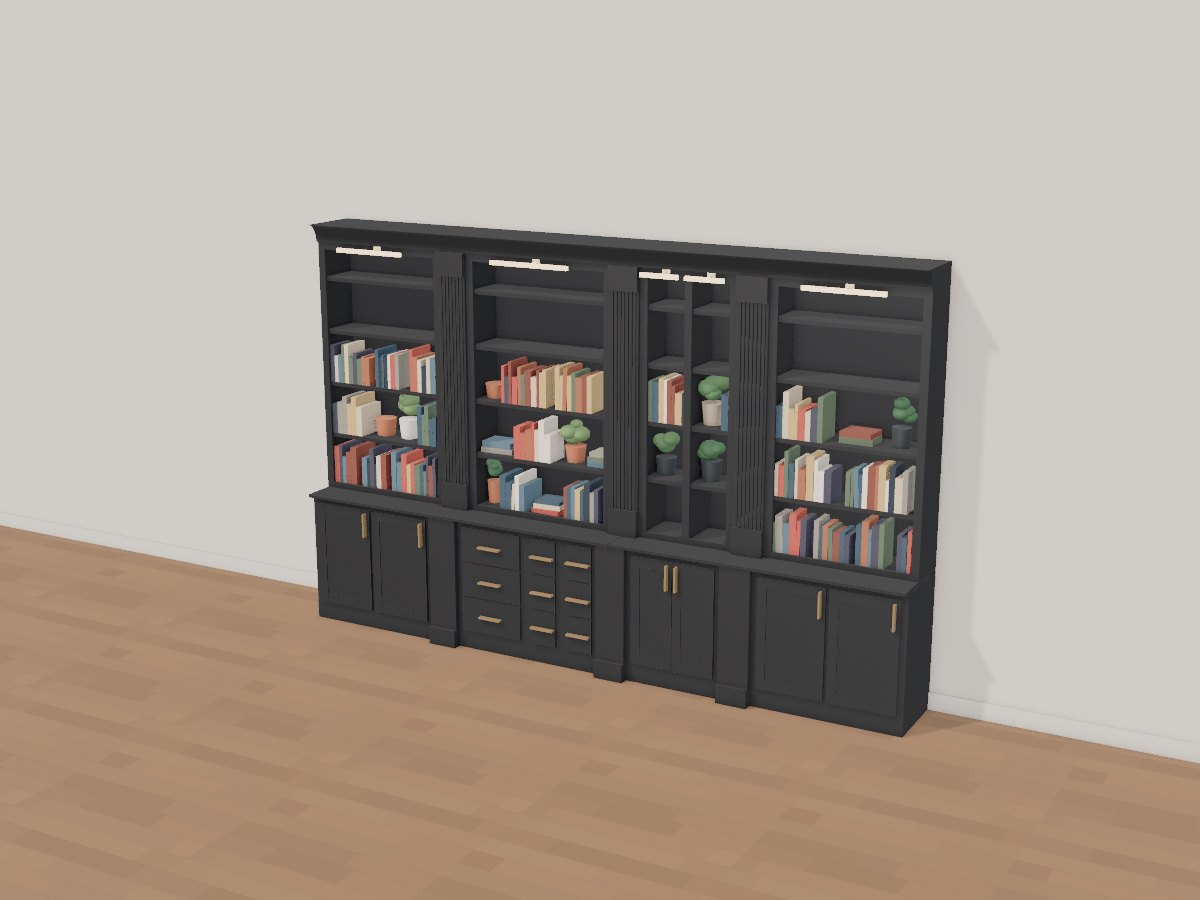

The 3D model

More built-ins designs

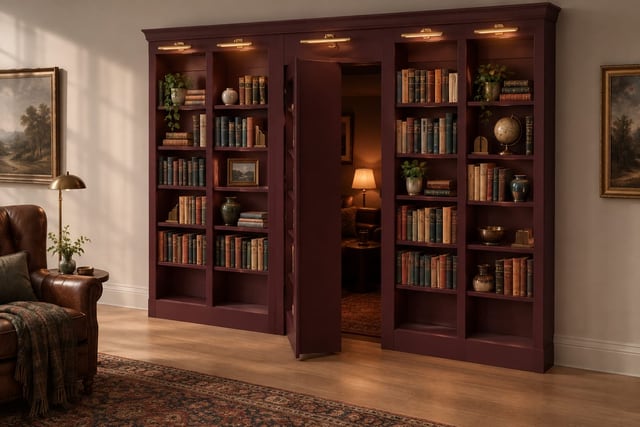

• Hidden bookcase door An oxblood library wall where the middle bookcase is really a door. It swings out on concealed pivots to a secret room, its shelves lined up with the bookcases either side, and a wide latch stile hides the gap. A cove crown and brass picture lights finish the wall.

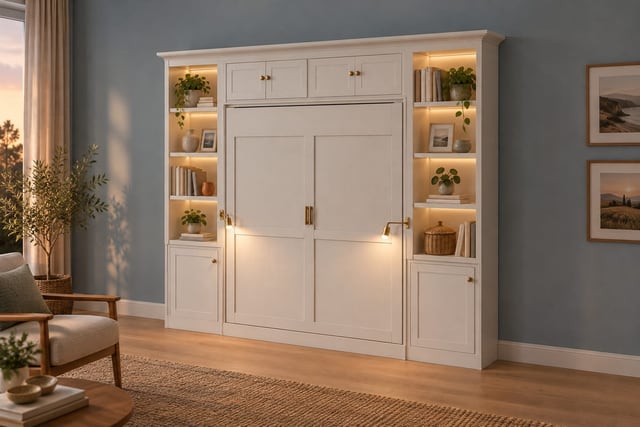

• Murphy bed library wall A queen wall bed that folds away behind what looks like four tall Shaker doors, between two bookcases with cupboards below and a row of cupboards bridging over the top. Pull the brass handles and it comes down on its own fold-down leg, lifted by a bought piston kit, with a brass reading light reaching out either side of the pillows. A cove crown runs across the whole wall, and the shelves glow with warm LED strips.
