Hidden bookcase door

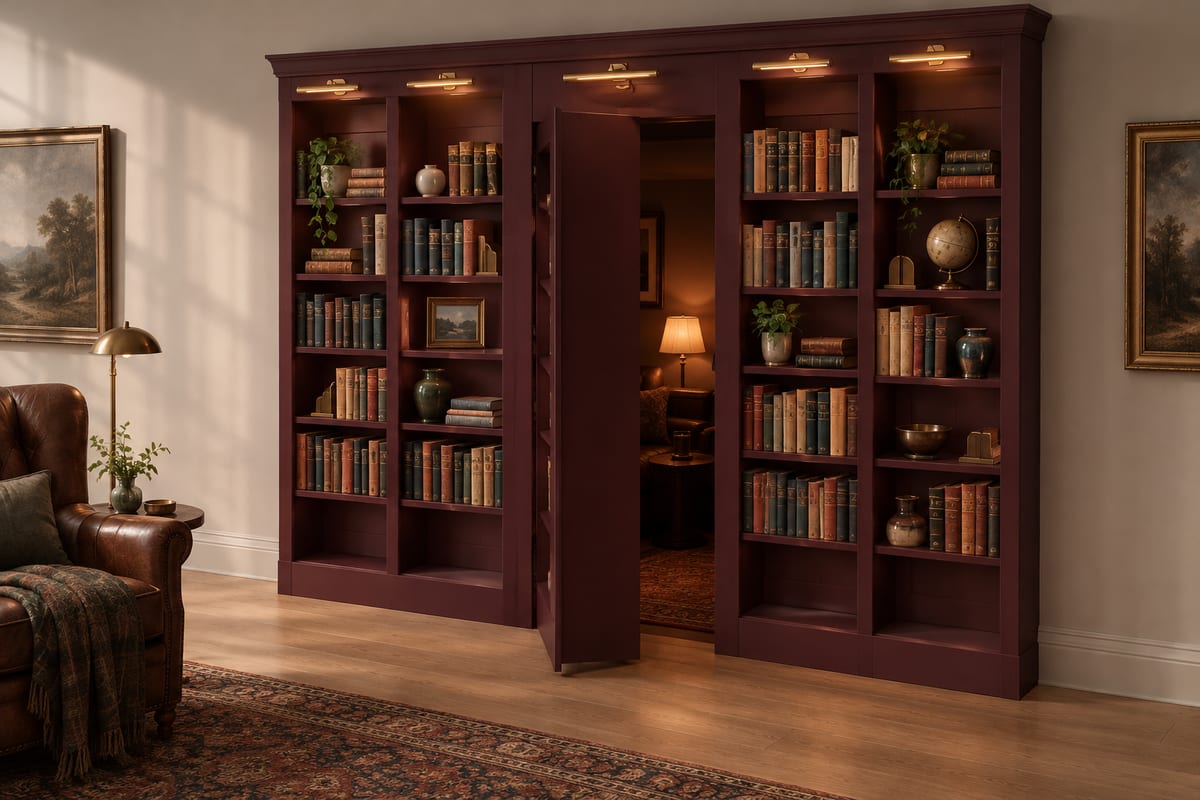

An oxblood library wall where the middle bookcase is really a door. It swings out on concealed pivots to a secret room, its shelves lined up with the bookcases either side, and a wide latch stile hides the gap. A cove crown and brass picture lights finish the wall.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3200 x 1067 x 2400 mm126" x 42" x 94 1/2"

Parts to cut

75

Build steps

78

Boards

14

Sheets

10

Solid wood

23.8 bd ft

Weight

323.2 kg713 lb

Materials

• Birch plywood
• Poplar (paint grade)
• White oak

Finish

• Paint - oxblood, satin

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Pocket-hole jig
• Dowel jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 4 x Plug-in picture light, brass, 300mm
• 1 x Concealed pivot hinge set for a bookcase door, rated 250kg
• 1 x Concealed bookcase-door latch, magnetic
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 1 x Plug-in picture light, brass, 500mm
• 1 x Cove crown moulding, 120mm

Cut list

The first 3 of 54 lines, in millimetres (inches below), finished size including joint allowances.

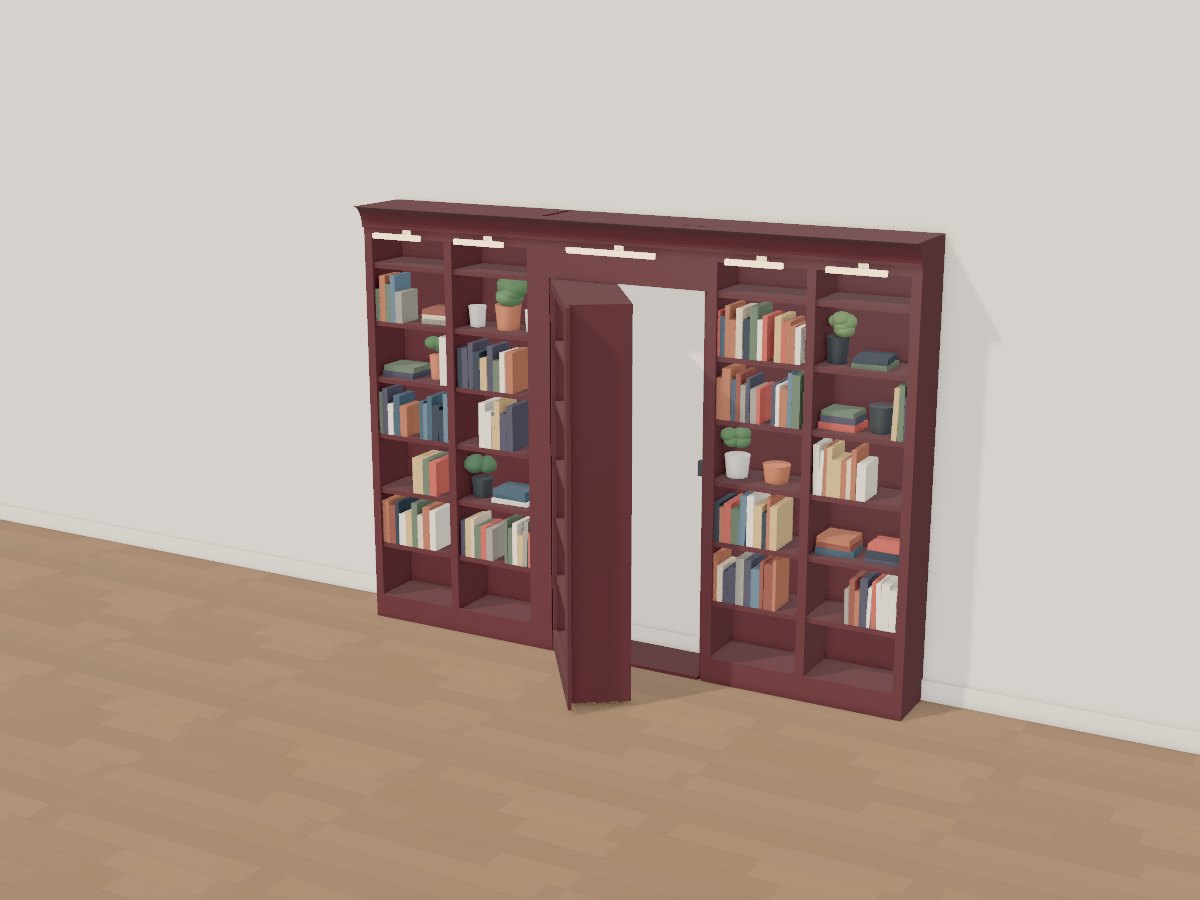

The 3D model
