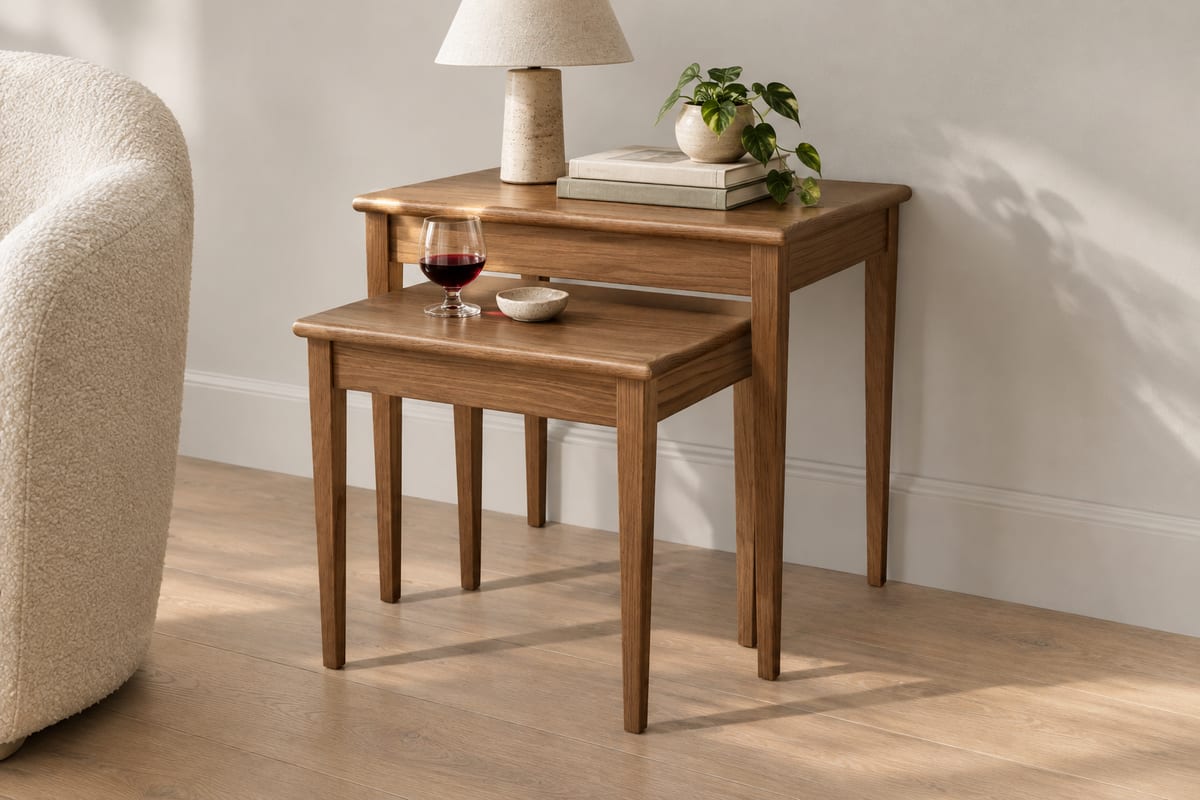

Smoked oak nesting tables
A pair of nesting side tables in smoked white oak, its ray-fleck grain glowing through a deep tobacco-brown stain: slim tapered legs, softly rounded tops, and the smaller one sliding right under the larger when you need the floor back.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 560 x 620 x 520 mm22 1/16" x 24 7/16" x 20 1/2"
- Parts to cut
- 18
- Build steps
- 18
- Boards
- 4
- Solid wood
- 6.7 bd ft
- Weight
- 10.9 kg24 lb
Materials
- White oak
Finish
- Stain - smoked oak, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Drill
- Sandpaper
- Brush
Cut list
The first 3 of 8 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Large - Top | 560 x 420 x 2222 1/16" x 16 9/16" x 7/8" | White oak |
| B | 2 | Large - Apron | 500 x 60 x 2219 11/16" x 2 3/8" x 7/8" | White oak |
| C | 4 | Large - Leg | 498 x 32 x 3219 5/8" x 1 1/4" x 1 1/4" | White oak |
| +11 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 18 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 18 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

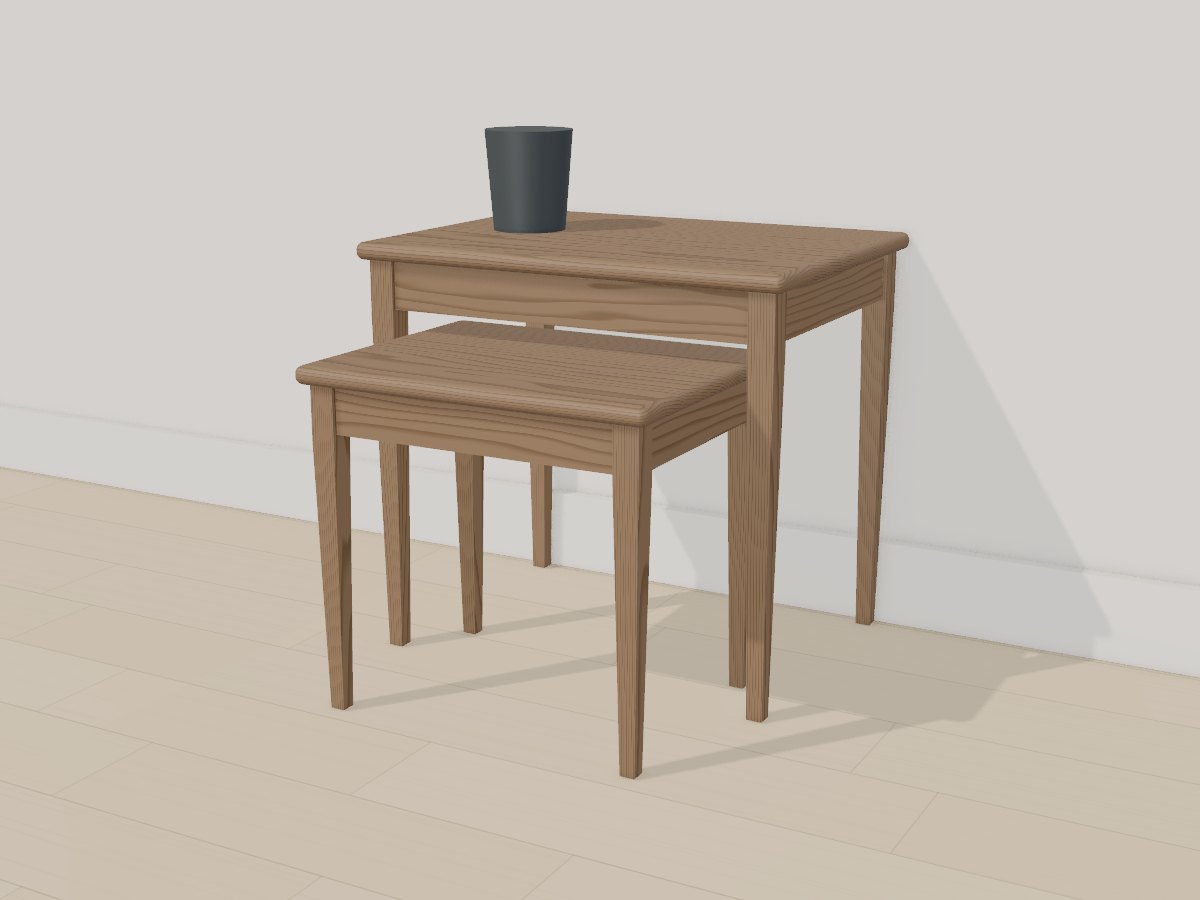

The 3D model
