Red oak charging sofa console

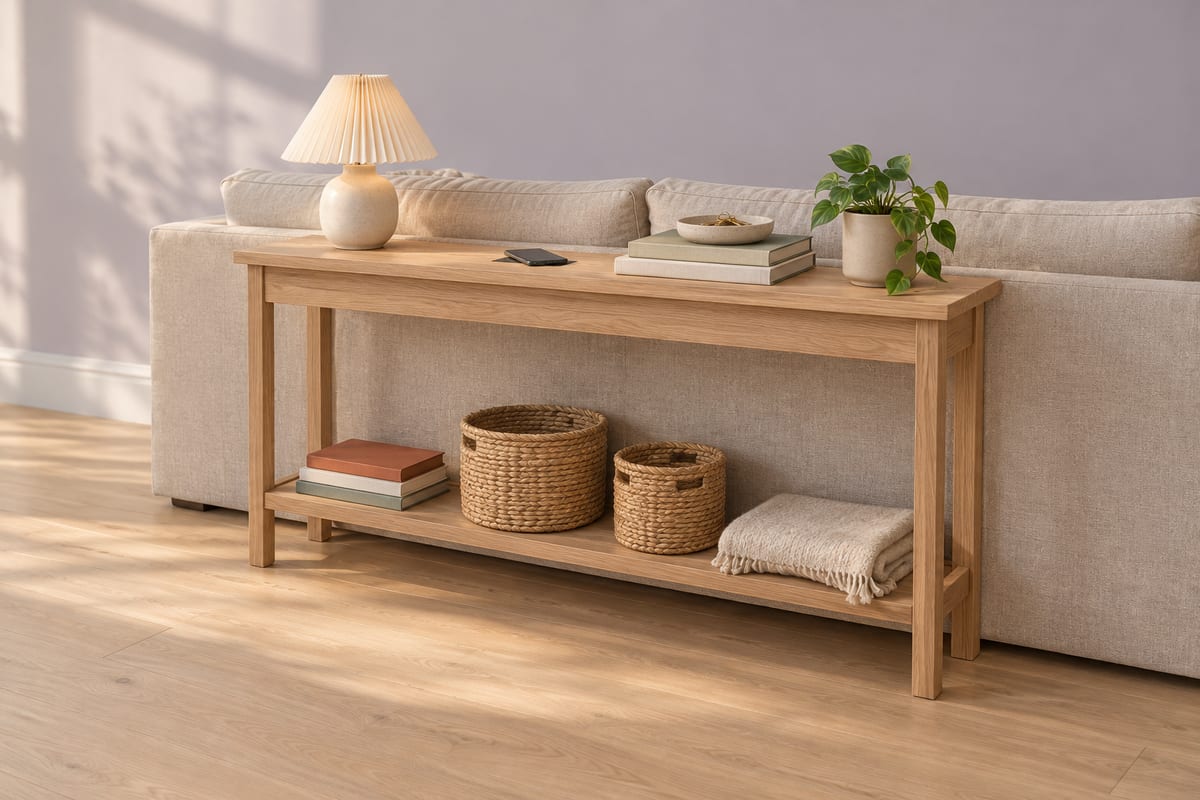

A sofa-back console in honey-toned red oak, only 260mm deep and 720mm high so it tucks behind a sofa floated off the wall: sockets and USB chargers set flush in the top, a hidden wireless pad at one end and a cable tray underneath. It takes the place of side tables and trailing extension leads, and turns the back of the sofa into a lamp table, a drop for phones and a low shelf for baskets.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1600 x 260 x 722 mm63" x 10 1/4" x 28 7/16"

Parts to cut

18

Build steps

25

Boards

6

Solid wood

13.5 bd ft

Weight

52.2 kg115 lb

Materials

• Red oak

Finish

• Finishing oil - Hardwax oil, natural satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Drill
• Dowel jig
• Sandpaper
• Brush

Hardware and fittings

• 1 x Recessed desk power module: two sockets, one USB-A and one USB-C charger
• 1 x Under-desk steel mesh cable tray, 600mm
• 1 x Under-surface wireless phone charger, works through up to 30mm of wood

Cut list

The first 3 of 9 lines, in millimetres (inches below), finished size including joint allowances.

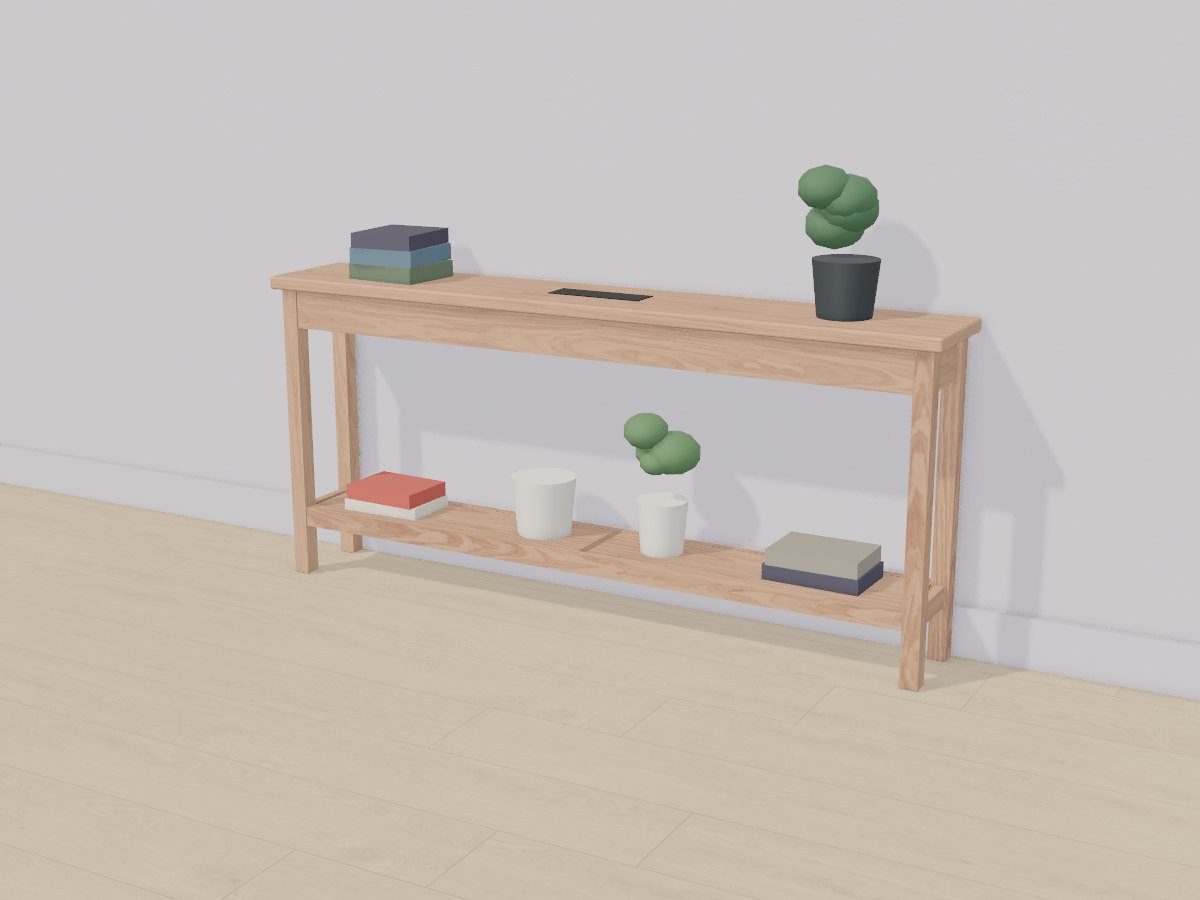

The 3D model
