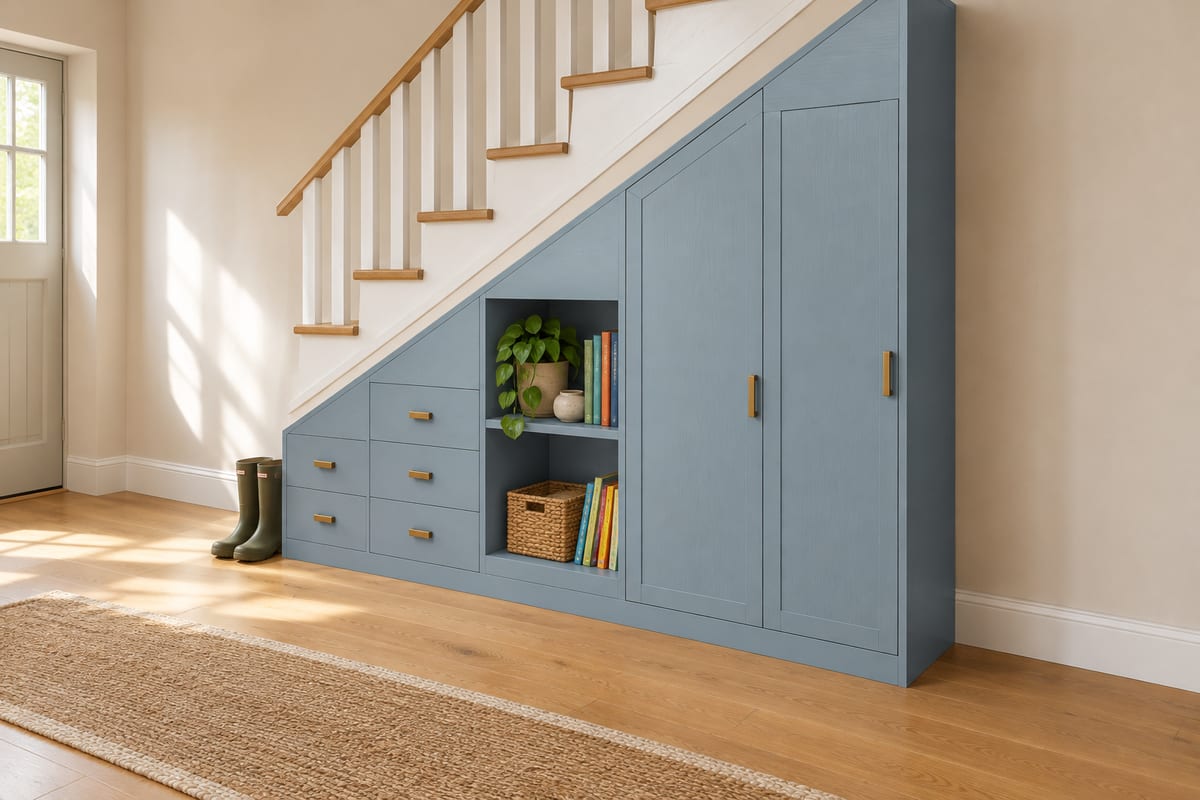

Slate blue under-stair storage
Built-in storage that fills the space under a staircase, stepping up with it: deep drawers at the low end, an open bay for books and baskets, then tall Shaker cupboards for coats and the vacuum, all in slate blue-grey with brass pulls, and painted infill panels cut to the line of the stair.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2710 x 632 x 2447 mm106 11/16" x 24 7/8" x 96 5/16"
- Parts to cut
- 89
- Build steps
- 106
- Sheets
- 12
- Weight
- 265.5 kg585 lb
Materials
- Birch plywood
- MDF
Finish
- Paint - slate blue-grey, satin
- Paint - warm white, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Table saw
- Chisel
- Sandpaper
- Brush
Hardware and fittings
- 10 x Side-mount drawer slide, 550mm
- 5 x Cup pull, 96mm centres, brushed brass
- 7 x Concealed cabinet hinge, full overlay
- 2 x Bar pull, 128mm centres, brushed brass
Cut list
The first 3 of 62 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Bay 5 - Side | 2050 x 576 x 1880 11/16" x 22 11/16" x 11/16" | Birch plywood |
| B | 1 | Bay 5 - Back | 2050 x 450 x 680 11/16" x 17 11/16" x 1/4" | Birch plywood |
| C | 2 | Bay 4 - Side | 1642 x 576 x 1864 5/8" x 22 11/16" x 11/16" | Birch plywood |
| +84 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 89 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 106 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

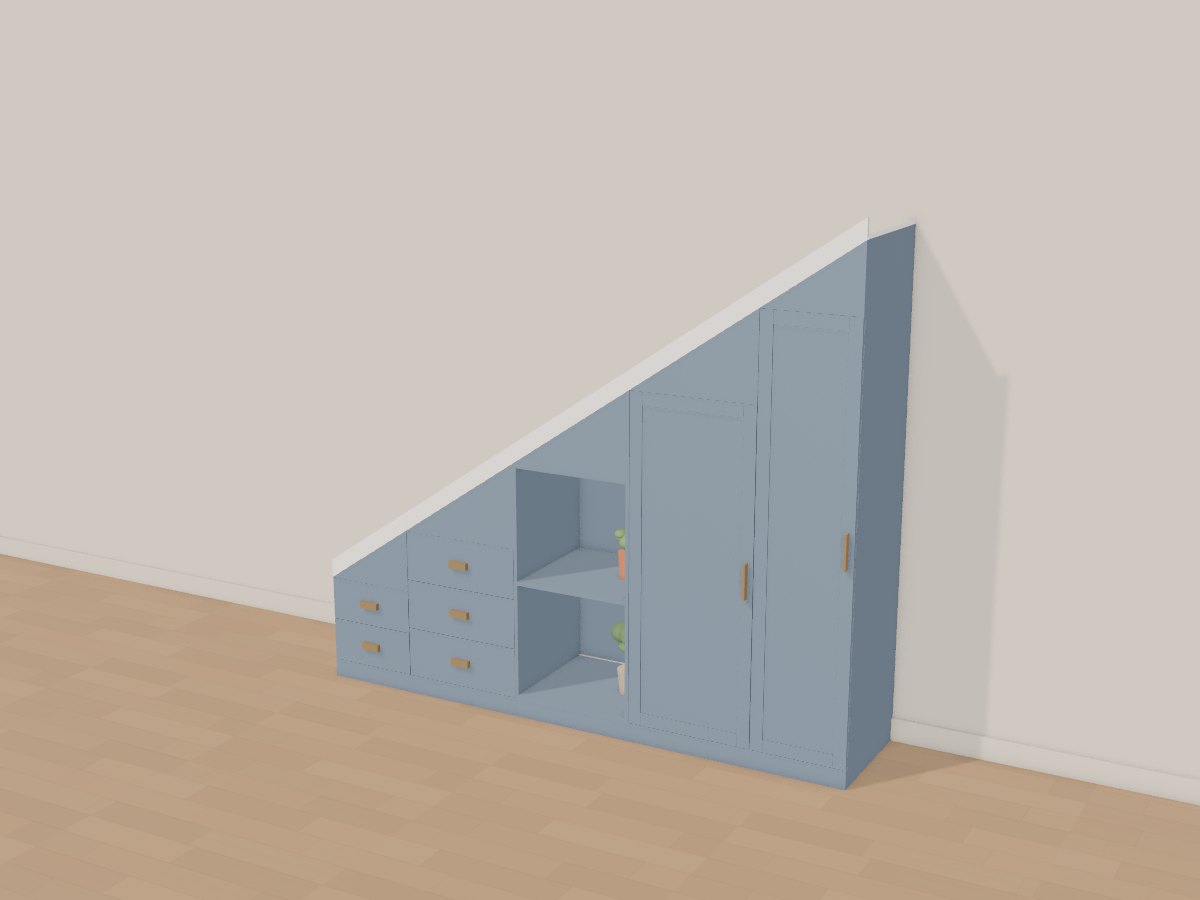

The 3D model
