Oak dog crate console

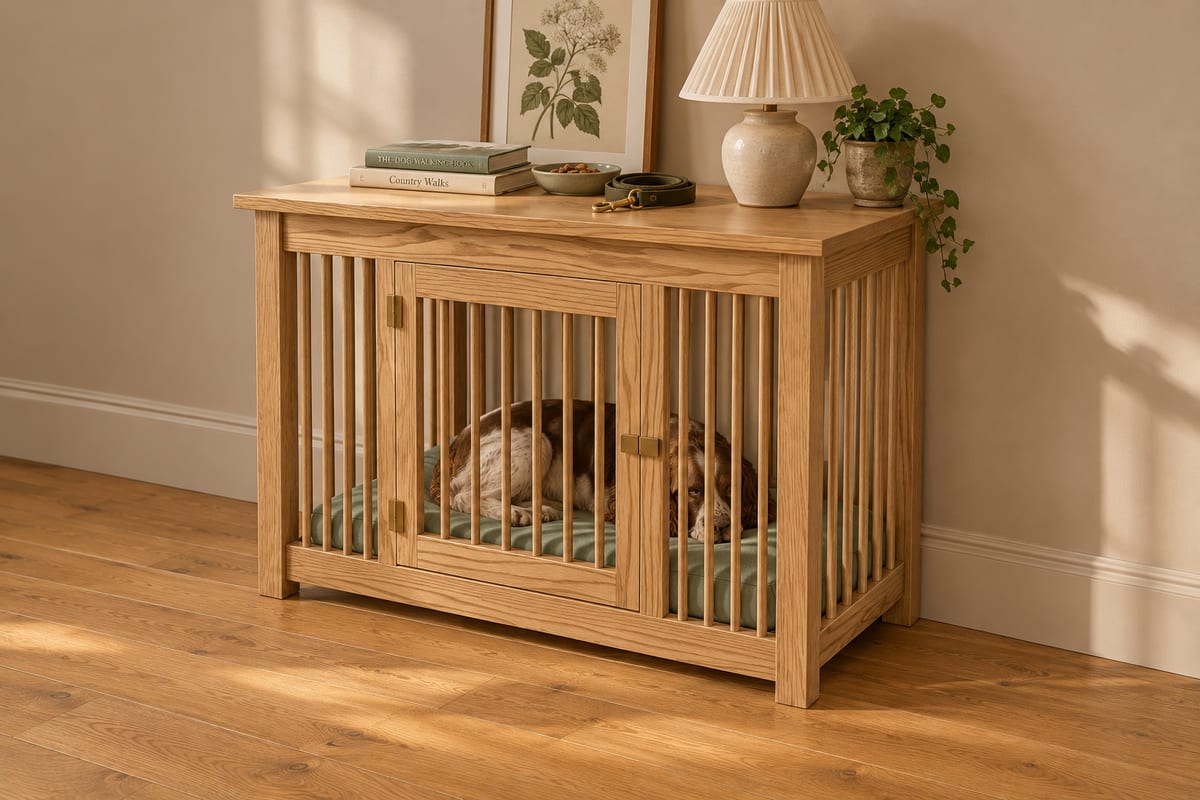

A dog crate that passes for furniture: an oiled white oak console with a generous top for lamps and post, round oak bars on all four sides, a barred door on brass hinges with a brass slide bolt, and a sage linen bed inside.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1100 x 620 x 760 mm43 5/16" x 24 7/16" x 29 15/16"
- Parts to cut
- 60
- Build steps
- 33
- Boards
- 12
- Sheets
- 1
- Solid wood
- 20.2 bd ft
- Weight
- 51.3 kg113 lb
Materials
- White oak
- Birch plywood
Finish
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Drill
- Dowel jig
- Sandpaper
- Brush
Hardware and fittings
- 1 x Rectangular dog bed, 90mm foam with a washable sage linen cover
- 2 x Butt hinge, solid brass, 63mm
- 1 x Barrel slide bolt, solid brass, 75mm
Cut list
The first 3 of 17 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Crate floor | 950 x 528 x 1837 3/8" x 20 13/16" x 11/16" | Birch plywood |
| B | 1 | Top | 1100 x 620 x 3043 5/16" x 24 7/16" x 1 3/16" | White oak |
| C | 2 | Apron | 1000 x 80 x 2239 3/8" x 3 1/8" x 7/8" | White oak |
| +56 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 60 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 33 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

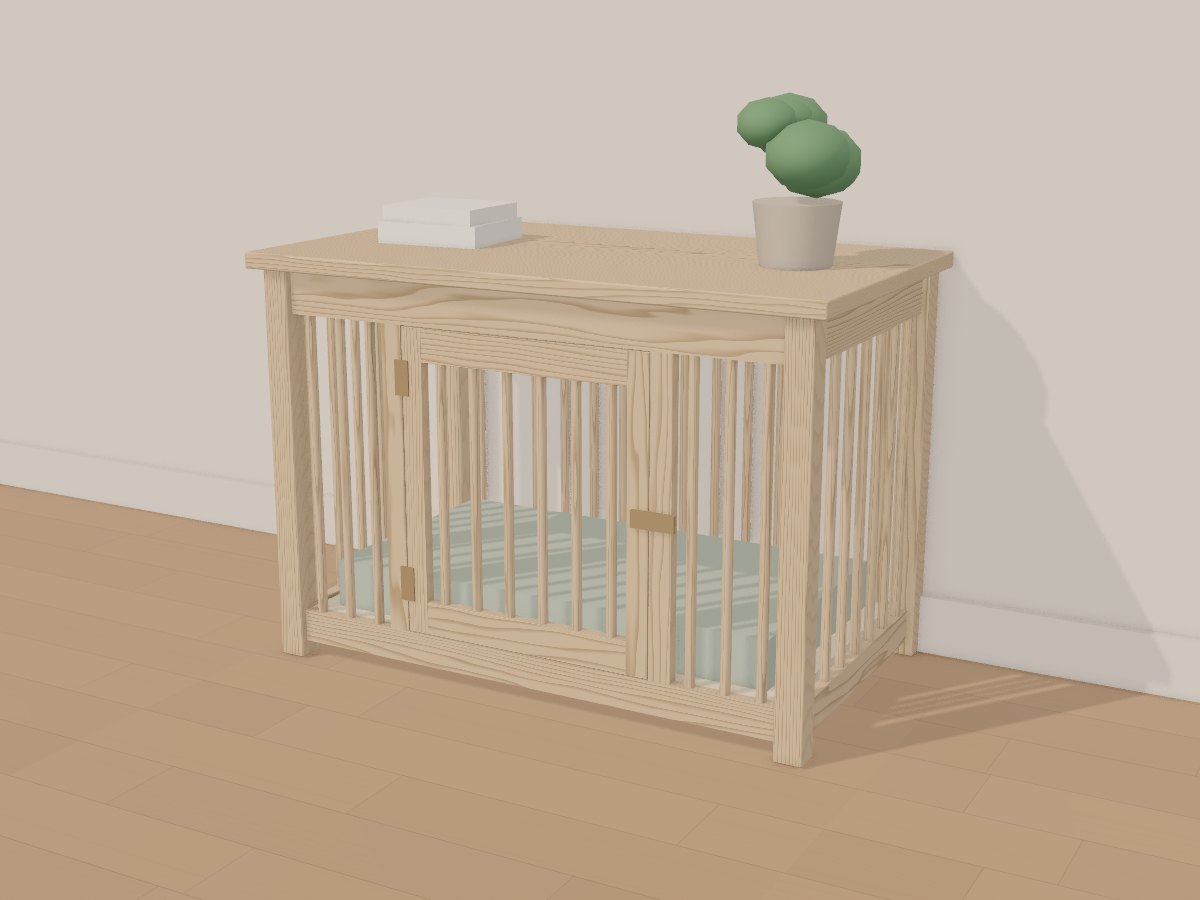

The 3D model
