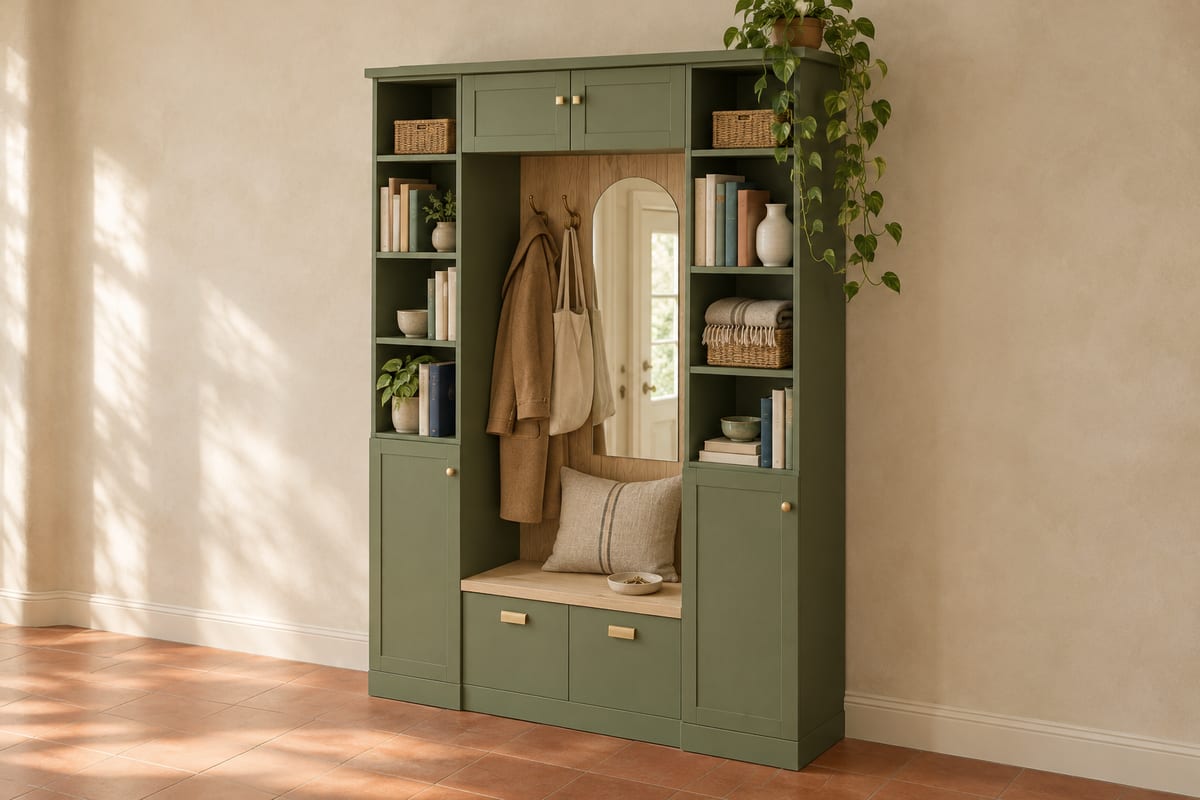

Olive hall tree with arched mirror
A built-in hall tree in olive green: a white oak bench over two drawers, an arched mirror set into an oiled oak back between brass coat hooks, tall cupboards and open cubbies either side, and a little hat cupboard under the cornice.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1540 x 451 x 2275 mm60 5/8" x 17 3/4" x 89 9/16"
- Parts to cut
- 82
- Build steps
- 85
- Boards
- 4
- Sheets
- 8
- Solid wood
- 19.8 bd ft
- Weight
- 174.3 kg384 lb
Materials
- Birch plywood
- MDF
- White oak
- Poplar (paint grade)
Finish
- Finishing oil - Hardwax oil, matt
- Paint - olive green, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Table saw
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Mirror glass, 6mm, cut to an arch with a semicircular top
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 2 x Double coat hook, solid brass, unlacquered
- 8 x Concealed cabinet hinge, full overlay
- 4 x Round knob, 30mm, brushed brass
- 4 x Side-mount drawer slide, 350mm
- 2 x Cup pull, 96mm centres, brushed brass
Cut list
The first 3 of 63 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Flank left up - Side | 1300 x 414 x 1851 3/16" x 16 5/16" x 11/16" | Birch plywood |
| B | 1 | Flank left up - Back | 1300 x 380 x 651 3/16" x 14 15/16" x 1/4" | Birch plywood |
| C | 2 | Flank right up - Side | 1300 x 414 x 1851 3/16" x 16 5/16" x 11/16" | Birch plywood |
| +77 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 82 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 85 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

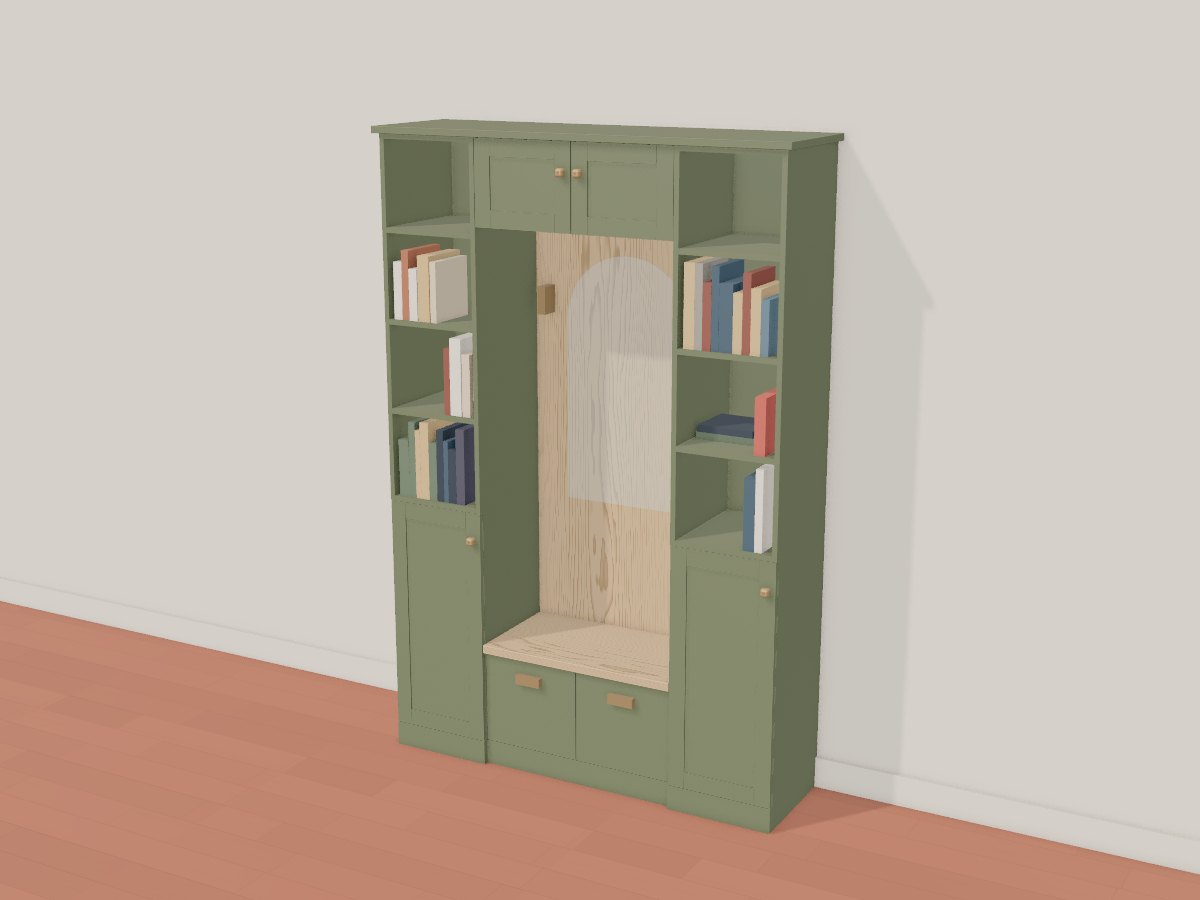

The 3D model
