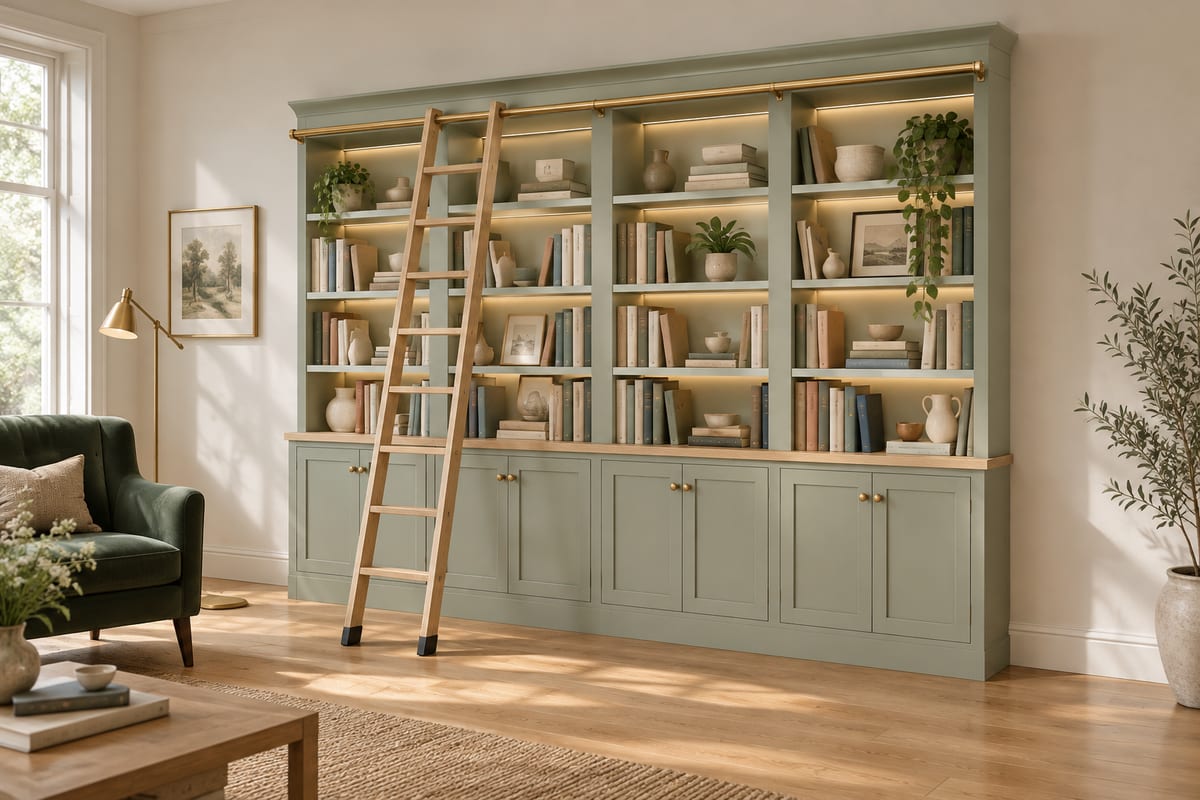

Sage library with rolling ladder

A wall of sage bookcases to the ceiling over shaker cupboards, with an oiled white oak ledge between them. A white oak library ladder rolls along a brass rail on a solid rail board painted to match, with brackets close enough to hold a person without the rail bowing. Warm LED strips light every shelf.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3600 x 1127 x 2550 mm141 3/4" x 44 3/8" x 100 3/8"

Parts to cut

142

Build steps

79

Boards

15

Sheets

17

Solid wood

47.3 bd ft

Weight

452.3 kg997 lb

Materials

• Birch plywood
• Poplar (paint grade)
• White oak

Finish

• Finishing oil - Hardwax oil, matt
• Paint - sage, eggshell

Tools

• Saw
• Square
• Tape
• Drill
• Dowel jig
• Clamps
• Chisel
• Router
• Table saw
• Pocket-hole jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 16 x Concealed face-frame hinge, partial overlay
• 8 x Round knob, 30mm, brushed brass
• 4 x Plug-in LED strip kit, 12V, warm white 2700K
• 1 x Cove crown moulding, 100mm
• 1 x Library ladder rail kit, unlacquered brass, 32mm rail
• 1 x Library ladder, white oak, 8 ft (2440mm), 410mm wide
• 1 x Library ladder hooks and floor wheels, unlacquered brass

Cut list

The first 3 of 103 lines, in millimetres (inches below), finished size including joint allowances.

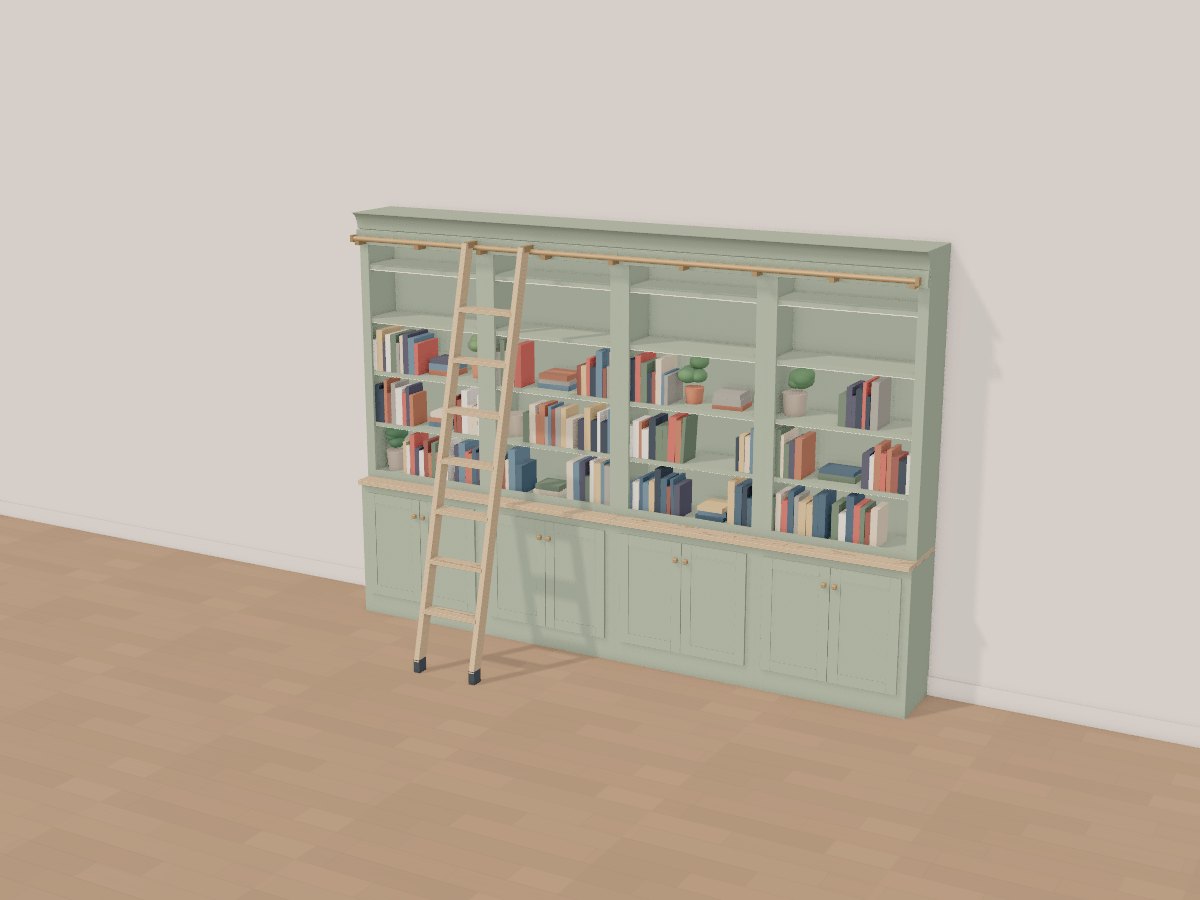

The 3D model
