Oak coffee and wine bar

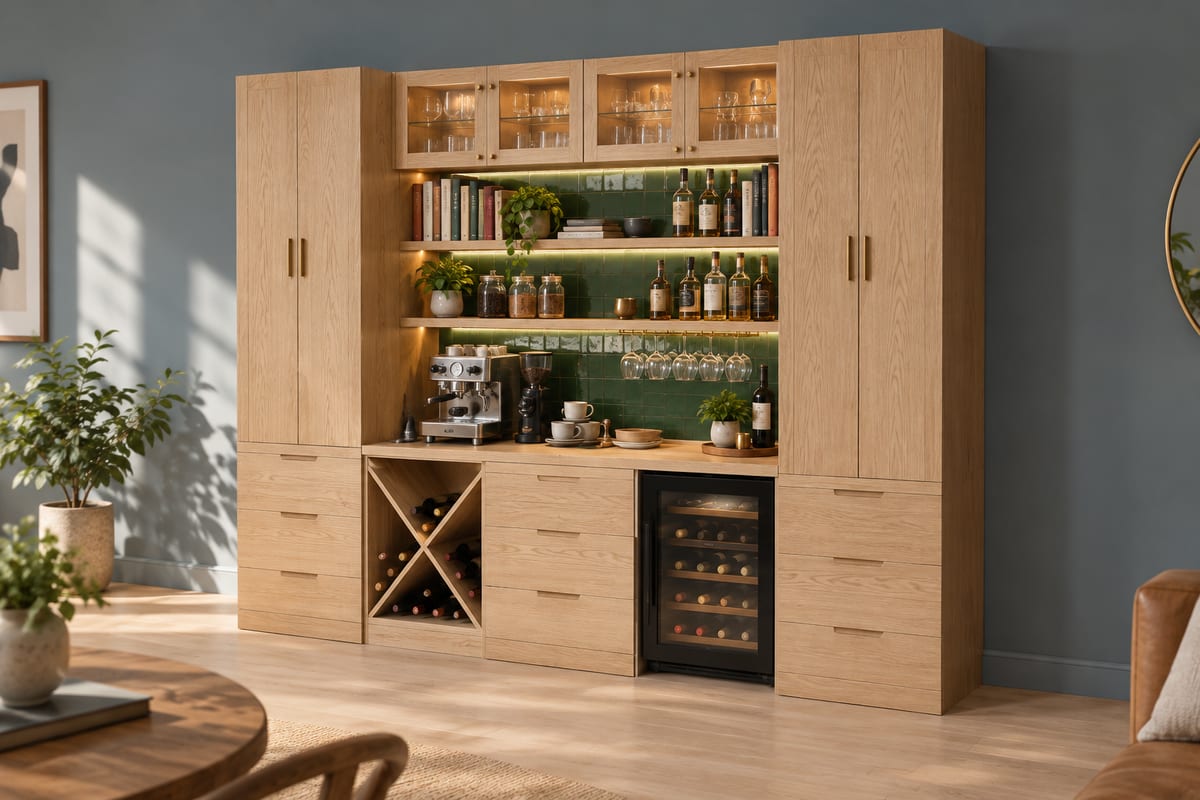

A built-in coffee and wine bar in oiled white oak, set between two tall pantry cupboards. Under the counter an X-cubby holds a dozen bottles beside drawers for coffee and a glass-door wine fridge. Above, a deep green tiled niche with two floating oak shelves, brass stemware racks and warm LED strips, under glass-fronted cabinets for the glasses.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3000 x 635 x 2430 mm118 1/8" x 25" x 95 11/16"

Parts to cut

137

Build steps

140

Boards

42

Sheets

6

Solid wood

187.6 bd ft

Weight

2648.5 kg5839 lb

Materials

• White oak
• Birch plywood

Finish

• Finishing oil - Hardwax oil, matt

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Chisel
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Glazed zellige-style wall tile, deep green, 60 x 240mm
• 6 x Concealed floating-shelf bracket rod, M12, 200mm
• 1 x LED strip, 2700K, 12V, in an aluminium channel with a frosted diffuser
• 2 x Under-shelf stemware rack, 3 rows, brushed brass
• 1 x 12V dimmable LED driver, 36W
• 1 x Under-counter beverage fridge, 600mm, glass door, front-vented
• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 12 x Side-mount drawer slide, 550mm
• 13 x Bar pull, 128mm centres, brushed brass
• 20 x Concealed cabinet hinge, full overlay
• 6 x Side-mount drawer slide, 500mm
• 2 x Plug-in LED strip kit, 12V, warm white 2700K
• 4 x Toughened glass panel, 4mm
• 4 x Round knob, 30mm, brushed brass

Cut list

The first 3 of 100 lines, in millimetres (inches below), finished size including joint allowances.

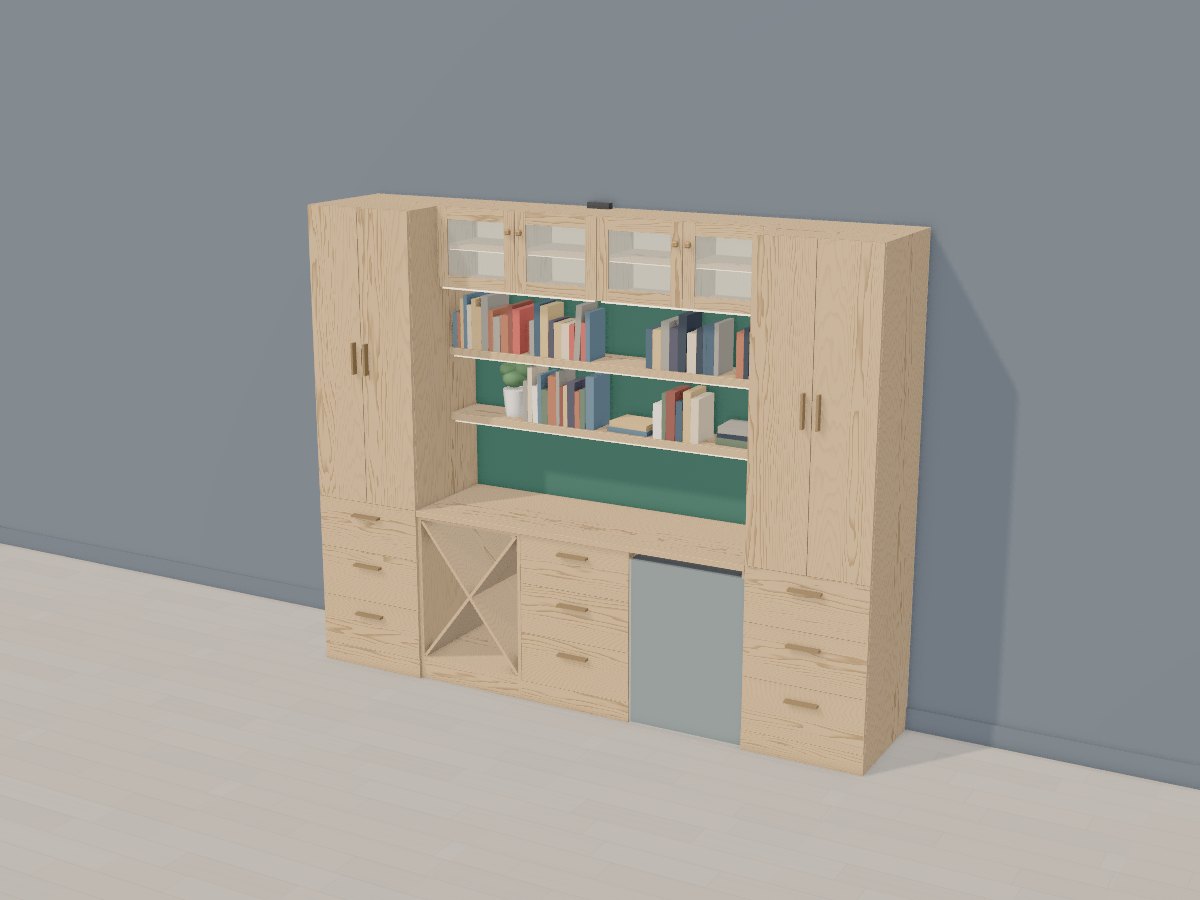

The 3D model
