Chocolate music room wall

A music room wall drenched in chocolate brown: two towers of LP-sized cubes for a record collection, lit shelves above them, and between them a walnut-topped console with an open amplifier bay and drawers for pedals and cables. Over the console, a walnut rail carries three brass guitar hangers, and a slim ledge shows the record that is playing.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

3800 x 511 x 2500 mm149 5/8" x 20 1/8" x 98 7/16"

Parts to cut

87

Build steps

83

Boards

5

Sheets

13

Solid wood

13.9 bd ft

Weight

309.7 kg683 lb

Materials

• Birch plywood
• Black walnut
• MDF

Finish

• Finishing oil - Hardwax oil, satin
• Paint - chocolate brown, eggshell

Tools

• Saw
• Square
• Tape
• Router
• Clamps
• Drill
• Table saw
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 3 x Brass guitar wall hanger with padded yoke
• 2 x Anti-tip furniture wall bracket, steel, with stud screws
• 2 x Plug-in LED strip kit, 12V, warm white 2700K
• 6 x Side-mount drawer slide, 400mm
• 3 x Round knob, 30mm, brushed brass

Cut list

The first 3 of 59 lines, in millimetres (inches below), finished size including joint allowances.

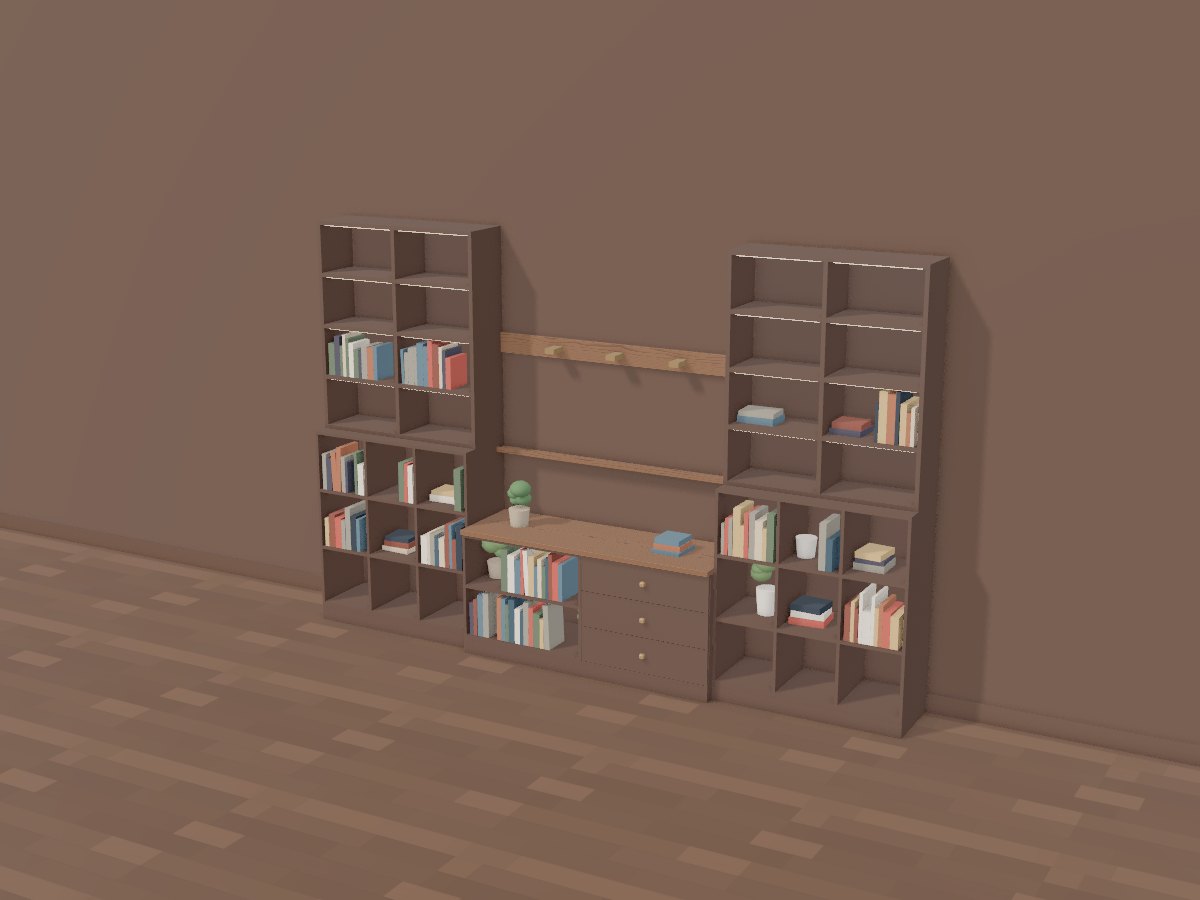

The 3D model
