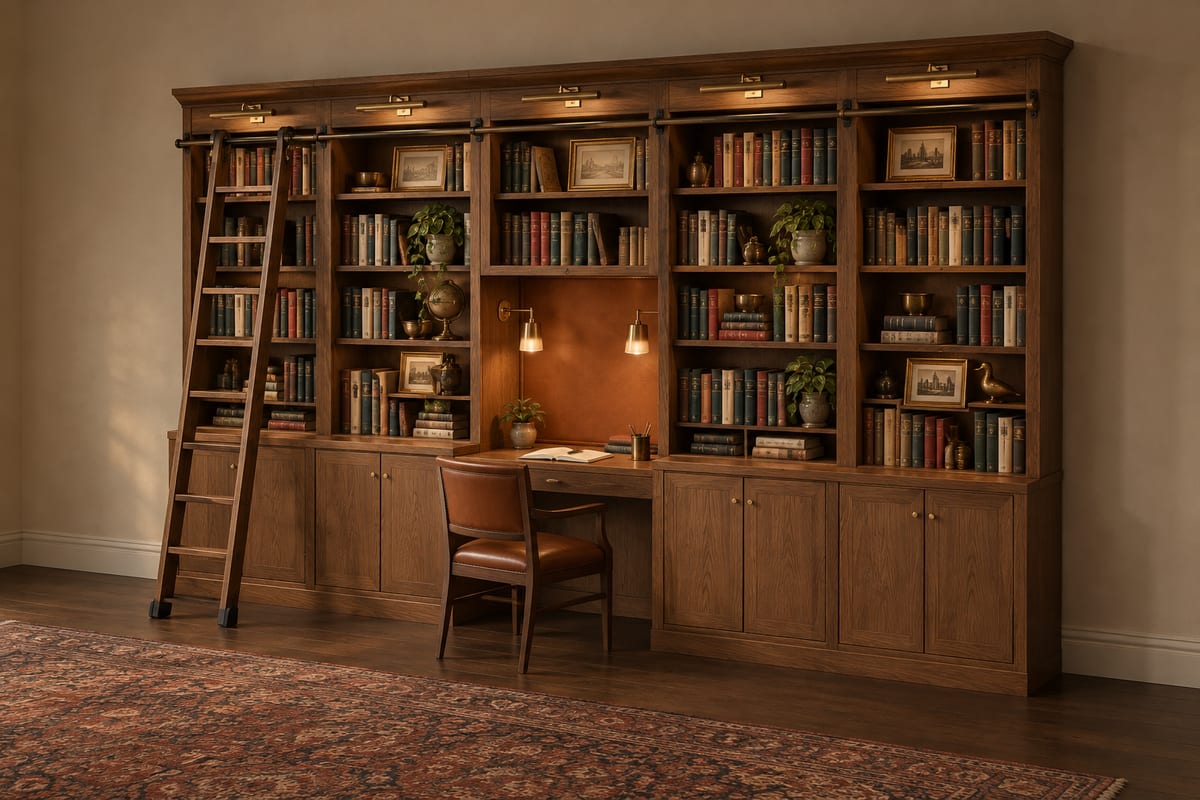

Walnut library with a desk niche

A four-and-a-half-metre library wall in solid oiled walnut, with frame-and-panel doors and face frames, a cove crown and a brass picture light over every bay. In the middle a writing desk is tucked into a niche lined in cognac leather, between two brass reading lamps, and a walnut ladder rolls the whole length on a black rail.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

4500 x 1039 x 2700 mm177 3/16" x 40 7/8" x 106 5/16"

Parts to cut

185

Build steps

138

Boards

70

Sheets

8

Solid wood

291 bd ft

Weight

570 kg1257 lb

Materials

• Black walnut
• Birch plywood

Finish

• Finishing oil - Hardwax oil, satin
• Paint - cognac leather, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Pocket-hole jig
• Dowel jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Cognac vegetable-tanned leather, for wrapping the niche back panel
• 16 x Concealed face-frame hinge, partial overlay
• 9 x Round knob, 30mm, brushed brass
• 4 x Plug-in picture light, brass, 450mm
• 2 x Side-mount drawer slide, 450mm
• 2 x Plug-in picture light, brass, 300mm
• 1 x Cove crown moulding, 110mm
• 1 x Library ladder rail kit, matt black, 32mm rail
• 1 x Library ladder, black walnut, 8 ft (2440mm), 410mm wide
• 1 x Library ladder hooks and floor wheels, matt black
• 2 x Plug-in swing-arm reading light, brushed brass

Cut list

The first 3 of 131 lines, in millimetres (inches below), finished size including joint allowances.

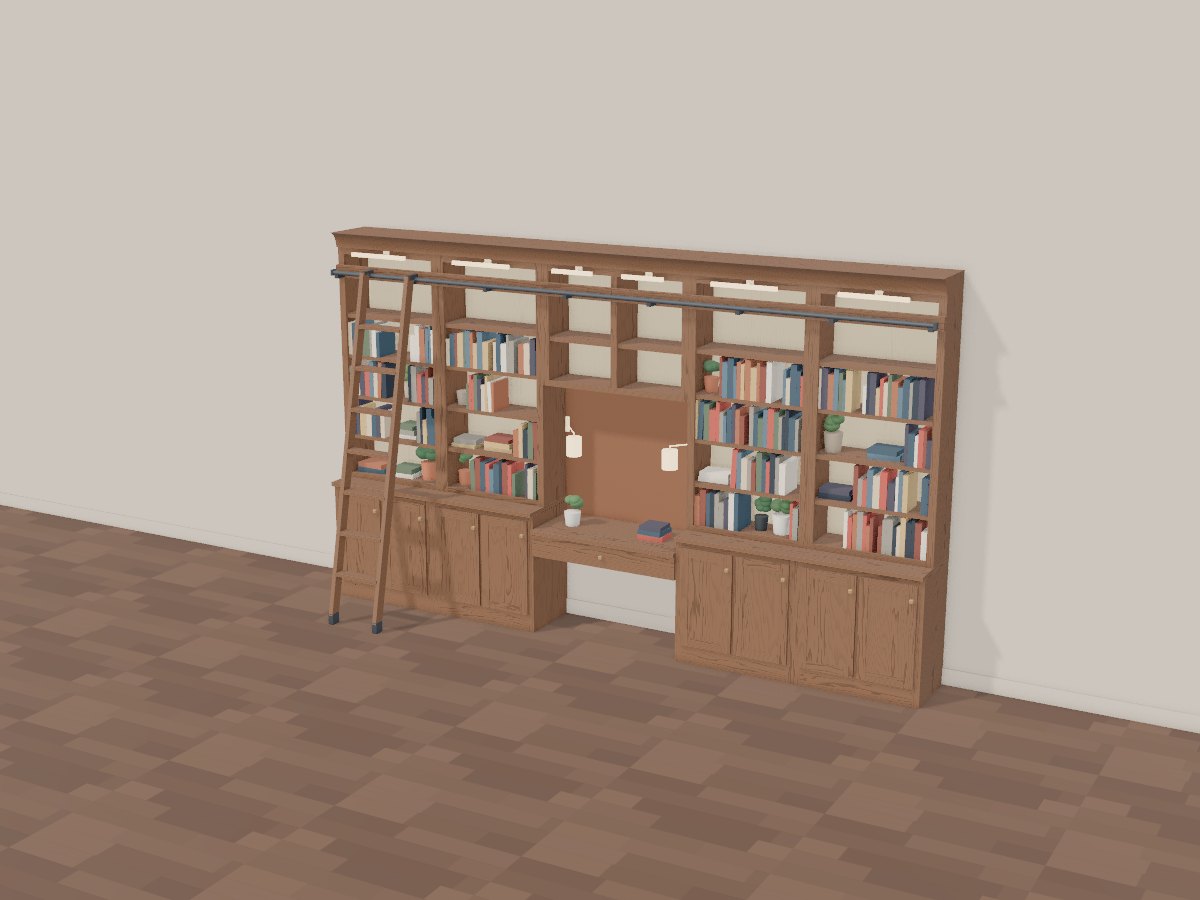

The 3D model
